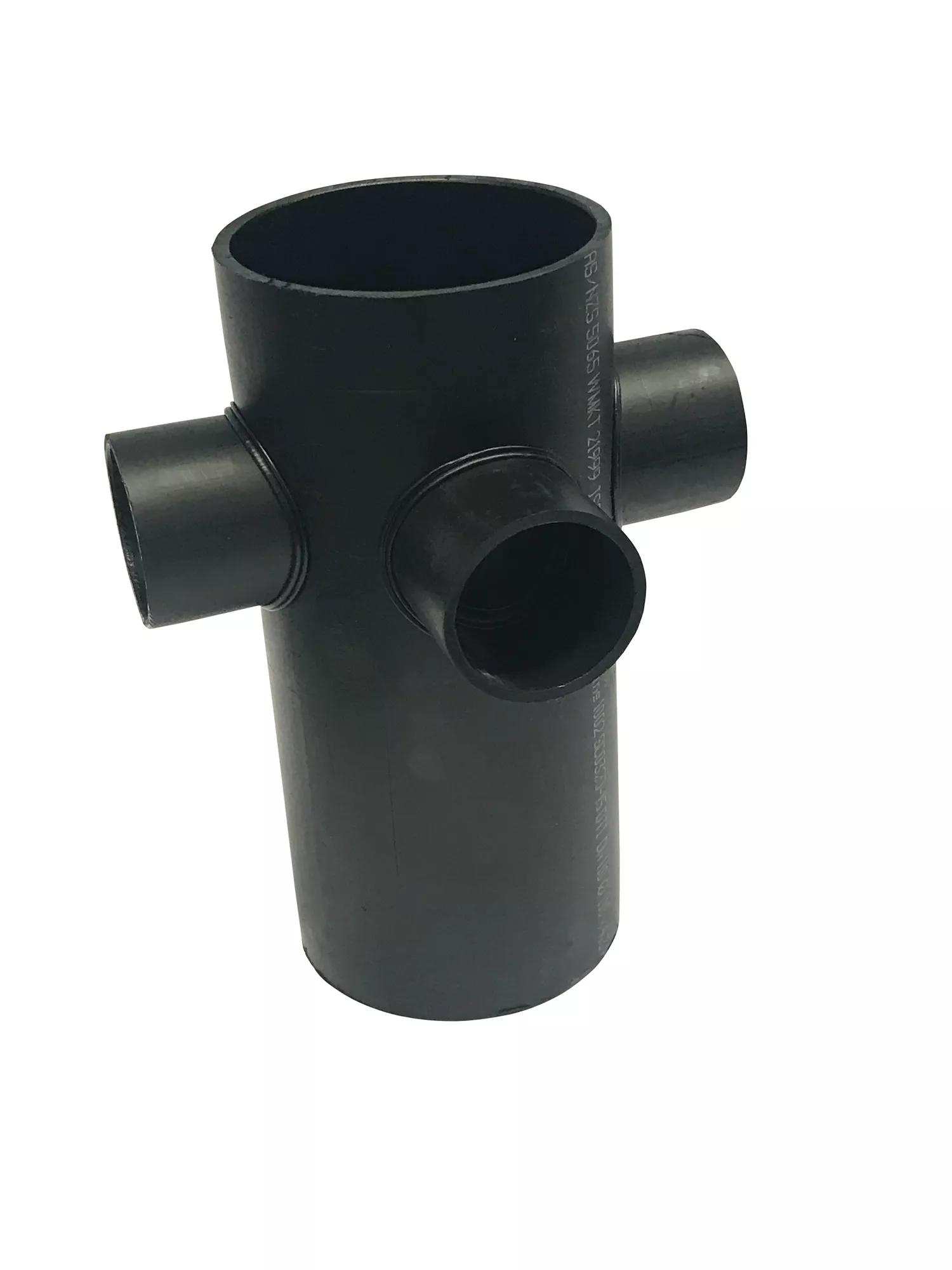

4 Exits Branch 90° 110x56
Product Identifiers
Catalog Code3075823
EAN Number8018464206465
SAP number3075823
| Label | Value |
|---|---|
| ETIM Classification | EC010367 |
| Material | Polyethylene (PE) |
| Material quality | PE-80 |
| Surface protection | Untreated |
| Surface treatment | Untreated |
| Model | Other |
| Multi-part | Yes |
| Reducing | Yes |
| System-specific | Yes |
| Nominal diameter connection 1 | Other |
| Outer pipe diameter connection 1 | 110mm |
| Wall thickness, connection 1 | 4.2mm |
| Connection 1 | Welding connection |
| Nominal diameter connection 2 | Other |
| Outer pipe diameter connection 2 | 110mm |
| Wall thickness, connection 2 | 3mm |
| Connection 2 | Welding connection |
| Nominal diameter connection 3 | Other |
| Outer pipe diameter connection 3 | 56mm |
| Wall thickness, connection 3 | 3mm |
| Connection 3 | Welding connection |
| Nominal diameter connection 4 | Other |
| Outer pipe diameter connection 4 | 56mm |
| Wall thickness, connection 4 | 3mm |
| Connection 4 | Welding connection |
| Nominal diameter connection 5 | Other |
| Outer pipe diameter connection 5 | 56mm |
| Wall thickness, connection 5 | 3mm |
| Connection 5 | Welding connection |
| Nominal diameter connection 6 | Other |
| Outer pipe diameter connection 6 | 56mm |
| Wall thickness, connection 6 | 4.2mm |
| Connection 6 | Welding connection |
| Contour code | Other |
| Length of connection 1 | 240mm |
| Working length connection 1 | 0mm |
| Length of connection 2 | 120mm |
| Working length connection 2 | 0mm |
| Length of connection 3 | 120mm |
| Working length connection 3 | 0mm |
| Length of connection 4 | 120mm |
| Working length connection 4 | 0mm |
| Length of connection 5 | 120mm |
| Working length connection 5 | 0mm |
| Length of connection 6 | 240mm |
| Working length connection 6 | 0mm |
| Max. operating pressure at 20 °C | 3bar |
| Angle, connection 3-4 | 90° |
| Angle, connection 4-5 | 90° |
| Angle, connection 5-6 | 90° |
| Ring stiffness class | Other |
| Standard Dimension Ratio (SDR) | 35.0000 |
| With sealing rings/gaskets | Yes |
| With buffer stud | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
