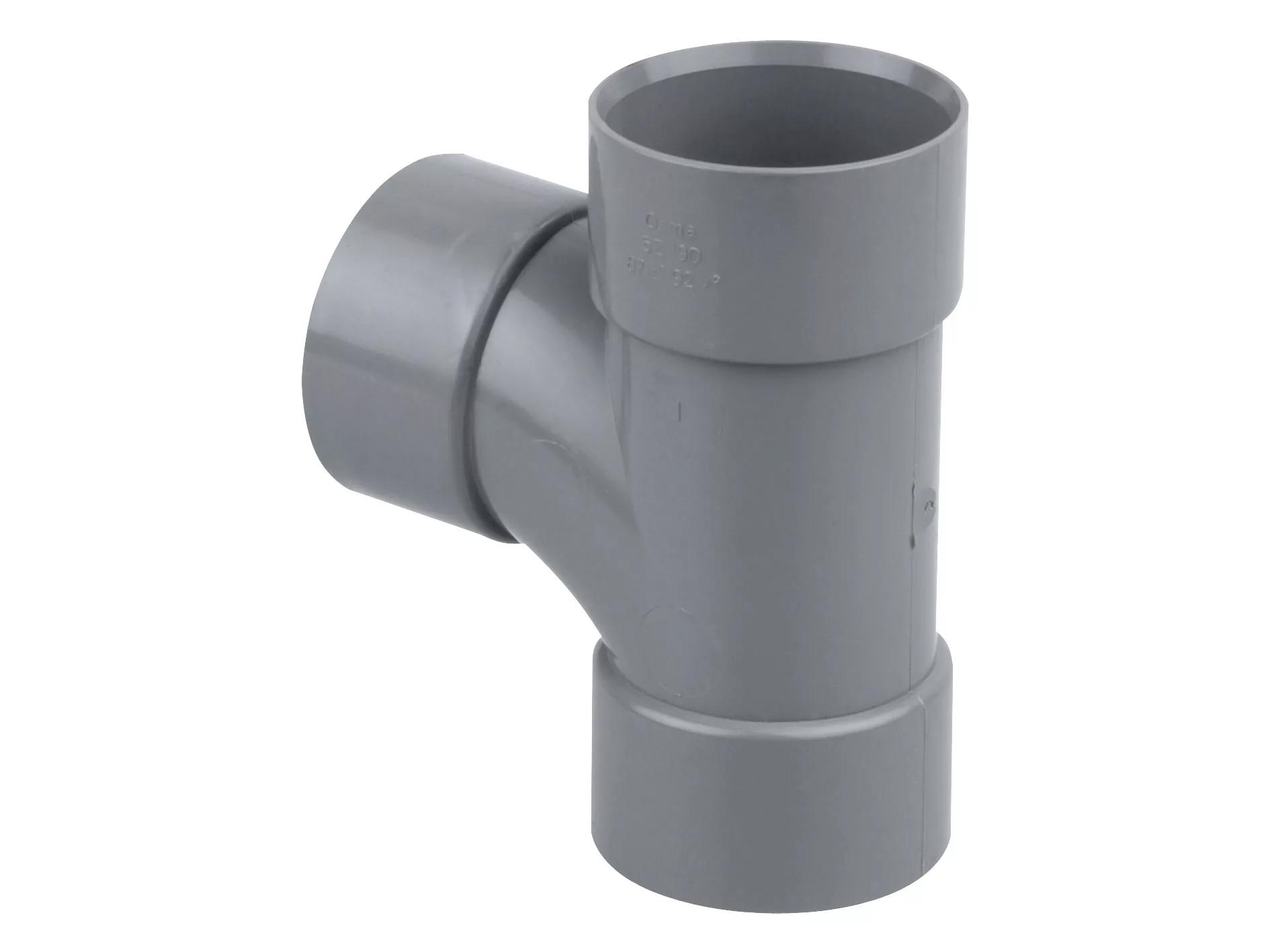

OsmaW ABS Tee 90° GY 50x50
Product Identifiers
Catalog Code2Z190G
EAN Number5011479110010
SAP number3032417
Commercial
| Label | Value |
|---|---|
| Product Shape | Tee |
| Label | Value |
|---|---|
| ETIM Classification | EC003025 |
| Material connection 1 | ABS |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | ABS |
| Material quality connection 2 | Other |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Material connection 3 | ABS |
| Material quality connection 3 | Other |
| Surface protection connection 3 | Untreated |
| Surface treatment connection 3 | Untreated |
| Model | T-piece |
| Angle | 87.5° |
| Reducing | No |
| Multi-part | No |
| System-specific | No |
| Nominal diameter connection 1 | DN 50 |
| Outer pipe diameter connection 1 | 56.1mm |
| Wall thickness, connection 1 | 2.4mm |
| Connection 1 | Plastic welded end |
| Nominal diameter connection 2 | DN 50 |
| Outer pipe diameter connection 2 | 56.1mm |
| Wall thickness, connection 2 | 2.4mm |
| Connection 2 | Plastic welded end |
| Nominal diameter connection 3 | DN 50 |
| Outer pipe diameter connection 3 | 56.1mm |
| Wall thickness, connection 3 | 2.4mm |
| Connection 3 | Plastic welded end |
| Main colour fitting | Grey |
| Length of connection 1 | 32mm |
| Working length connection 1 | 32mm |
| Length of connection 2 | 32mm |
| Working length connection 2 | 32mm |
| Length of connection 3 | 32mm |
| Working length connection 3 | 32mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Max. operating pressure at max. medium temperature | 0bar |
| Max. operating pressure at 20 °C | 0bar |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | No |
| With thermal insulation | No |
| Capped | No |
| Zeta value branch fluent separation according to DVGW W 575 | 0.0000 |
| Zeta value gangway current separation according to DVGW W 575 | 0.0000 |
| Zeta value counter current separation according to DVGW W 575 | 0.0000 |
| Zeta value branch merging flow according to DVGW W 575 | 0.0000 |
| Zeta value passage merging flow according to DVGW W 575 | 0.0000 |
| Zeta value counter merging flow according to DVGW W 575 | 0.0000 |
