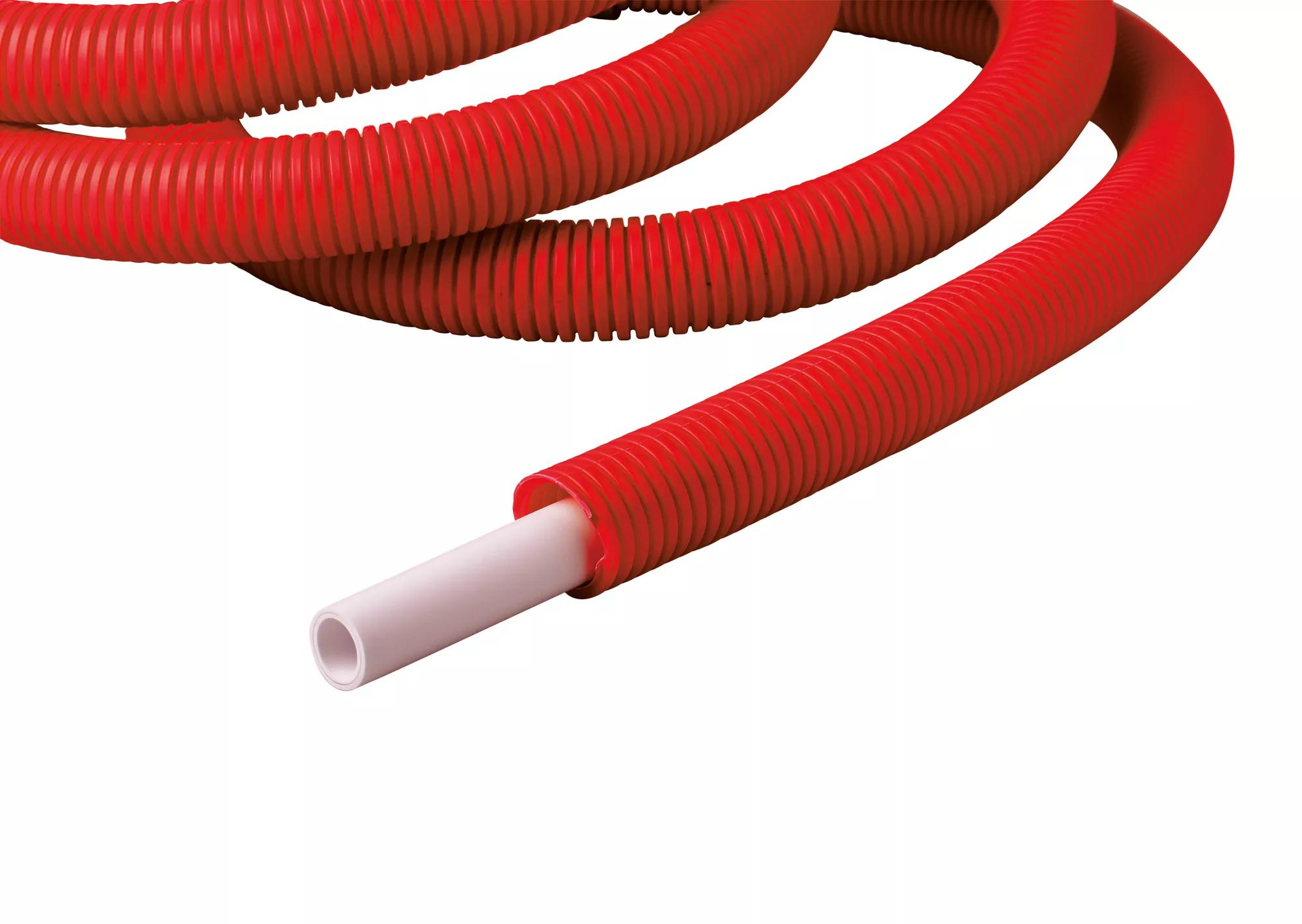

Hep2O Pb Pipe RD Conduit 22 Barrier L=50
| 1 pallet | 10 pieces |
|---|
Product Identifiers
Catalog CodeHXXC5022 RD
EAN Number5027888228437
SAP number4013650
| 1 pallet | 10 pieces |
|---|
| Label | Value |
|---|---|
Diffusion-proof | No |
Nominal diameter | DN 20 |
With thermal insulation | No |
Certified according to SVGW for water | No |
Min. bending radius | 176mm |
Expansion coefficient | 0.13mm/(m⋅K) |
ETIM Classification | EC010882 |
Max. operating pressure at max. medium temperature | 6bar |
Lambda value | 0.22W/(m⋅K) |
Type approval according to BBR/EKS | No |
Flexible | No |
Colour of coding stripe on mantle pipe | Other |
Capped | No |
Max. operating pressure at 20 °C | 0bar |
Connection 1 | Tube end |
Insert length connection 1 | 0mm |
Chamfered | No |
Insert length connection 2 | 0mm |
Material | Polybutylene (PB) |
Outer pipe diameter | 22mm |
With heating cable | No |
Colour of thermal insulation | Other |
Wall roughness | 0.007mm |
Connection 2 | Tube end |
Thickness of thermal insulation | 0mm |
Water content | 0l/m |
Colour mantle pipe | Other |
Article compression class | Pressureless |
Pipe colour | Red |
Certified according to SVGW for gas | No |
Outer diameter thermal insulation | 0mm |
Medium temperature (continuous) | 0 |
Outer diameter mantle pipe | 0mm |
Max. medium temperature (momentarily) | 0°C |
With mantle pipe | No |
Min. bending radius without tools | 176mm |
Material quality | Other |
Wall thickness | 2.15mm |
