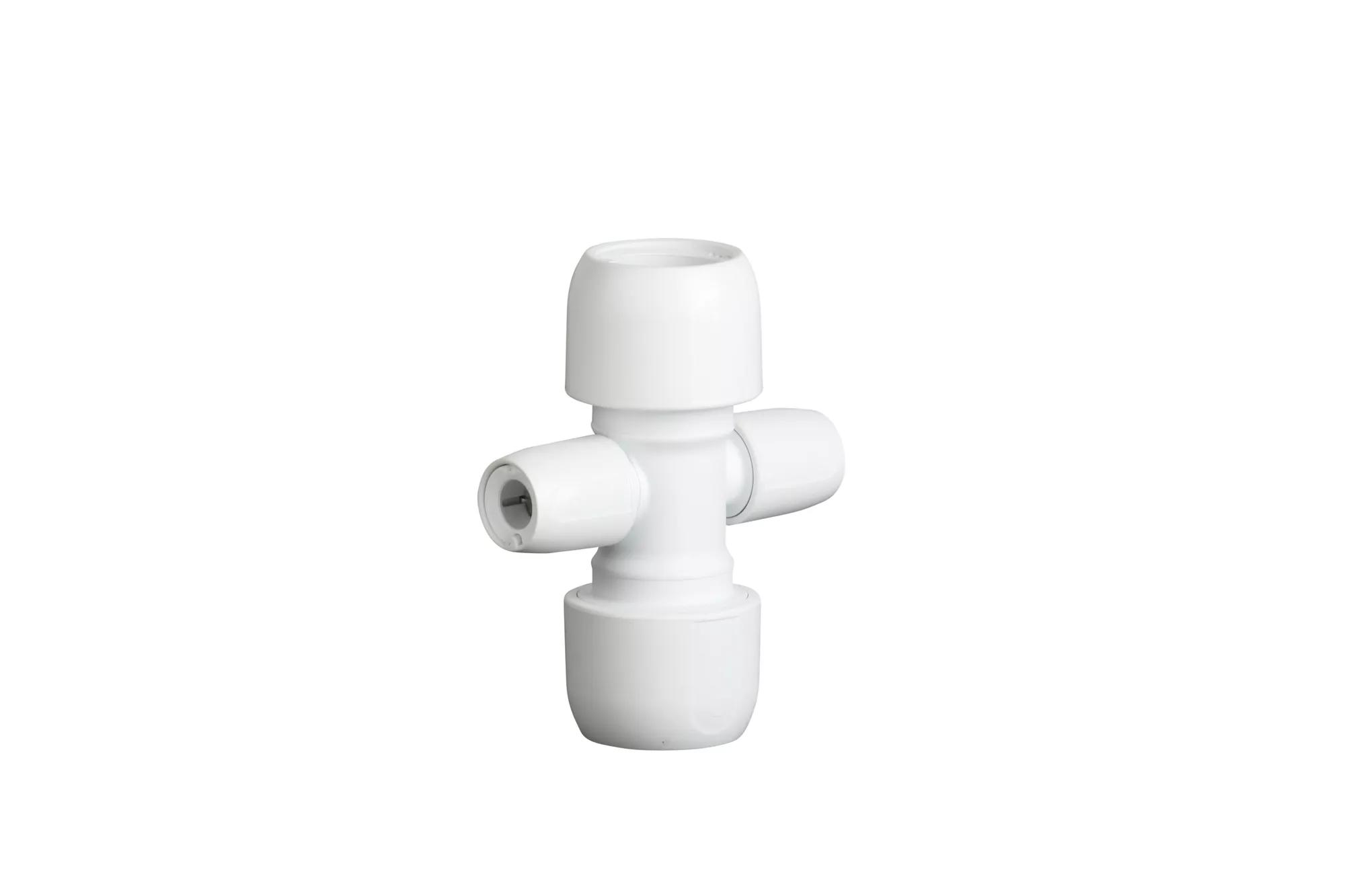

Hep2O 2Port Manifold 22x10 PF/PF OppSide
| 1 bag | 5 pieces |
|---|---|
| 1 box | 75 pieces |
Product Identifiers
Catalog CodeHX92B/22W
EAN Number5027888268044
SAP number3030659
| 1 bag | 5 pieces |
|---|---|
| 1 box | 75 pieces |
| Label | Value |
|---|---|
ETIM Classification | EC003885 |
Suitable for tap water | Yes |
Suitable for central heating water | Yes |
Suitable for cooling water | Yes |
Suitable for compressed air | No |
Suitable for glycol | No |
Mounting method | Built-in |
Model | Other |
Material | Plastic |
Material quality | Polybutylene (PB) |
Surface protection | Untreated |
Nominal diameter connection 1 | Other |
Shape | Throughflow with straight branches |
Outer pipe diameter connection 1 | 22mm |
Connection 1 | Other |
Nominal diameter connection 2 | DN 18 |
Outer pipe diameter connection 2 | 22mm |
Connection 2 | Other |
Number of branches | 2.0000 |
Number of branching directions | 2.0000 |
Outer pipe diameter branches | 10mm |
Connection branches | Insert (push coupling) |
Article compression class | Other |
Max. medium temperature (continuous) | 95°C |
Zeta value | 0.0000 |
System-specific | Yes |
With filling- and draining valve | No |
With shut off valve | No |
With de-aeration | No |
With wall-mounting bracket | No |
With mounting material | No |
With legs | No |
With insulation | No |
Width | 100mm |
Height | 84mm |
Depth | 41mm |
Length of connection 1 | 0mm |
Working length connection 1 | 0mm |
Length of connection 2 | 0mm |
Working length connection 2 | 0mm |
Branch working length | 0mm |
Venturi nozzle | None |
