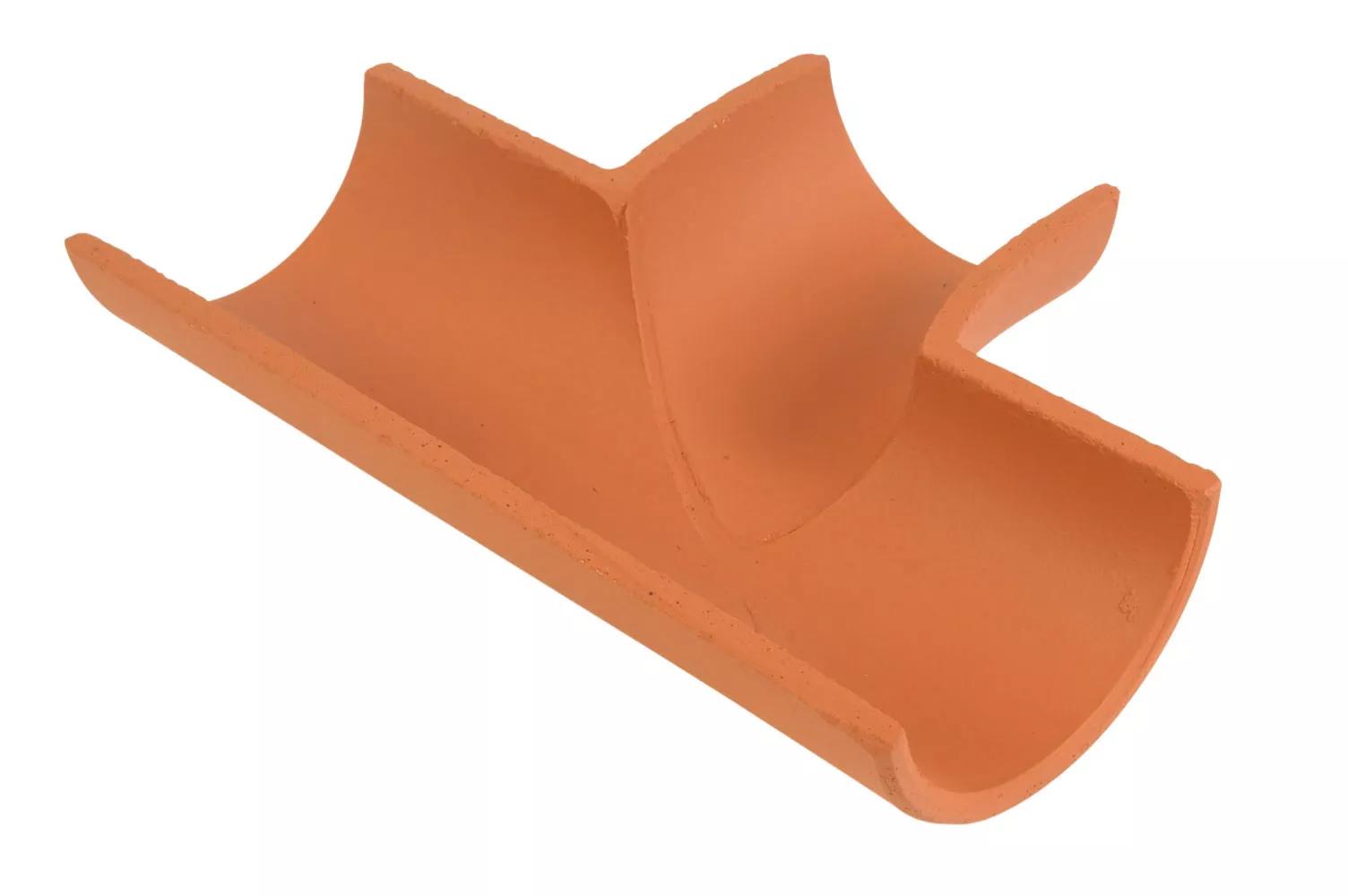

Hepworth Clay Chan Sq Junc RH 100x100 PL

  • 1 bag
    168 pieces
Product Identifiers
Catalog CodeCJP2/1R
EAN Number5027888014283
SAP number3036588
Commercial
LabelValue
Product ShapeJunction

LabelValue
ETIM ClassificationEC003025
Material connection 1Ceramics
Material quality connection 1Other
Surface protection connection 1Other
Surface treatment connection 1Other
Material connection 2Ceramics
Material quality connection 2Other
Surface protection connection 2Other
Surface treatment connection 2Other
Material connection 3Ceramics
Material quality connection 3Other
Surface protection connection 3Other
Surface treatment connection 3Other
ModelT-piece
Angle90°
ReducingNo
Multi-partNo
System-specificNo
Nominal diameter connection 1DN 150
Outer pipe diameter connection 1122mm
Wall thickness, connection 111mm
Connection 1Slide end
Nominal diameter connection 2DN 100
Outer pipe diameter connection 2122mm
Wall thickness, connection 211mm
Connection 2Slide end
Nominal diameter connection 3DN 100
Outer pipe diameter connection 3122mm
Wall thickness, connection 311mm
Connection 3Slide end
Main colour fittingBrown
Length of connection 10mm
Working length connection 10mm
Length of connection 20mm
Working length connection 20mm
Length of connection 30mm
Working length connection 30mm
Wrench width0mm
Wrench width union nut0mm
Max. operating pressure at max. medium temperature0bar
Max. operating pressure at 20 °C0bar
Standard Dimension Ratio (SDR)0.0000
With sealing rings/gasketsNo
With thermal insulationNo
Zeta value branch fluent separation according to DVGW W 5750.0000
Zeta value gangway current separation according to DVGW W 5750.0000
Zeta value counter current separation according to DVGW W 5750.0000
Zeta value branch merging flow according to DVGW W 5750.0000
Zeta value passage merging flow according to DVGW W 5750.0000
Zeta value counter merging flow according to DVGW W 5750.0000
