| Label | Value |
|---|---|
Nominal diameter connection 1 | DN 32 |
Length of connection 1 | 0mm |
Surface treatment connection 2 | Untreated |
ETIM Classification | EC003024 |
Main colour fitting | White |
High tensile strength | No |
Wall thickness, connection 1 | 0mm |
Working length connection 2 | 0mm |
Outer pipe diameter connection 2 | 0mm |
Wall thickness connecting pipe, connection 2 | 0mm |
Max. operating pressure at max. medium temperature | 0bar |

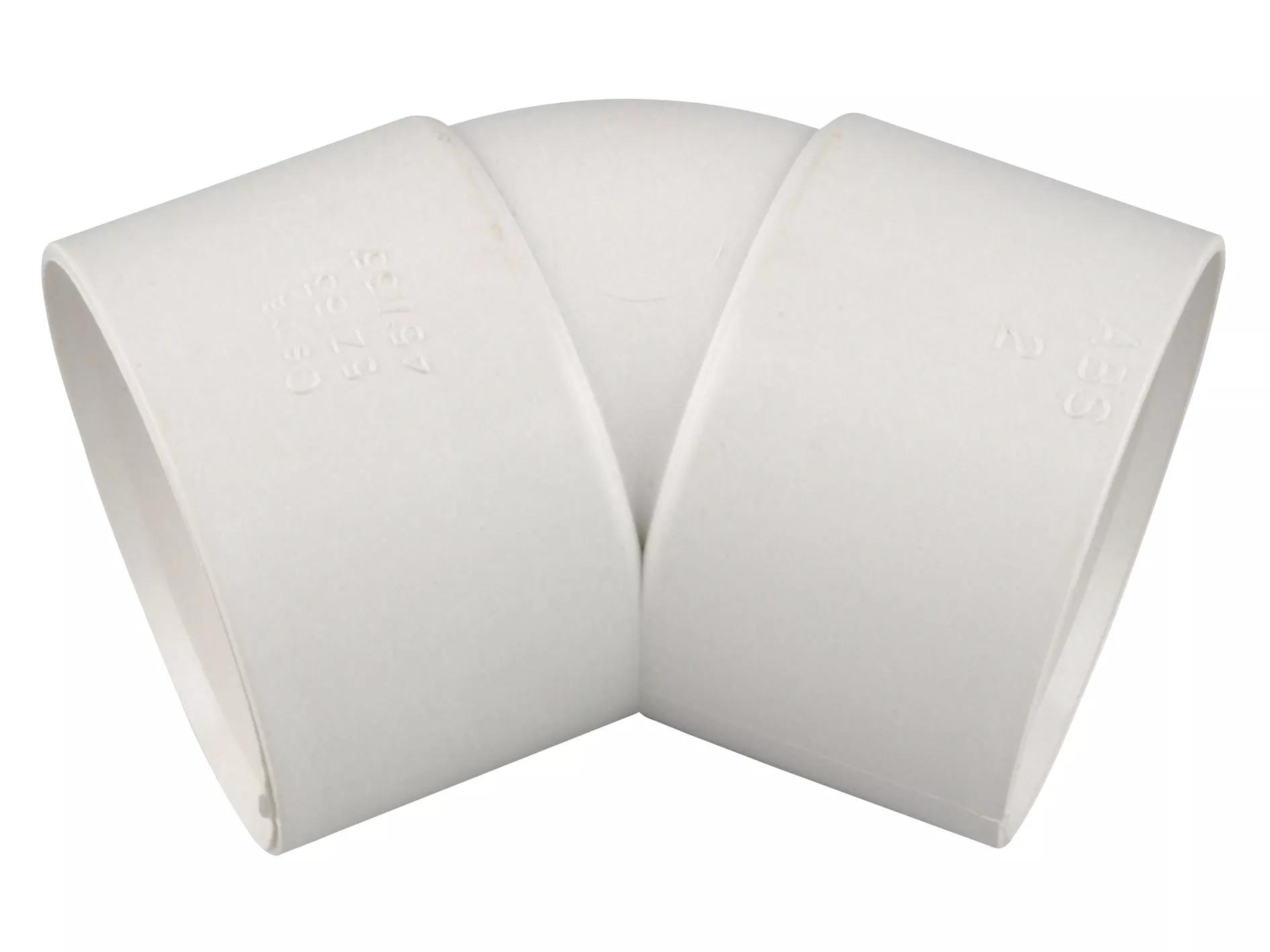

Shape | Bend |
Material quality connection 2 | Other |
With buffer stud | No |
Zeta value | 0 |
Surface protection connection 2 | Untreated |
Certified according to NF 545 | No |
Bend angle | 45° |
UL quality mark | No |
Nominal diameter connection 2 | DN 32 |
With de-aerator | No |
LPCB quality mark | No |
With connection indicator | No |
Connection 1 | Plastic welded end |
Bend radius | 0mm |
DVGW quality mark for water | No |
KOMO certified | No |
Medium temperature (continuous) | 0 |
Working length connection 1 | 0mm |
DIN-CERTCO certificate | No |
Wall thickness, connection 2 | 0mm |
Material connection 1 | Acrylonitrile butadiene styrene (ABS) |
With approval for TÜV | No |
Material quality connection 1 | Other |
Surface treatment connection 1 | Untreated |
Length of connection 2 | 0mm |
Model | 1-part |
VdS quality mark | No |
Gastec QA mark | No |
ULC quality mark | No |
Type approval according to BBR/EKS | No |
Connection 2 | Plastic welded end |
Wall thickness connecting pipe, connection 1 | 0mm |
Wrench width | 0mm |
With drain valve | No |
Wrench width union nut | 0mm |
DVGW quality mark for gas | No |
Outer pipe diameter connection 1 | 0mm |
Max. operating pressure at 20 °C | 0bar |
Material connection 2 | Acrylonitrile butadiene styrene (ABS) |
Standard Dimension Ratio (SDR) | 0 |
Surface protection connection 1 | Untreated |
FM quality mark | No |
Length | 0mm |
