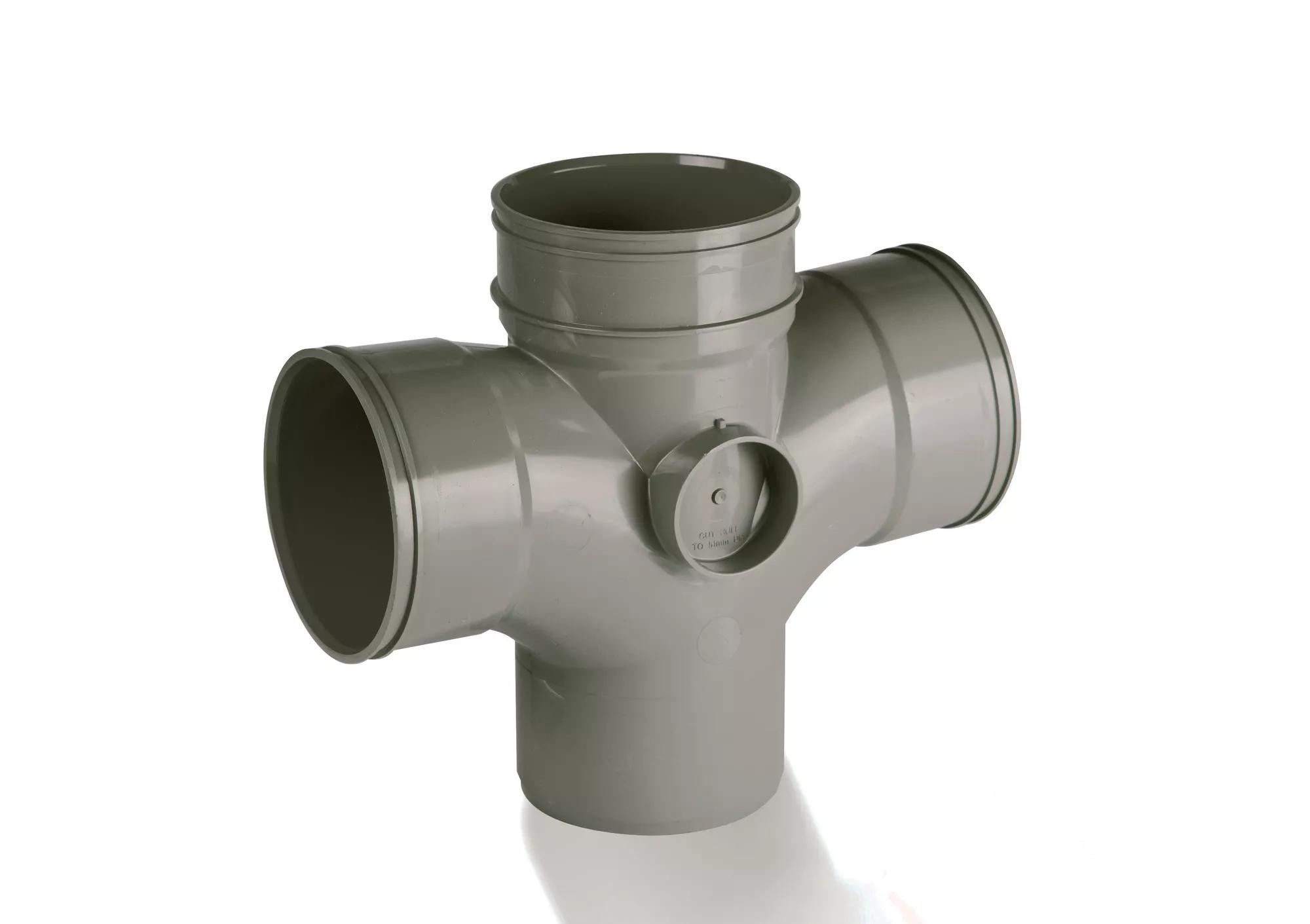

Osma PVCU Dbl Br 90° E 110x110x110 SW/S
PRODUCT IDENTIFIERS
- Catalog Code
- 4CS831SE
- EAN Number
- 5011479251577
- SAP number
- 3075387
PACKAGING DETAILS
- 1 pallet60 pieces
| Label | Value |
|---|---|
LPCB quality mark | No |
Wrench width | 0mm |
ETIM Classification | EC003026 |
With buffer stud | No |
Wrench width union nut | 0mm |
Outer pipe diameter connection 2 | 110mm |
Connection 2 | Slide end |
Material quality | PVC-U |
Multi-part | Yes |
Outer pipe diameter connection 4 | 118mm |
Surface treatment | Untreated |
Standard Dimension Ratio (SDR) | 0 |
Max. operating pressure at 20 °C | 0bar |
Wall thickness connecting pipe, connection 2 | 0mm |
DIN-CERTCO certificate | No |
System-specific | Yes |
Working length connection 4 | 0mm |
Swept entry type (with inner radius) | No |
Gastec QA - AR 214 (H2) | No |
Main colour fitting | Other |
Wall thickness, connection 1 | 3.5mm |
Length of connection 4 | 0mm |
Capped | No |
Length of connection 2 | 0mm |
KOMO certified | No |
Model | Cross piece 90° |
Reducing | No |
VdS quality mark | No |
Material | Polyvinyl chloride (PVC) |
Wall thickness, connection 2 | 3.5mm |
With sealing rings/gaskets | Yes |
Connection 1 | Plastic welded end |
Length of connection 3 | 0mm |
Nominal diameter connection 2 | DN 100 |
Working length connection 2 | 0mm |
Type approval according to BBR/EKS | No |
Wall thickness, connection 4 | 3.5mm |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
Nominal diameter connection 1 | DN 110 |
Working length connection 3 | 0mm |
With approval for TÜV | No |
Wall thickness connecting pipe, connection 3 | 0mm |
Surface protection | Untreated |
Outer pipe diameter connection 1 | 118mm |
DVGW quality mark for gas | No |
Wall thickness connecting pipe, connection 1 | 0mm |
Length of connection 1 | 0mm |
Outer pipe diameter connection 3 | 118mm |
KIWA certified | No |
Connection 4 | Plastic welded end |
Wall thickness connecting pipe, connection 4 | 0mm |
Connection 3 | Plastic welded end |
Max. operating pressure at max. medium temperature | 0bar |
DVGW quality mark for water | No |
Gastec QA mark | No |
Nominal diameter connection 4 | DN 110 |
Working length connection 1 | 0mm |
Wall thickness, connection 3 | 3.5mm |
Nominal diameter connection 3 | DN 110 |
