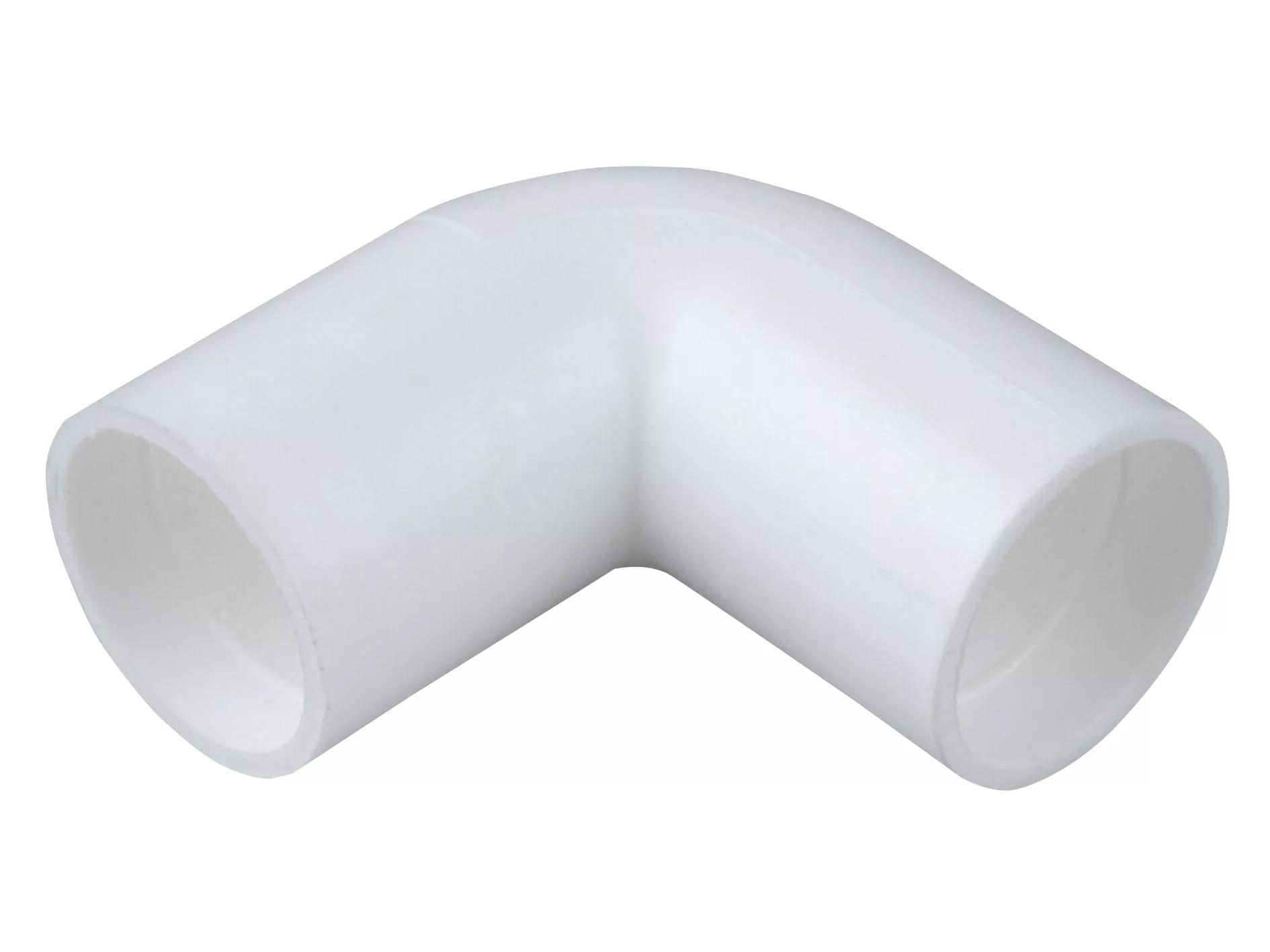

OsmaO PP Bend 90° WT 21.5
| 1 bag | 30 pieces |
|---|
Product Identifiers
Catalog Code1C160W
EAN Number5011479111772
SAP number3034987
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Material connection 1 | Polypropylene (PP) |
Material quality connection 1 | Other |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Polypropylene (PP) |
Material quality connection 2 | Other |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Bend |
Model | 1-part |
Bend angle | 90° |
Bend radius | 0mm |
Reducing | No |
Eccentric | No |
System-specific | No |
Nominal diameter connection 1 | 3/4 inch (20) |
Outer pipe diameter connection 1 | 21.63mm |
Wall thickness, connection 1 | 1.27mm |
Connection 1 | Slide sleeve |
Nominal diameter connection 2 | 3/4 inch (20) |
Outer pipe diameter connection 2 | 21.63mm |
Wall thickness, connection 2 | 1.27mm |
Connection 2 | Slide sleeve |
Main colour fitting | White |
Zeta value | 0.0000 |
Length | 49mm |
Length of connection 1 | 26mm |
Working length connection 1 | 0mm |
Length of connection 2 | 26mm |
Working length connection 2 | 0mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Medium temperature (continuous) | 0 |
Max. operating pressure at 20 °C | 0bar |
Max. operating pressure at max. medium temperature | 0bar |
With thermal insulation | No |
Standard Dimension Ratio (SDR) | 0.0000 |
With sealing rings/gaskets | No |
Capped | No |
KIWA certified | Yes |
