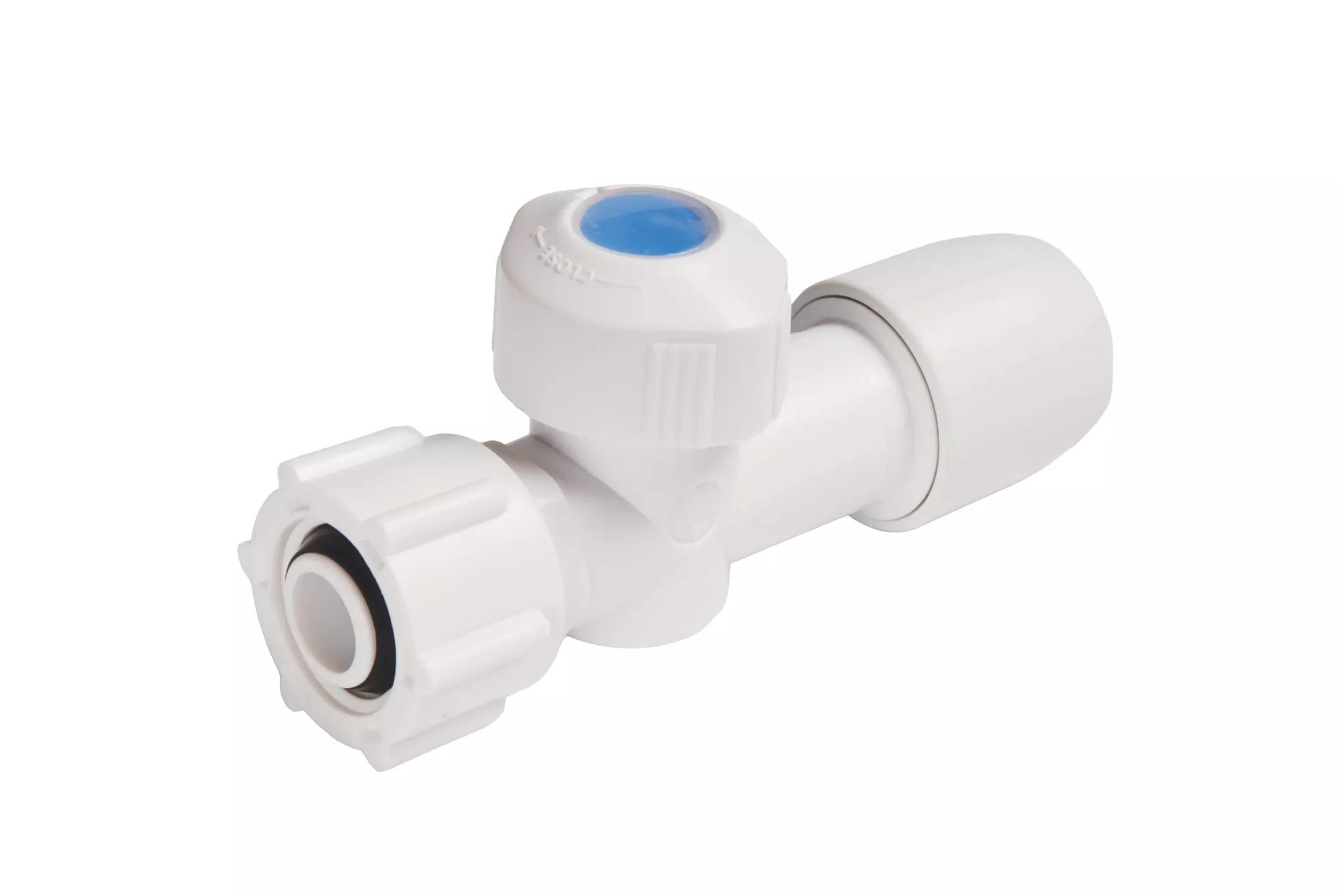

Hep2O Strght Service Valve 15x1/2 PF/TF
| 1 bag | 5 pieces |
|---|---|
| 1 box | 100 pieces |
| 1 pallet | 3200 pieces |
Product Identifiers
Catalog CodeHX18/15W
EAN Number5027888268525
SAP number3030704
| 1 bag | 5 pieces |
|---|---|
| 1 box | 100 pieces |
| 1 pallet | 3200 pieces |
| Label | Value |
|---|---|
Length of connection 1 | 0mm |
Bellows seal | No |
With position indicator | Yes |
Nominal diameter | DN 15 |
VdS quality mark | No |
With coupling connection 2 | Yes |
Housing material | Brass |
Kvs value | 0 |
Length of handle/diameter of hand wheel | 0mm |
With waste fitting | No |
Spindle and/or hand wheel rising | Yes |
LPCB quality mark | No |
UL quality mark | No |
Surface protection | Untreated |
Internally lined | Plastic |
KIWA certified | Yes |
Gastec QA mark | No |
FM quality mark | No |
Sealing | Plastic |
Type of bonnet | Screwed |
Handle/hand wheel height | 55mm |
Flange compression class | Other |
With coupling connection 1 | No |
Material quality | Polybutylene (PB) |
Article compression class | Other |
Connection 2 | External thread cylindrical BSPP-G (ISO 228-1) |
Max. pressure difference at 20 °C | 12bar |
Length of connection 2 | 0mm |
ULC quality mark | No |
Operation | Hand wheel |
Working length connection 2 | 32mm |
Working length connection 1 | 32mm |
Gastec QA - AR 214 (H2) | No |
Outer pipe diameter all connections | 29mm |
ETIM Classification | EC010163 |
