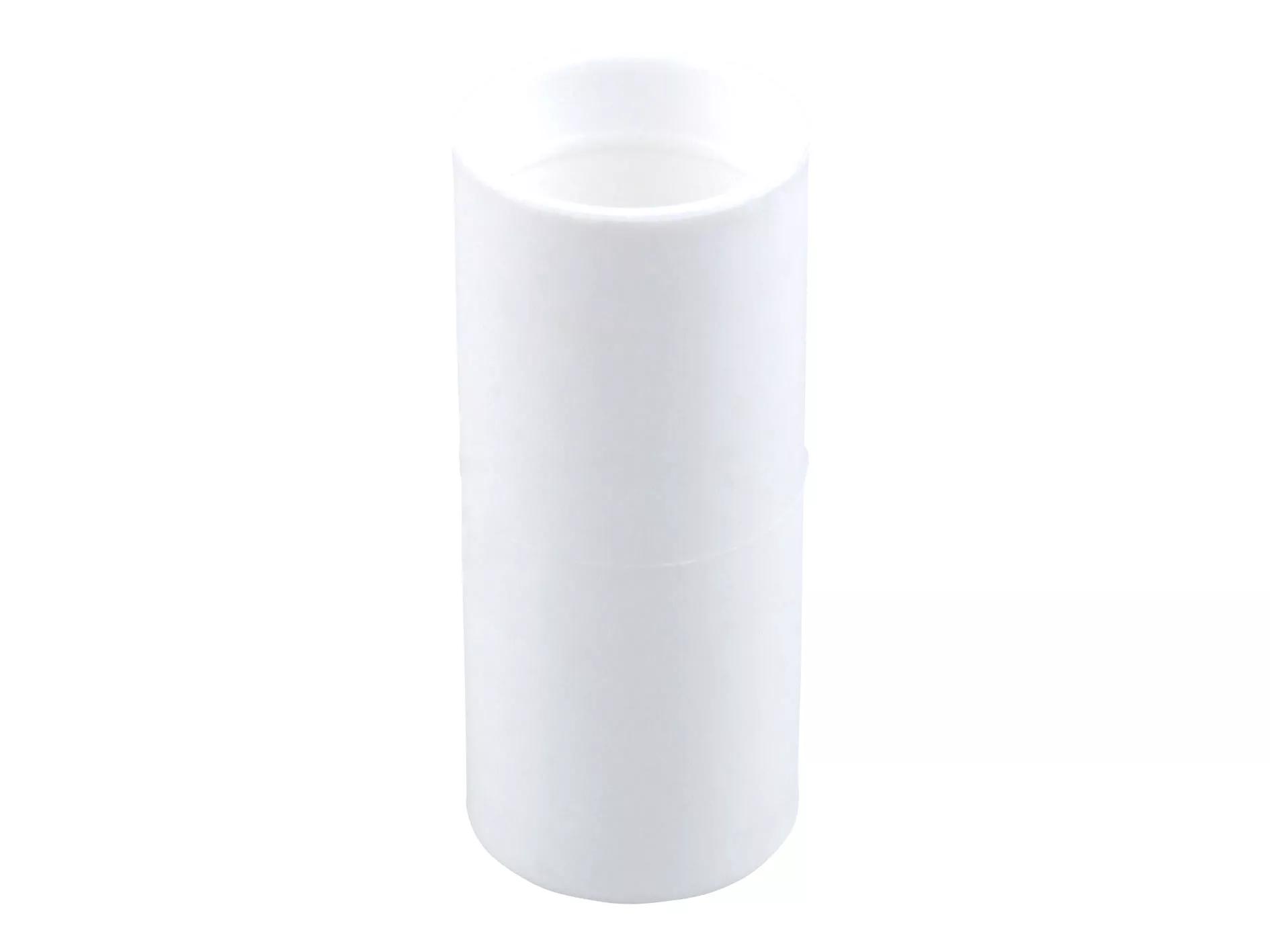

OsmaO PP Socket WT 21.5
Product Identifiers
Catalog Code1C104W
EAN Number5011479111758
SAP number3034921
Commercial
| Label | Value |
|---|---|
| Product Shape | Coupler |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polypropylene (PP) |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polypropylene (PP) |
| Material quality connection 2 | Other |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Model | 1-part |
| Bend angle | 0° |
| Bend radius | 0mm |
| Reducing | No |
| Eccentric | No |
| System-specific | No |
| Nominal diameter connection 1 | 3/4 inch (20) |
| Outer pipe diameter connection 1 | 21.63mm |
| Wall thickness, connection 1 | 1.27mm |
| Connection 1 | Insert (push coupling) |
| Nominal diameter connection 2 | 3/4 inch (20) |
| Outer pipe diameter connection 2 | 21.63mm |
| Wall thickness, connection 2 | 1.27mm |
| Connection 2 | Insert (push coupling) |
| Main colour fitting | White |
| Zeta value | 0.0000 |
| Length | 51mm |
| Length of connection 1 | 26mm |
| Working length connection 1 | 0mm |
| Length of connection 2 | 26mm |
| Working length connection 2 | 0mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 0 |
| Max. operating pressure at 20 °C | 0bar |
| Max. operating pressure at max. medium temperature | 0bar |
| With thermal insulation | No |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | No |
| Capped | No |
| KIWA certified | Yes |
