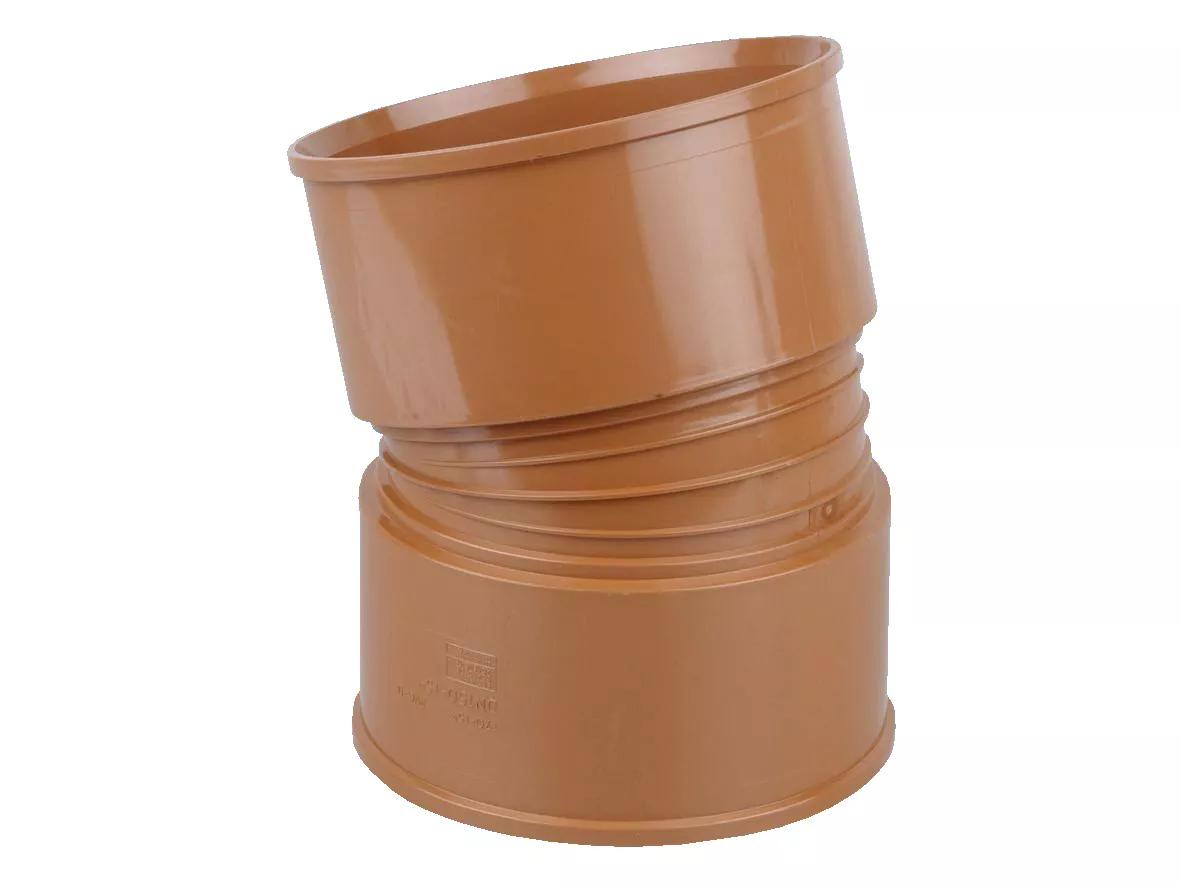

Wavin UR Bend 15° BN 225 SN8 D/S
| 1 box | 36 pieces |
|---|
Product Identifiers
Catalog Code9UR567
EAN Number5011479112502
SAP number3039681
| 1 box | 36 pieces |
|---|
| Label | Value |
|---|---|
System-specific | No |
Material quality connection 1 | Other |
Connection 1 | Slide sleeve |
Surface protection connection 2 | Untreated |
Length of connection 1 | 118mm |
KIWA certified | Yes |
Main colour fitting | Brown |
Working length connection 1 | 0mm |
Eccentric | No |
Surface treatment connection 1 | Untreated |
Model | 1-part |
Connection 2 | Slide sleeve |
Wrench width | 0mm |
Max. operating pressure at max. medium temperature | 0bar |
Capped | No |
Surface treatment connection 2 | Untreated |
With sealing rings/gaskets | No |
Shape | Bend |
Length | 295mm |
Material connection 2 | Polypropylene (PP) |
Outer pipe diameter connection 1 | 266mm |
Standard Dimension Ratio (SDR) | 0.0000 |
Working length connection 2 | 0mm |
Max. operating pressure at 20 °C | 0bar |
ETIM Classification | EC003024 |
Medium temperature (continuous) | 0 |
Wall thickness, connection 2 | 25mm |
Nominal diameter connection 1 | Other |
Reducing | No |
Surface protection connection 1 | Untreated |
Nominal diameter connection 2 | Other |
Outer pipe diameter connection 2 | 266mm |
Wrench width union nut | 0mm |
Material quality connection 2 | Other |
Bend angle | 15° |
Length of connection 2 | 118mm |
Wall thickness, connection 1 | 25mm |
Bend radius | 0mm |
Zeta value | 0.0000 |
With thermal insulation | No |
Material connection 1 | Polypropylene (PP) |
Ring stiffness class | SN8 |
