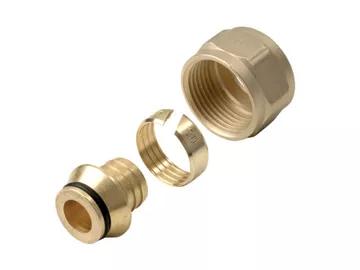

PERT/AL/PERT Connector 1/2" 16x2.0
| 1 bag | 10 pieces |
|---|---|
| 1 box | 50 pieces |
| 1 pallet | 12500 pieces |
Product Identifiers
Catalog Code4055036
EAN Number5708525408305
SAP number4055036
| 1 bag | 10 pieces |
|---|---|
| 1 box | 50 pieces |
| 1 pallet | 12500 pieces |
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Material connection 1 | Other |
Material quality connection 1 | Other |
Surface protection connection 1 |
Untreated
Surface treatment connection 1 | Untreated |
Material connection 2 | Other |
Material quality connection 2 | Other |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Straight |
Model | 3-part |
Bend angle | 0° |
Bend radius | 0mm |
Reducing | No |
Eccentric | No |
System-specific | Yes |
Nominal diameter connection 1 | 1/2 inch (15) |
Outer pipe diameter connection 1 | 0mm |
Wall thickness, connection 1 | 0mm |
Nominal diameter connection 2 | Other |
Outer pipe diameter connection 2 | 16mm |
Wall thickness, connection 2 | 0mm |
Connection 2 | Compression ring |
Main colour fitting | Other |
Flange compression class (PN) | PN 10 |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
With buffer stud | Yes |
Zeta value | 0.0000 |
High tensile strength | No |
Length | 0mm |
Length of connection 1 | 0mm |
Working length connection 1 | 0mm |
Length of connection 2 | 0mm |
Working length connection 2 | 0mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Medium temperature (continuous) | 0.010 - 70 |
Max. operating pressure at 20 °C | 10bar |
Max. operating pressure at max. medium temperature | 10bar |
With thermal insulation | No |
Standard Dimension Ratio (SDR) | 0.0000 |
With sealing rings/gaskets | Yes |
Capped | No |
With drain valve | No |
With de-aerator | No |
FM quality mark | No |
LPCB quality mark | No |
DIN-CERTCO certificate | No |
With approval for TÜV | No |
DVGW quality mark for gas | No |
DVGW quality mark for water | No |
Gastec QA mark | No |
