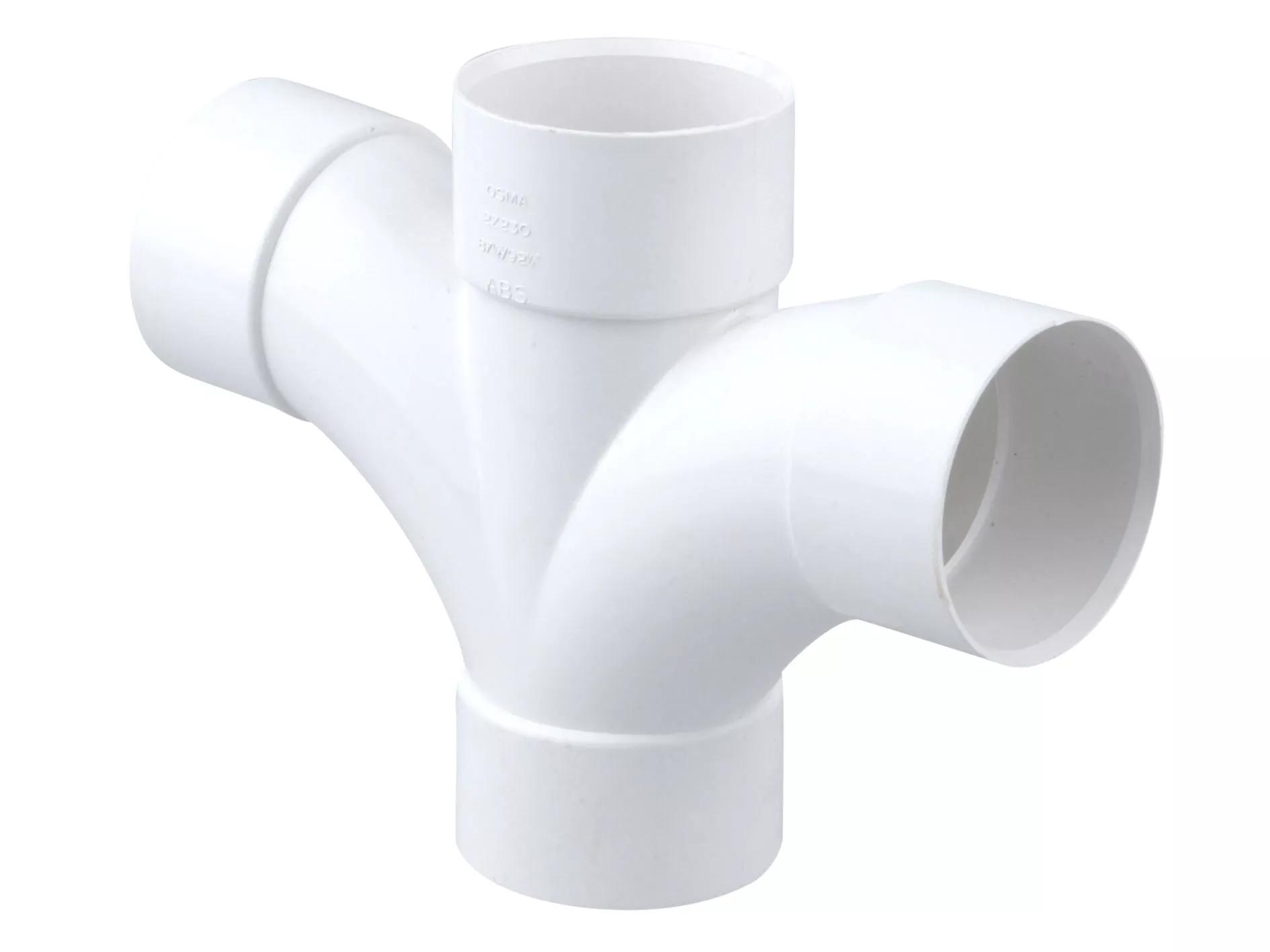

OsmaW ABS Cross Tee 90° WT 50x50x50
| 1 bag | 5 pieces |
|---|
Product Identifiers
Catalog Code2Z230W
EAN Number5011479110201
SAP number3035991
| 1 bag | 5 pieces |
|---|
| Label | Value |
|---|---|
Outer pipe diameter connection 4 | 56.1mm |
KOMO certified | No |
With sealing rings/gaskets | No |
Wall thickness connecting pipe, connection 1 | 0mm |
Nominal diameter connection 3 | DN 50 |
Length of connection 3 | 0mm |
Wall thickness, connection 3 | 2.4mm |
Gastec QA mark | No |
Length of connection 2 | 0mm |
Gastec QA - AR 214 (H2) | No |
Material | Acrylonitrile butadiene styrene (ABS) |
Capped | No |
DIN-CERTCO certificate | No |
Length of connection 4 | 0mm |
Standard Dimension Ratio (SDR) | 0 |
Reducing | No |
Connection 3 | Plastic welded end |
Wrench width union nut | 0mm |
Wall thickness, connection 4 | 2.4mm |
VdS quality mark | No |
Working length connection 2 | 0mm |
Wall thickness connecting pipe, connection 4 | 0mm |
Outer pipe diameter connection 1 | 56.1mm |
Working length connection 1 | 0mm |
Working length connection 4 | 0mm |
Surface protection | Untreated |
Wall thickness, connection 1 | 2.4mm |
Type approval according to BBR/EKS | No |
ETIM Classification | EC003026 |
Wall thickness, connection 2 | 2.4mm |
DVGW quality mark for water | No |
Nominal diameter connection 1 | DN 50 |
Max. operating pressure at 20 °C | 0bar |
Nominal diameter connection 2 | DN 50 |
Nominal diameter connection 4 | DN 50 |
System-specific | Yes |
Wall thickness connecting pipe, connection 2 | 0mm |
Main colour fitting | White |
Max. operating pressure at max. medium temperature | 0bar |
Outer pipe diameter connection 2 | 56.1mm |
KIWA certified | No |
Working length connection 3 | 0mm |
Length of connection 1 | 0mm |
LPCB quality mark | No |
Connection 2 | Plastic welded end |
DVGW quality mark for gas | No |
Swept entry type (with inner radius) | No |
Outer pipe diameter connection 3 | 56.1mm |
Wrench width | 0mm |
Connection 4 | Plastic welded end |
With buffer stud | No |
Model | Cross piece 90° |
Connection 1 | Plastic welded end |
Material quality | Other |
With approval for TÜV | No |
Multi-part | No |
Surface treatment | Untreated |
Wall thickness connecting pipe, connection 3 | 0mm |
