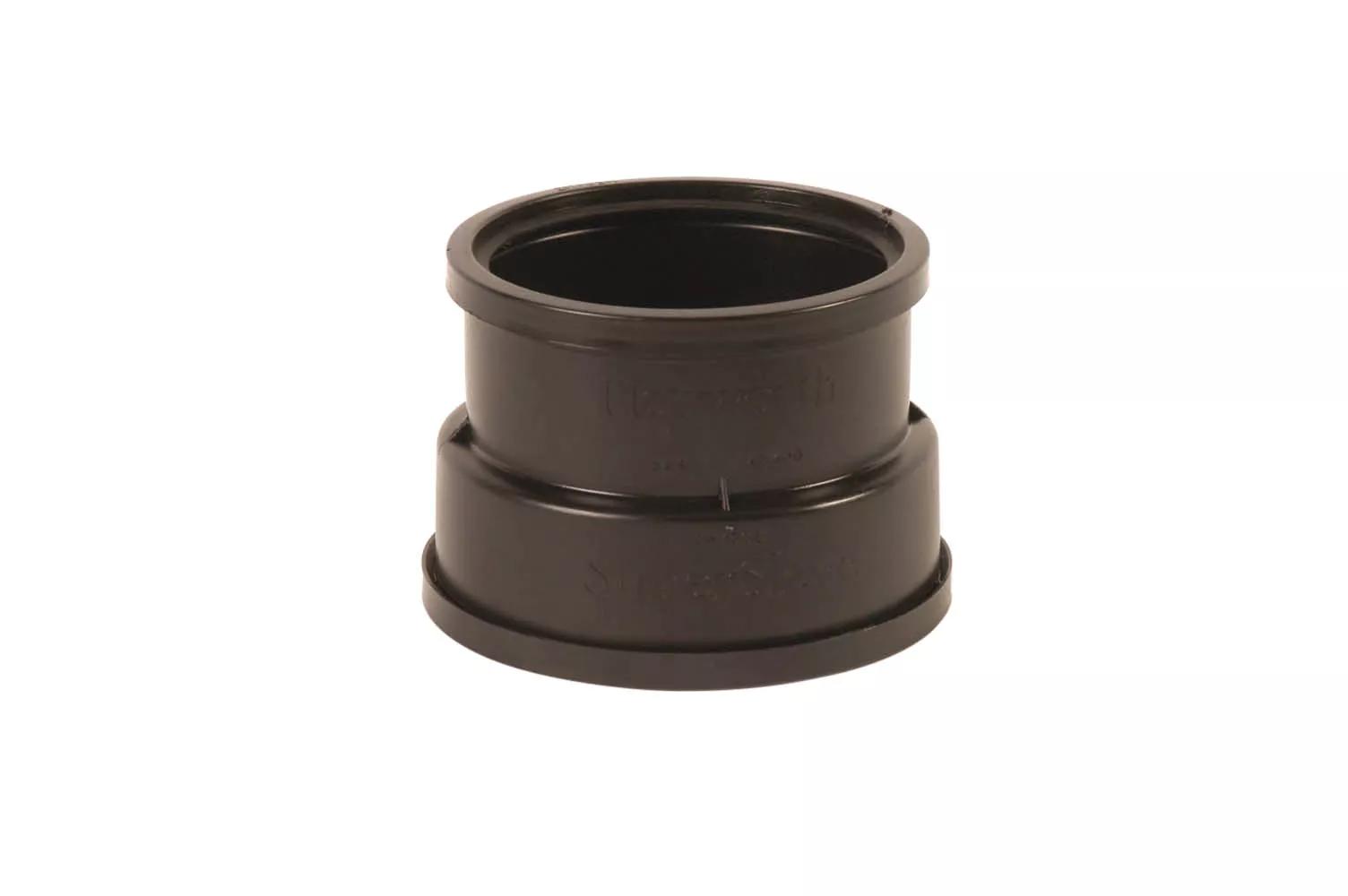

Hepworth PP Adaptor SA10 BK 150
Product Identifiers
Catalog CodeSA10
EAN Number5027888023025
SAP number3032046
| Label | Value |
|---|---|
| Product Shape | Adaptor |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polypropylene (PP) |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Other |
| Surface treatment connection 1 | Other |
| Material connection 2 | Polypropylene (PP) |
| Material quality connection 2 | Other |
| Surface protection connection 2 | Other |
| Surface treatment connection 2 | Other |
| Shape | Straight |
| Model | 1-part |
| Bend angle | 0° |
| Bend radius | 0mm |
| Reducing | No |
| System-specific | Yes |
| Nominal diameter connection 1 | DN 150 |
| Outer pipe diameter connection 1 | 205mm |
| Wall thickness, connection 1 | 14mm |
| Connection 1 | Slide sleeve |
| Nominal diameter connection 2 | DN 160 |
| Outer pipe diameter connection 2 | 180mm |
| Wall thickness, connection 2 | 4.1mm |
| Connection 2 | Slide sleeve |
| Main colour fitting | Black |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| Zeta value | 0.0000 |
| Length | 110mm |
| Length of connection 1 | 55mm |
| Working length connection 1 | 55mm |
| Length of connection 2 | 55mm |
| Working length connection 2 | 55mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 0 |
| Max. operating pressure at 20 °C | 0bar |
| Max. operating pressure at max. medium temperature | 0bar |
| With thermal insulation | No |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | Yes |
| KIWA certified | Yes |
