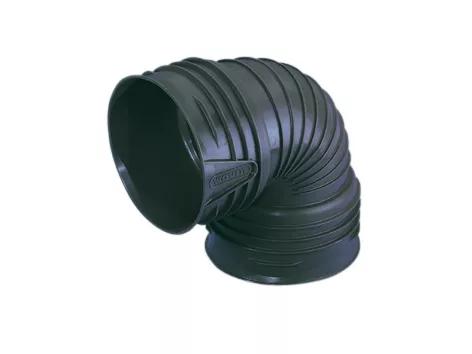

TwinWall Bend 87.5° BK 225
Product Identifiers
Catalog Code9TW561
EAN Number5907444015988
SAP number4039726
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Material connection 1 | Polypropylene (PP) |
Material quality connection 1 | PP-C |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Polypropylene (PP) |
Material quality connection 2 | PP-C |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Elbow (fitting) |
Model | 1-part |
Bend angle | 90° |
Bend radius | 0mm |
Reducing | No |
Eccentric | No |
System-specific | Yes |
Nominal diameter connection 1 | DN 20 |
Outer pipe diameter connection 1 | 268mm |
Wall thickness, connection 1 | 1mm |
Outer pipe diameter connection 2 | 268mm |
Wall thickness, connection 2 | 1mm |
Main colour fitting | Black |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
With buffer stud | No |
Zeta value | 1.2000 |
High tensile strength | No |
Length | 1mm |
Length of connection 1 | 1mm |
Working length connection 1 | 0mm |
Length of connection 2 | 1mm |
Working length connection 2 | 0mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Medium temperature (continuous) | 1 - 75 |
Max. operating pressure at 20 °C | 0bar |
With thermal insulation | No |
Ring stiffness class | SN8 |
Standard Dimension Ratio (SDR) | 0.0000 |
With sealing rings/gaskets | No |
Capped | No |
With drain valve | No |
With de-aerator | No |
FM quality mark | No |
LPCB quality mark | No |
ULC quality mark | No |
UL quality mark | No |
VdS quality mark | No |
KIWA certified | No |
