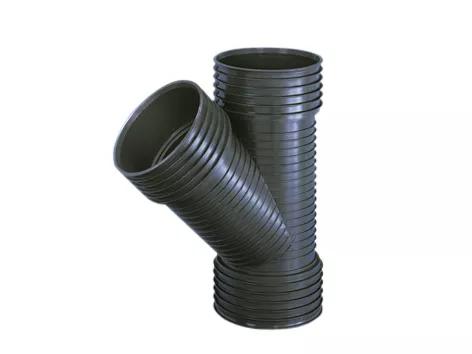

TwinWall D/S Junc 45° BK 300
Product Identifiers
Catalog Code12TW213
EAN Number5907444017739
SAP number4039750
| Label | Value |
|---|---|
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
Material connection 2 | Polypropylene (PP) |
Capped | No |
Wrench width union nut | 0mm |
Reducing | No |
Length of connection 1 | 1mm |
Surface protection connection 2 | Untreated |
Outer pipe diameter connection 3 | 355mm |
LPCB quality mark | No |
Length of connection 2 | 1mm |
Angle | 45° |
System-specific | Yes |
Nominal diameter connection 3 | DN 300 |
Material quality connection 3 | PP-C |
Wrench width | 0mm |
Multi-part | No |
Material quality connection 1 | PP-C |
Surface treatment connection 1 | Untreated |
Surface treatment connection 3 | Untreated |
Ring stiffness class | SN8 |
High tensile strength | No |
Flange standard | Other |
Model | T-piece |
ETIM Classification | EC003025 |
Surface protection connection 1 | Untreated |
With drain valve | No |
With sealing rings/gaskets | No |
With thermal insulation | No |
ULC quality mark | No |
Wall thickness, connection 2 | 1mm |
Working length connection 3 | 0mm |
FM quality mark | No |
Main colour fitting | Black |
Standard Dimension Ratio (SDR) | 0 |
Surface protection connection 3 | Untreated |
Material quality connection 2 | PP-C |
With de-aerator | No |
Swept entry type (with inner radius) | No |
Outer pipe diameter connection 2 | 355mm |
Working length connection 2 | 0mm |
Nominal diameter connection 1 | DN 300 |
Outer pipe diameter connection 1 | 355mm |
Wall thickness, connection 1 | 1mm |
Material connection 3 | Polypropylene (PP) |
Nominal diameter connection 2 | DN 300 |
Material connection 1 | Polypropylene (PP) |
Max. operating pressure at 20 °C | 0bar |
With buffer stud | No |
UL quality mark | No |
Surface treatment connection 2 | Untreated |
Working length connection 1 | 0mm |
