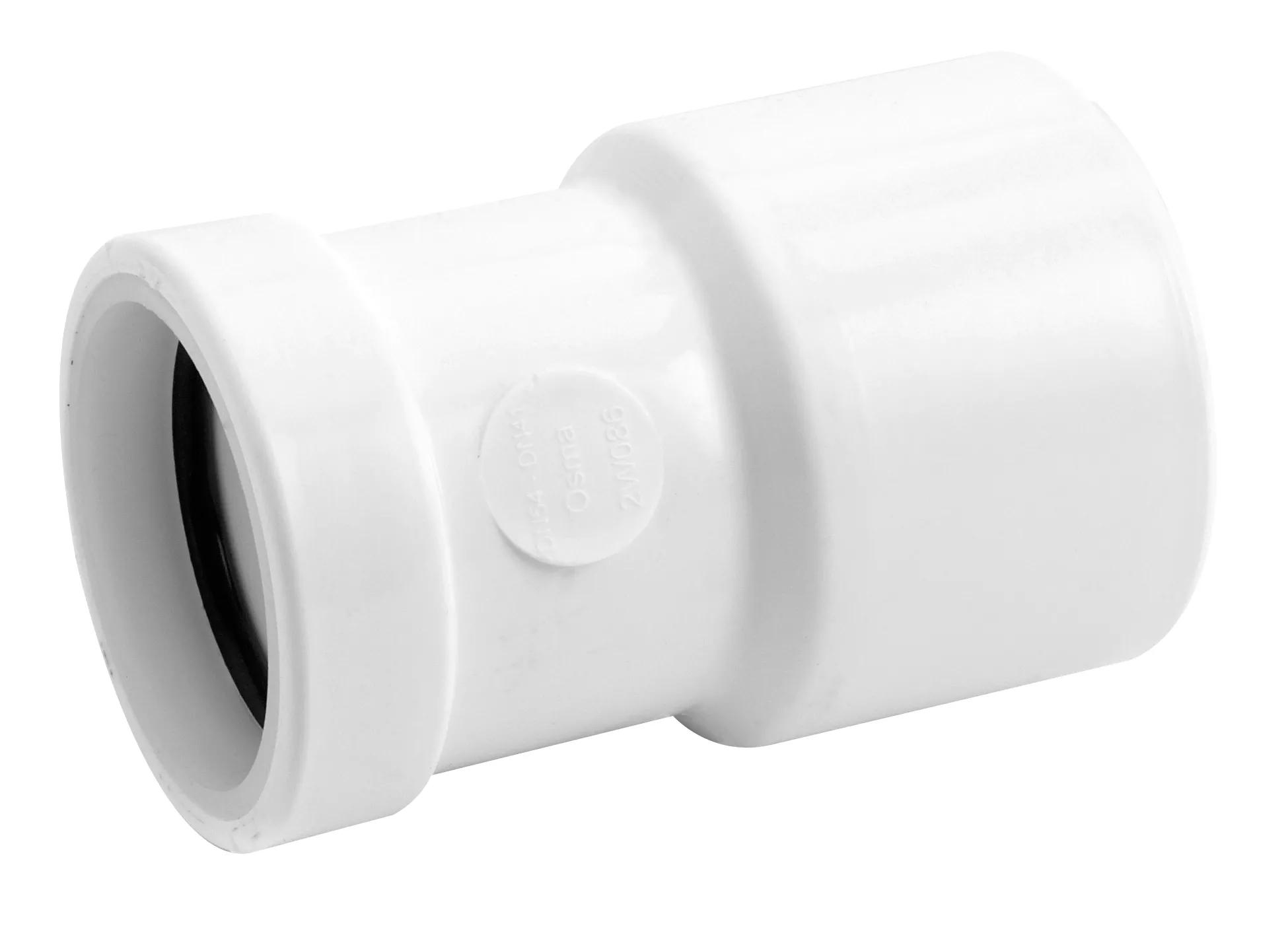

OsmaW PP Reducer WT 50x32
Product Identifiers
Catalog Code2W088W
EAN Number5011479195598
SAP number3035197
Commercial
| Label | Value |
|---|---|
| Product Shape | Reducer |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polypropylene (PP) |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polypropylene (PP) |
| Material quality connection 2 | Other |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Model | 2-part |
| Bend angle | 0° |
| Bend radius | 0mm |
| Reducing | Yes |
| Eccentric | Yes |
| System-specific | No |
| Nominal diameter connection 1 | DN 50 |
| Outer pipe diameter connection 1 | 54.3mm |
| Wall thickness, connection 1 | 2.4mm |
| Nominal diameter connection 2 | DN 32 |
| Outer pipe diameter connection 2 | 34.8mm |
| Wall thickness, connection 2 | 2.2mm |
| Main colour fitting | White |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| Zeta value | 0.0000 |
| Length | 80mm |
| Length of connection 1 | 0mm |
| Working length connection 1 | 0mm |
| Length of connection 2 | 33mm |
| Working length connection 2 | 0mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 0 |
| Max. operating pressure at 20 °C | 0bar |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | Yes |
| Capped | No |
| KIWA certified | Yes |
