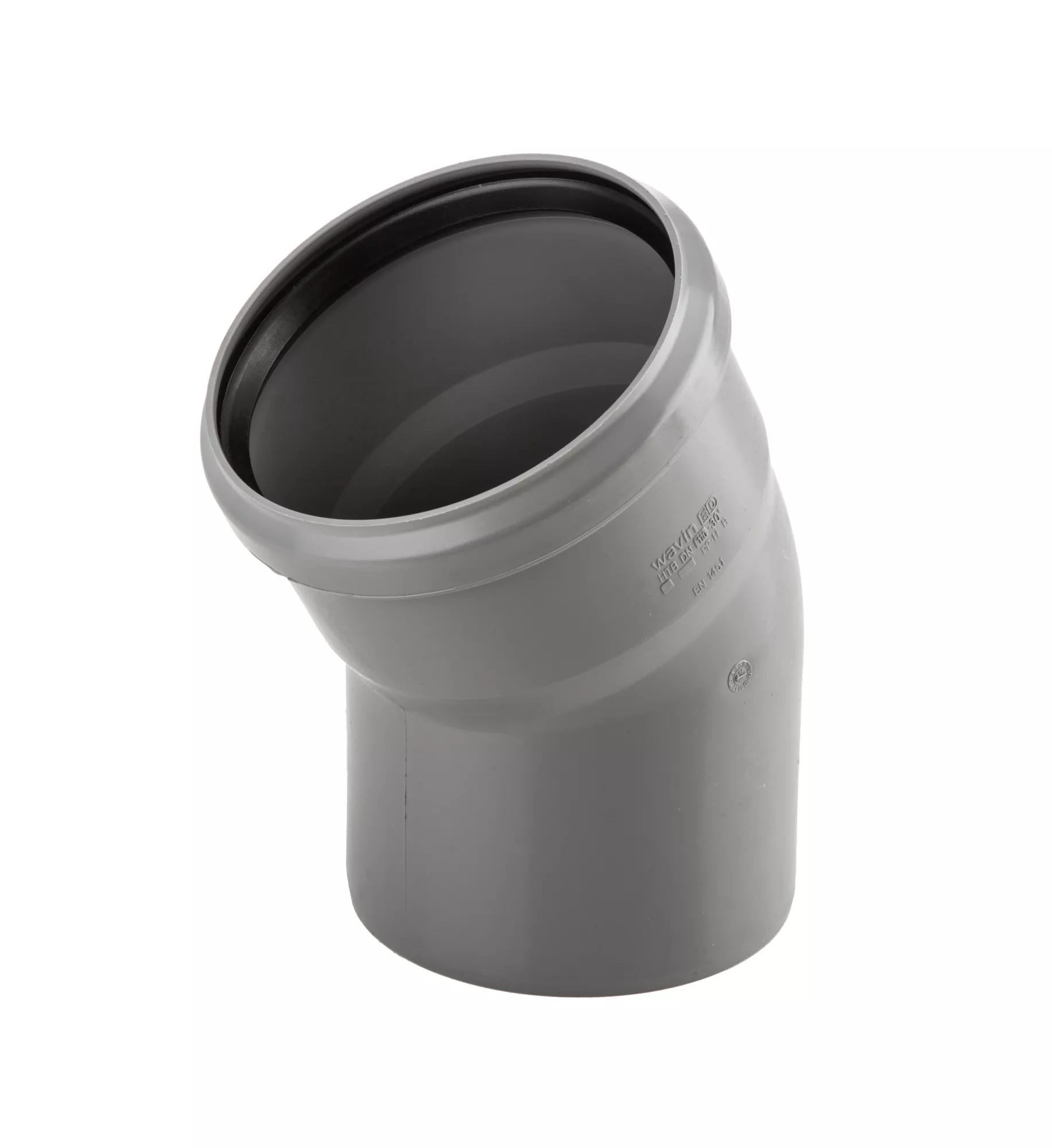

40x30° PP põlv
| 1 kast | 40 tk |
|---|---|
| 1 pallet | 1920 tk |
Product Identifiers
Wavin kataloogi kood
EAN number8018464001299
SAP number3018727
| 1 kast | 40 tk |
|---|---|
| 1 pallet | 1920 tk |
| Label | Value |
|---|---|
Grid lockable | No |
Surface treatment connection 1 | Untreated |
Height including legs | 20 - 90 |
FM kvaliteedimärk | No |
Töö kestvus 1 | 50.5mm |
Ühenduse 1 pikkus | 50.5mm |
Zeta väärtus | 0 |
Standard Dimension Ratio (SDR) | 35 |
Paindeulatus | 0mm |
Material connection 1 | Polypropylene (PP) |
Ühendus 1 | Insert (push coupling) |
Maksimaalne töörõhk 20 °C juures | 0bar |
Seina paksus, ühendus 1 | 1.8mm |
With packings | Yes |
Conductor resistance at 20 °C | Universal |
Seina paksus ühendus 2 | 1.6mm |
Õhutajaga | No |
LPCB kvaliteedimärk | No |
Välistoru läbimõõduga liitmik 1 | 40mm |
Mudel | 1-part |
Length | 57.5mm |
Mutri laius | 0mm |
Töö kestvus 2 | 47mm |
Süsteemile orienteeritud | Yes |
Puhvritapiga | No |
Nominal inner diameter connection 1 | DN 40 |
ETIM Classification | EC003024 |
Ühenduse 2 pikkus | 47mm |
Kaanega | No |
Grid lockable | No |
Ühenduse 2 nominaalne sisemine läbimõõt | DN 40 |
Surface treatment connection 2 | Untreated |
Ühendus 2 | Insert (push coupling) |
Surface protection connection 1 | Untreated |
Drenaažiga | No |
ULC kvaliteedimärk | No |
UL kvaliteedimärk | No |
Külm tõmbetugevus | No |
Main colour fitting | Grey |
Material connection 2 | Polypropylene (PP) |
Grid lockable | No |
Conductor resistance at 20 °C | Universal |
Välistoru läbimõõduga liitmik 2 | 40mm |
Surface protection connection 2 | Untreated |
Swivel key size | 0mm |
Vähendamine | No |
Seal material | SBR |
Angle of bow | 30° |
