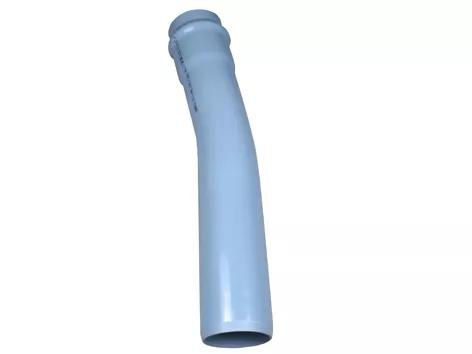

PVC Bend 11° GY 140 PN12.5
PRODUCT IDENTIFIERS
- Catalog Code
- +0186013
- EAN Number
- 5708525510435
- VVS nr.
- 064322140
- DB nr.
- 1942283
- SAP number
- 3066241
| Label | Value |
|---|---|
DB nr. | 1942283 |
VVS nr. | 064322140 |
| Label | Value |
|---|---|
Standard Dimension Ratio (SDR) | 21 |
Zeta value | 0 |
System-specific | Yes |
With thermal insulation | No |
High tensile strength | No |
ETIM Classification | EC003024 |
Surface protection connection 2 | Untreated |
Material connection 2 | Polyvinyl chloride (PVC) |
Length of connection 1 | 0mm |
FM quality mark | No |
Working length connection 2 | 0mm |
Surface protection connection 1 | Untreated |
ULC quality mark | No |
Wall thickness, connection 1 | 0mm |
Shape | Bend |
Flange compression class (ANSI) | Other |
Nominal diameter connection 1 | DN 150 |
Model | 1-part |
Nominal diameter connection 2 | DN 150 |
Flange compression class (JIS) | Other |
Bend angle | 11° |
Material quality connection 1 | PVC-U |
Length | 0mm |
DIN-CERTCO certificate | No |
Working length connection 1 | 0mm |
Type approval according to BBR/EKS | No |
Surface treatment connection 2 | Untreated |
With approval for TÜV | No |
Material quality connection 2 | PVC-U |
Bend radius | 600mm |
With buffer stud | Yes |
Capped | Yes |
UL quality mark | No |
Connection 1 | Slide sleeve |
KOMO certified | No |
With de-aerator | No |
Surface treatment connection 1 | Untreated |
DVGW quality mark for water | No |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
Material connection 1 | Polyvinyl chloride (PVC) |
Flange compression class (BS) | Other |
Length of connection 2 | 0mm |
Main colour fitting | Grey |
Gastec QA mark | No |
Connection 2 | Spigot/tube end |
Eccentric | No |
Reducing | No |
Max. operating pressure at max. medium temperature | 12.5bar |
Gastec QA - AR 214 (H2) | No |
Flange compression class (PN) | Other |
KIWA certified | No |
Wrench width | 0mm |
DVGW quality mark for gas | No |
Wall thickness, connection 2 | 0mm |
Wrench width union nut | 0mm |
Outer pipe diameter connection 1 | 140mm |
Outer pipe diameter connection 2 | 140mm |
With sealing rings/gaskets | Yes |
Medium temperature (continuous) | 5 - 40 |
Max. operating pressure at 20 °C | 12.5bar |
