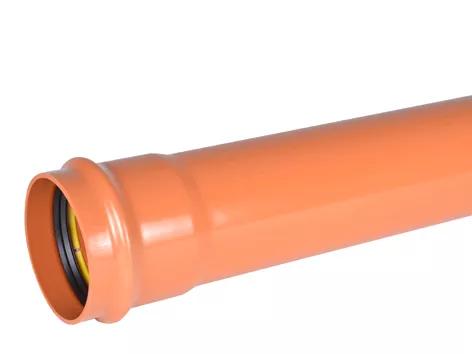

PP Sewer Pipe SW RB 200 SN8 L=3 Sew.Lock
PRODUCT IDENTIFIERS
- Catalog Code
- +3092324
- EAN Number
- 5708525632359
- SAP number
- 3092324
PACKAGING DETAILS
- 1 pack20 PCE
| Label | Value |
|---|---|
With thermal insulation | No |
Certified according to SVGW for water | No |
Certified according to SVGW for gas | No |
Nominal diameter | DN 200 |
Flexible | No |
Medium temperature (continuous) | 1 - 40 |
Capped | No |
Article compression class | Pressureless |
Hook-and-loop fastening | No |
RAL-number pipe | 0 |
Insert length connection 2 | 0mm |
With heating cable | No |
Pipe colour | Brown |
Outer diameter mantle pipe | 0mm |
Material quality | Other |
Material | Polypropylene (PP) |
Ring stiffness class | SN8 |
Chamfered | Yes |
Max. operating pressure at max. medium temperature | 0bar |
Number of sealing rings, sleeve | 1 |
Wall thickness | 7.2mm |
Insert length connection 1 | 100mm |
Outer pipe diameter | 200mm |
Wall roughness | 0.01mm |
Min. bending radius | 100mm |
ETIM Classification | EC010882 |
Connection 1 | Slide sleeve |
Lambda value | 0.16W/(m·K) |
Thickness of thermal insulation | 0mm |
Outer diameter thermal insulation | 0mm |
Type approval according to BBR/EKS | No |
Connection 2 | Tube end |
Standard Dimension Ratio (SDR) | 0 |
Diffusion-proof | No |
Expansion coefficient | 0.13mm/(m·K) |
