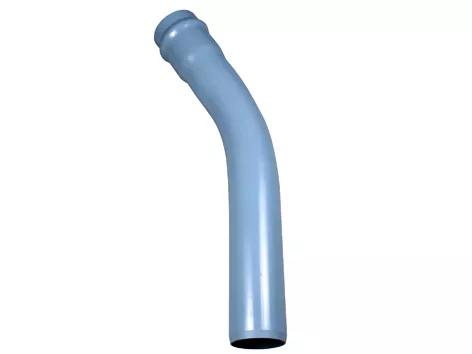

PVC Bend 22° GY 125 PN12.5
PRODUCT IDENTIFIERS
- Catalog Code
- +0186112
- EAN Number
- 5708525510510
- VVS nr.
- 064318125
- DB nr.
- 1899060
- SAP number
- 3066240
| Label | Value |
|---|---|
Surface protection connection 2 | Untreated |
Type approval according to BBR/EKS | No |
Main colour fitting | Grey |
Material connection 2 | Polyvinyl chloride (PVC) |
ULC quality mark | No |
Surface treatment connection 1 | Untreated |
Nominal diameter connection 2 | DN 125 |
DVGW quality mark for water | No |
Medium temperature (continuous) | 5 - 40 |
FM quality mark | No |
Flange compression class (JIS) | Other |
Nominal diameter connection 1 | DN 125 |
Working length connection 2 | 0mm |
Wall thickness, connection 1 | 0mm |
DIN-CERTCO certificate | No |
Model | 1-part |
Flange compression class (BS) | Other |
Wrench width union nut | 0mm |
Gastec QA - AR 214 (H2) | No |
Surface treatment connection 2 | Untreated |
Eccentric | No |
With thermal insulation | No |
DVGW quality mark for gas | No |
High tensile strength | No |
Flange compression class (PN) | Other |
Working length connection 1 | 0mm |
Material quality connection 1 | PVC-U |
Outer pipe diameter connection 2 | 125mm |
With buffer stud | Yes |
Connection 1 | Slide sleeve |
Material quality connection 2 | PVC-U |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
Flange compression class (ANSI) | Other |
ETIM Classification | EC003024 |
UL quality mark | No |
With de-aerator | No |
Length | 0mm |
Wall thickness, connection 2 | 0mm |
Surface protection connection 1 | Untreated |
Zeta value | 0 |
With approval for TÜV | No |
Bend angle | 22° |
Capped | Yes |
Outer pipe diameter connection 1 | 125mm |
System-specific | Yes |
Reducing | No |
With sealing rings/gaskets | Yes |
Max. operating pressure at 20 °C | 12.5bar |
Length of connection 1 | 0mm |
Gastec QA mark | No |
Bend radius | 500mm |
Length of connection 2 | 0mm |
Shape | Bend |
Standard Dimension Ratio (SDR) | 21 |
KOMO certified | No |
KIWA certified | No |
Connection 2 | Spigot/tube end |
Material connection 1 | Polyvinyl chloride (PVC) |
Wrench width | 0mm |
Max. operating pressure at max. medium temperature | 12.5bar |
| Label | Value |
|---|---|
DB nr. | 1899060 |
VVS nr. | 064318125 |
