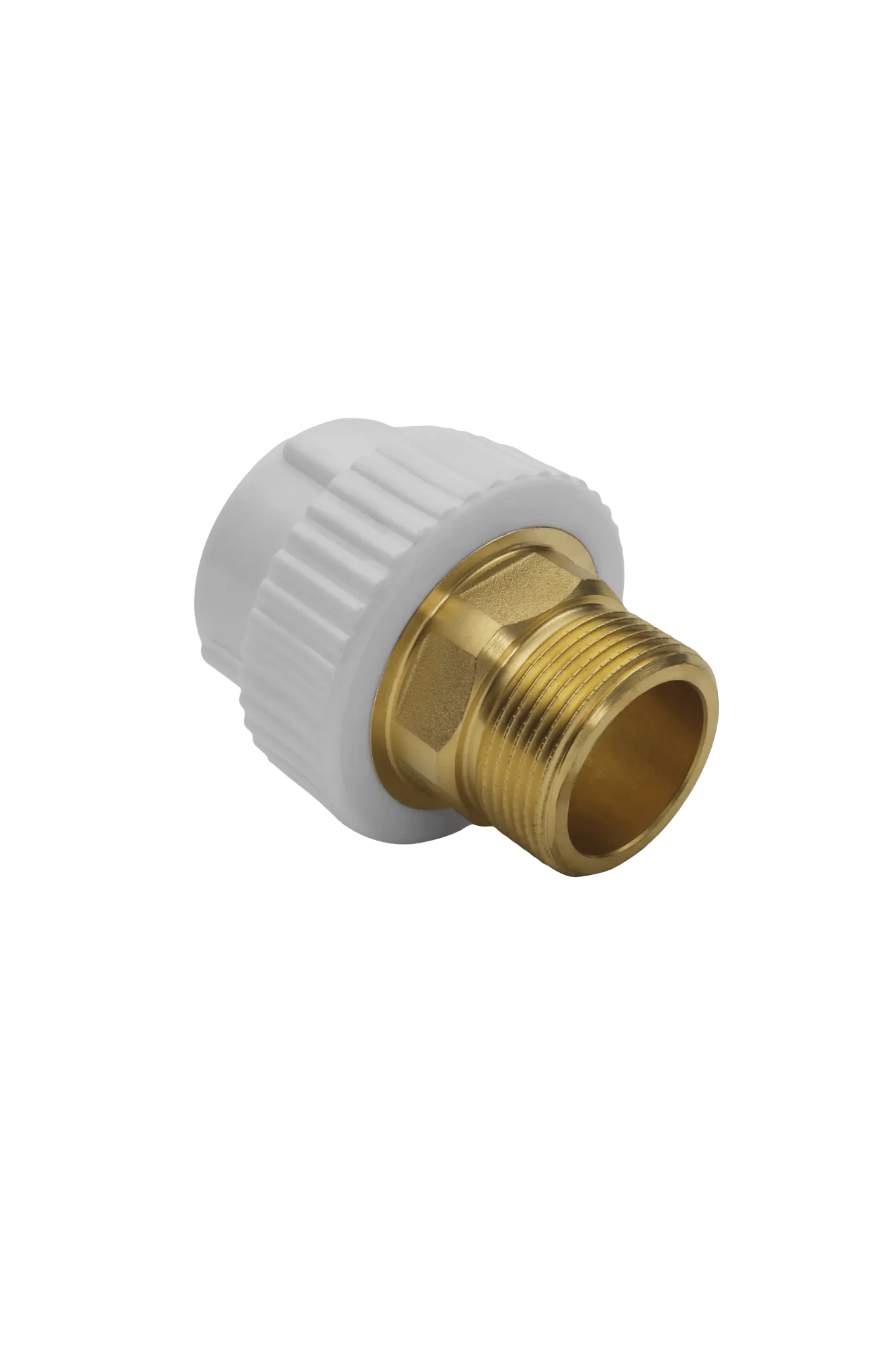

PPR Adaptor M.Metal Th.Soc. WT 75x2 1/2"
| 1 bag | 1 pieces |
|---|---|
| 1 box | 6 pieces |
| 1 pallet | 360 pieces |
Product Identifiers
Catalog Code
EAN Number8680099038768
SAP number3051089
| 1 bag | 1 pieces |
|---|---|
| 1 box | 6 pieces |
| 1 pallet | 360 pieces |
| Label | Value |
|---|---|
Length | 151mm |
Reducing | No |
Nominal diameter connection 1 | DN 75 |
Medium temperature (continuous) | 0 - 75 |
DIN-CERTCO certificate | No |
With approval for TÜV | No |
System-specific | No |
Outer pipe diameter connection 2 | 76mm |
Working length connection 2 | 75mm |
Outer pipe diameter connection 1 | 100mm |
Standard Dimension Ratio (SDR) | 6 |
Material quality connection 1 | PP-R |
Working length connection 1 | 30mm |
DVGW quality mark for gas | No |
Surface protection connection 2 | Nickel-plated |
Zeta value | 0.4 |
Material quality connection 2 | Other |
Wrench width union nut | 67mm |
Material connection 2 | Brass |
Connection 2 | External thread metric |
Surface protection connection 1 | Untreated |
Material connection 1 | Polypropylene (PP) |
Wall thickness, connection 1 | 12.5mm |
Wall thickness, connection 2 | 8.5mm |
ETIM Classification | EC003024 |
Length of connection 1 | 30mm |
Max. operating pressure at 20 °C | 16bar |
Connection 1 | Welding connection |
Surface treatment connection 1 | Untreated |
Shape | Straight |
Wrench width | 67mm |
DVGW quality mark for water | No |
With sealing rings/gaskets | Yes |
Eccentric | No |
Surface treatment connection 2 | Untreated |
Length of connection 2 | 75mm |
Model | 1-part |
Nominal diameter connection 2 | 2 1/2 inch (65) |
Main colour fitting | White |
Bend radius | 0mm |
Bend angle | 0° |
High tensile strength | No |
