| Label | Value |
|---|---|
Zeta value | 1.5 |
Main colour fitting | Green |
Length of connection 2 | 38mm |
Nominal diameter connection 1 | DN 25 |
Eccentric | No |
Connection 2 | Internal thread metric |
Wall thickness, connection 2 | 8.5mm |
DVGW quality mark for gas | No |
KIWA certified | No |
Flange compression class (ANSI) | Other |
Wrench width | 0mm |
Model | 1-part |
Material quality connection 1 | PP-R |
DVGW quality mark for water | No |
Bend radius | 0mm |
UL quality mark | No |
Standard Dimension Ratio (SDR) | 6 |
KOMO certified | No |
Wall thickness, connection 1 | 5mm |
Gastec QA mark | No |
Outer pipe diameter connection 1 | 35mm |
Flange compression class (PN) | Other |
Gastec QA - AR 214 (H2) | No |
ETIM Classification | EC003024 |
Working length connection 2 | 25mm |
Surface protection connection 1 | Untreated |
Working length connection 1 | 16mm |
System-specific | No |
Material quality connection 2 | Other |
Material connection 1 | Polypropylene (PP) |
With approval for TÜV | No |
DIN-CERTCO certificate | No |
Type approval according to BBR/EKS | No |
Length of connection 1 | 32mm |
Max. operating pressure at 20 °C | 16bar |
Flange compression class (BS) | Other |
Wrench width union nut | 0mm |
Nominal diameter connection 2 | 1/2 inch (15) |
Reducing | No |
ULC quality mark | No |
Flange compression class (JIS) | Other |
High tensile strength | No |
Length | 0mm |
With sealing rings/gaskets | Yes |
Surface protection connection 2 | Nickel-plated |
Material connection 2 | Brass |
Surface treatment connection 2 | Untreated |
Outer pipe diameter connection 2 | 38mm |
Medium temperature (continuous) | 0 - 75 |

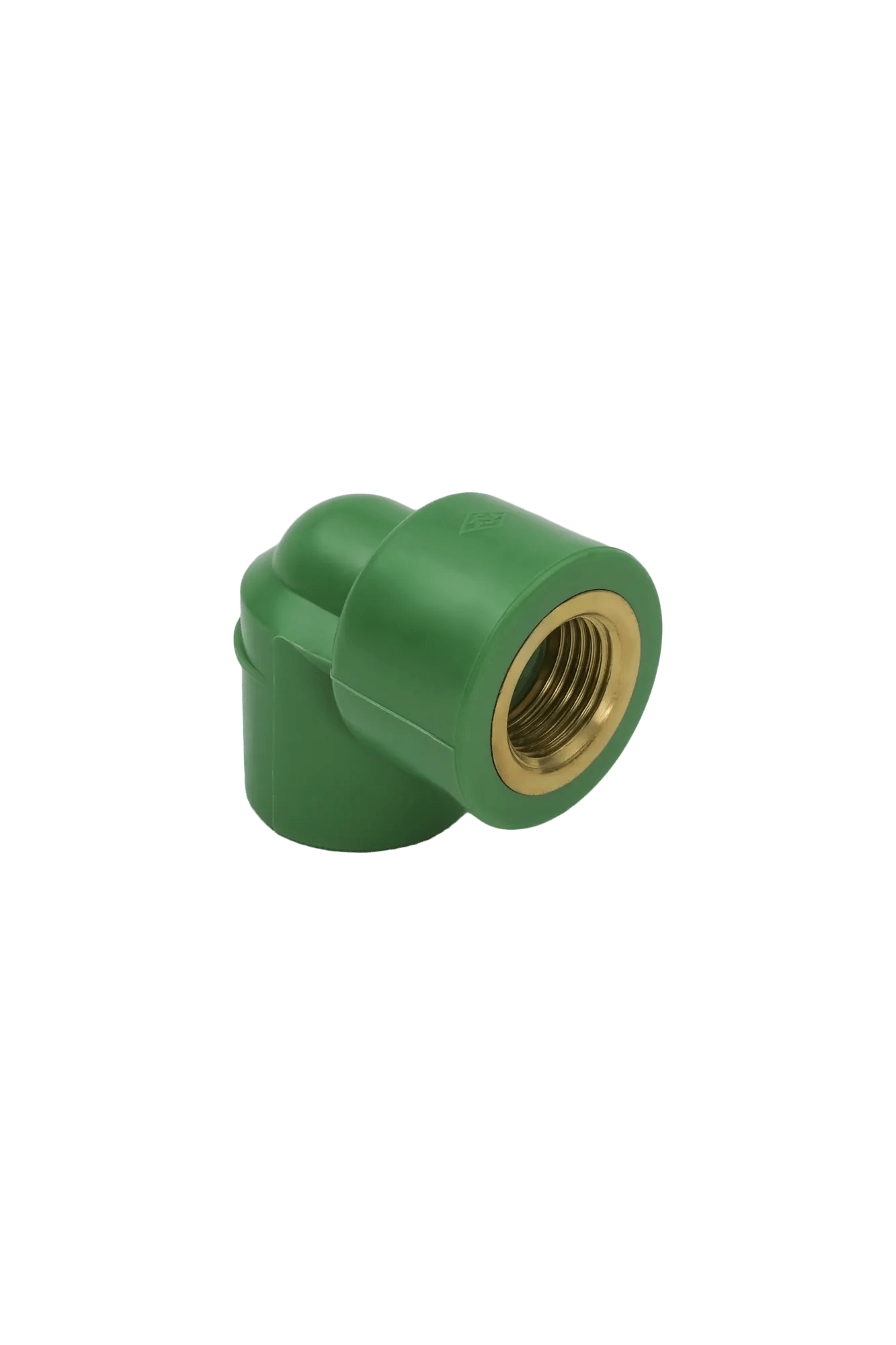

Shape | Bend |
Connection 1 | Welding connection |
Bend angle | 90° |
Surface treatment connection 1 | Untreated |
