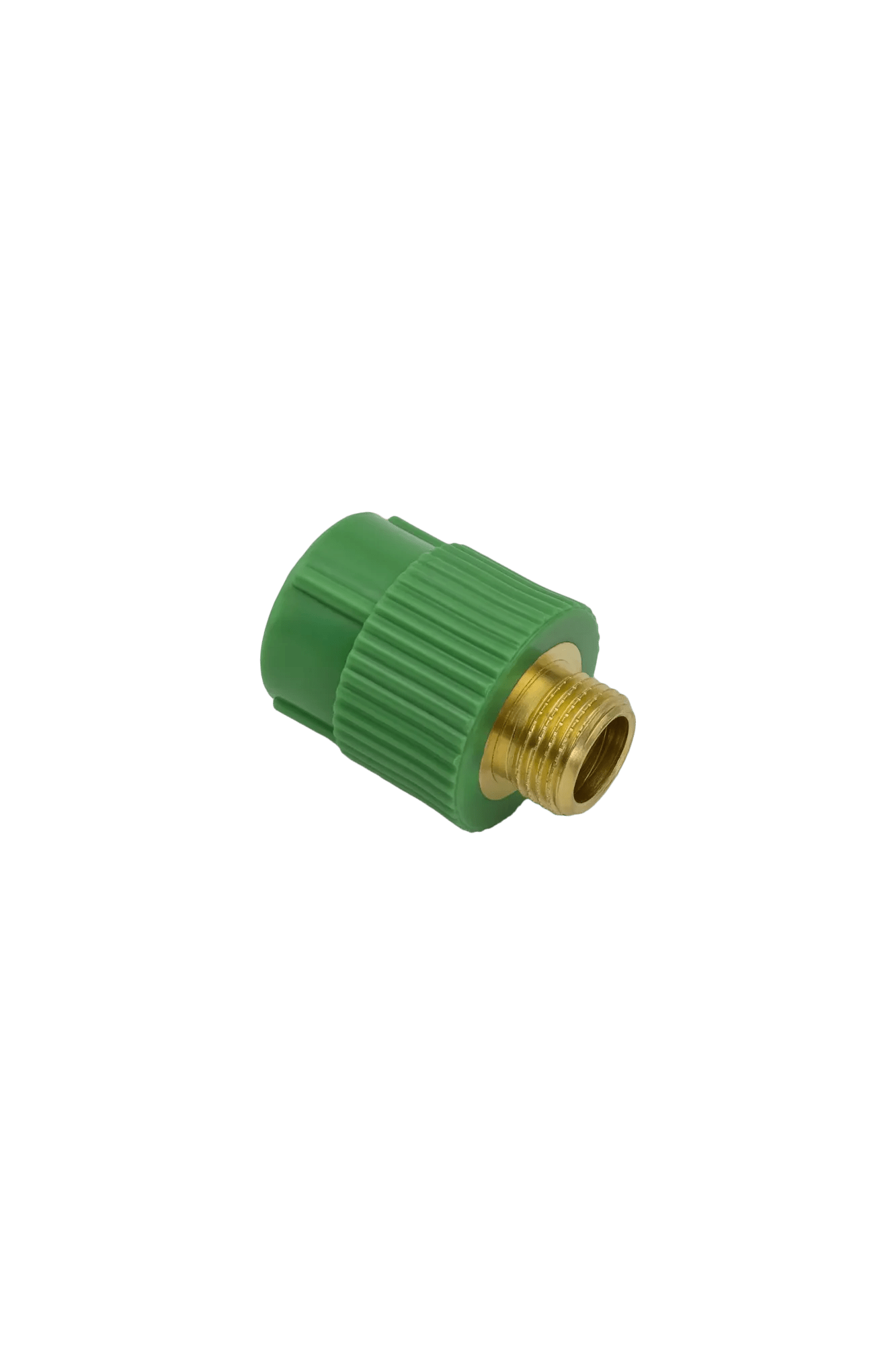

PPR Adaptor M.Metal Th. GN 20x3/4"
| 1 bag | 20 pieces |
|---|---|
| 1 box | 200 pieces |
| 1 pallet | 9600 pieces |
Product Identifiers
Catalog Code541812220119030000
EAN Number8680099049573
SAP number3033382
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polypropylene (PP) |
| Material quality connection 1 | PP-R |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Brass |
| Material quality connection 2 | Other |
| Surface protection connection 2 | Nickel-plated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Model | 1-part |
| Bend angle | 0° |
| Bend radius | 0mm |
| Reducing | No |
| Eccentric | No |
| System-specific | No |
| Nominal diameter connection 1 | DN 20 |
| Outer pipe diameter connection 1 | 29mm |
| Wall thickness, connection 1 | 4.5mm |
| Connection 1 | Welding connection |
| Nominal diameter connection 2 | 3/4 inch (20) |
| Outer pipe diameter connection 2 | 26mm |
| Wall thickness, connection 2 | 4mm |
| Connection 2 | External thread metric |
| Main colour fitting | Green |
| Zeta value | 0.4000 |
| High tensile strength | No |
| Length | 54mm |
| Length of connection 1 | 16mm |
| Working length connection 1 | 16mm |
| Length of connection 2 | 38mm |
| Working length connection 2 | 38mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 0 - 75 |
| Max. operating pressure at 20 °C | 16bar |
| Standard Dimension Ratio (SDR) | 6.0000 |
| With sealing rings/gaskets | Yes |
| DIN-CERTCO certificate | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
