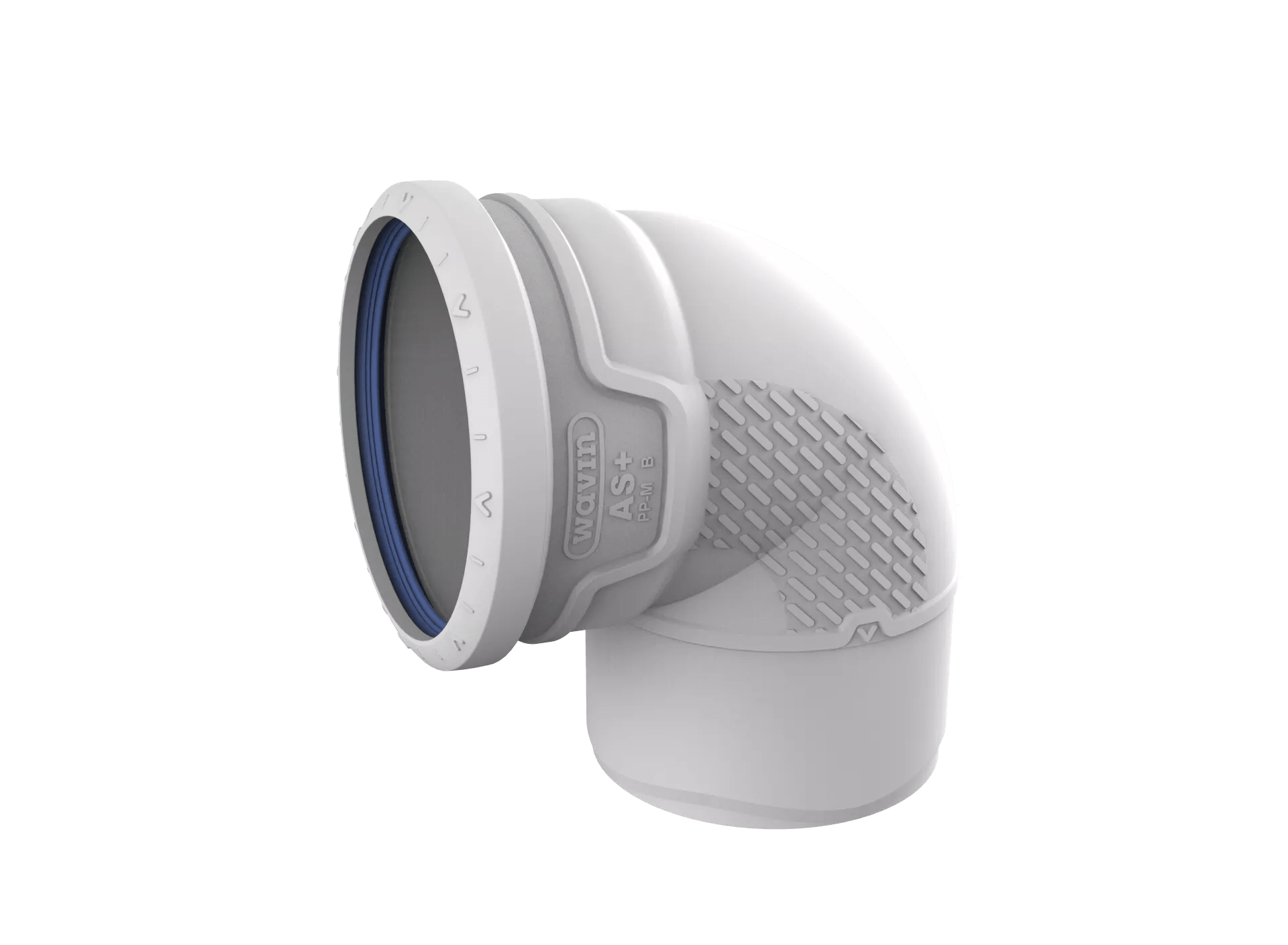

AS+ Bend DN 125 87°
Product Identifiers
Catalog Code
EAN Number4026294949548
SAP number3079958
Commercial
| Label | Value |
|---|---|
| Product Shape | Bend |
Technical Specifications
| Label | Value |
|---|---|
| Nominal Outside Diameter | 125mm |
| Bend Radius | 87mm |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polypropylene (PP) |
| Material quality connection 1 | Other |
| Surface protection connection 1 | Other |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polypropylene (PP) |
| Material quality connection 2 | Other |
| Surface protection connection 2 | Other |
| Surface treatment connection 2 | Untreated |
| Shape | Bend |
| Model | 1-part |
| Bend angle | 87° |
| Bend radius | 0mm |
| Reducing | No |
| System-specific | Yes |
| Nominal diameter connection 1 | DN 125 |
| Outer pipe diameter connection 1 | 125mm |
| Wall thickness, connection 1 | 5.23mm |
| Connection 1 | Slide end |
| Nominal diameter connection 2 | DN 125 |
| Outer pipe diameter connection 2 | 125mm |
| Wall thickness, connection 2 | 5.3mm |
| Connection 2 | Slide sleeve |
| Main colour fitting | Grey |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| Zeta value | 0.0000 |
| High tensile strength | No |
| Length | 196.6mm |
| Length of connection 1 | 254mm |
| Working length connection 1 | 168.4mm |
| Length of connection 2 | 254mm |
| Working length connection 2 | 254mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | -10 - 90 |
| Max. operating pressure at 20 °C | 0.5bar |
| Max. operating pressure at max. medium temperature | 0.5bar |
| With thermal insulation | No |
| Ring stiffness class | SN4 |
| Standard Dimension Ratio (SDR) | 23.5800 |
| With sealing rings/gaskets | Yes |
| Capped | No |
| DVGW quality mark for water | Yes |
| Gastec QA mark | No |
| KOMO certified | No |
