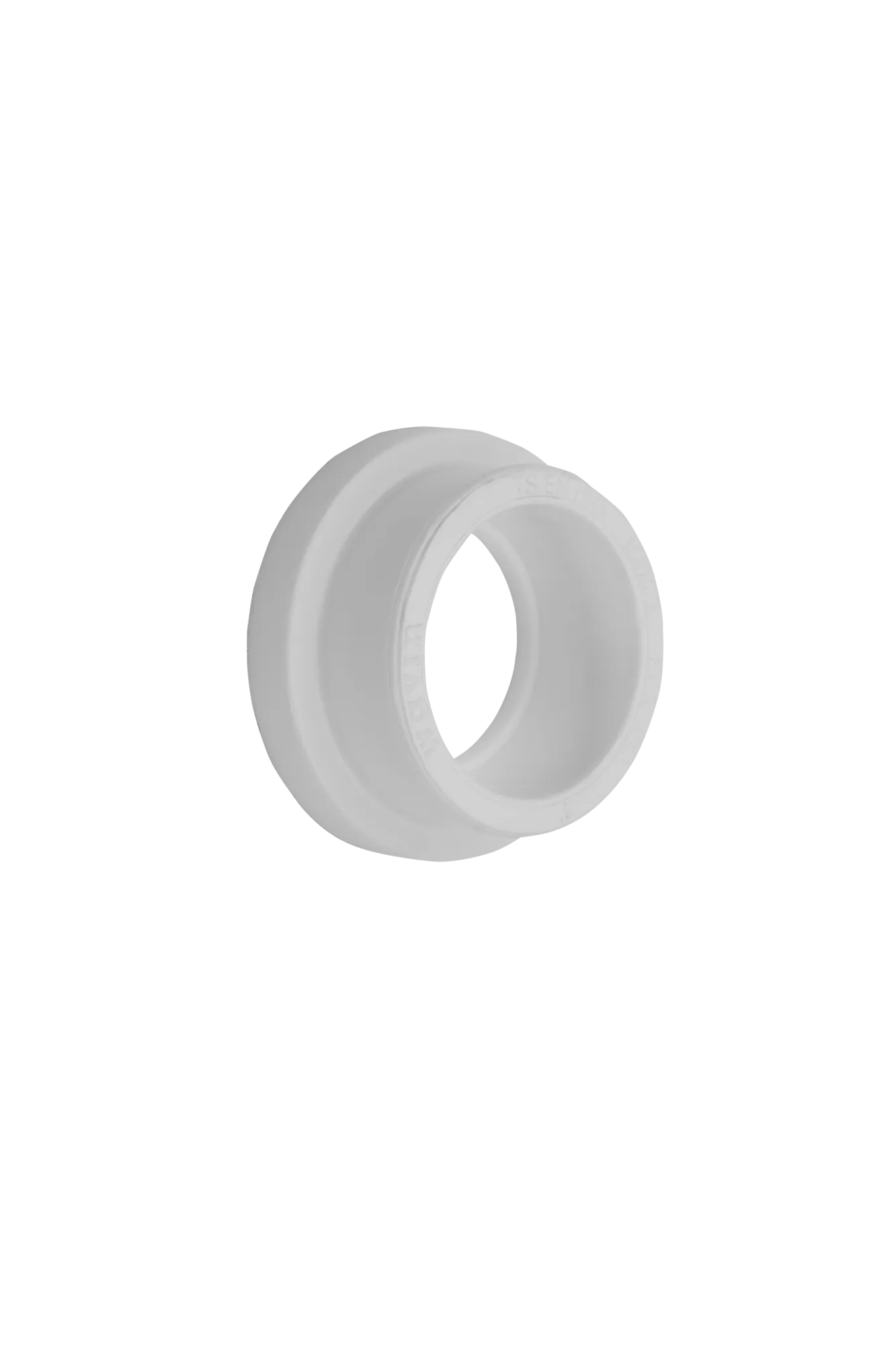

PPR Flange Adaptor WT 110
| 1 bag | 2 pieces |
|---|---|
| 1 box | 20 pieces |
| 1 pallet | 1200 pieces |
Product Identifiers
Catalog Code
EAN Number8680099039659
SAP number3051170
| 1 bag | 2 pieces |
|---|---|
| 1 box | 20 pieces |
| 1 pallet | 1200 pieces |
| Label | Value |
|---|---|
| ETIM Classification | EC010256 |
| Material | Polypropylene (PP) |
| Material quality | PP-R |
| Nominal diameter | DN 110 |
| Diameter (metric) | 109.0000 |
| Outer pipe diameter | 110mm |
| Outer diameter, flanged bush | 150.5mm |
| Outer diameter, flange edge | 41.5mm |
| Connection | Welding connection |
| Connection 1 only for butt weld | No |
| Sealing surface | Flat |
| Max. operating pressure at 20 °C | 20bar |
| Length | 50mm |
| Working length | 0mm |
| Creased | No |
| Colour | White |
| Transparent | No |
