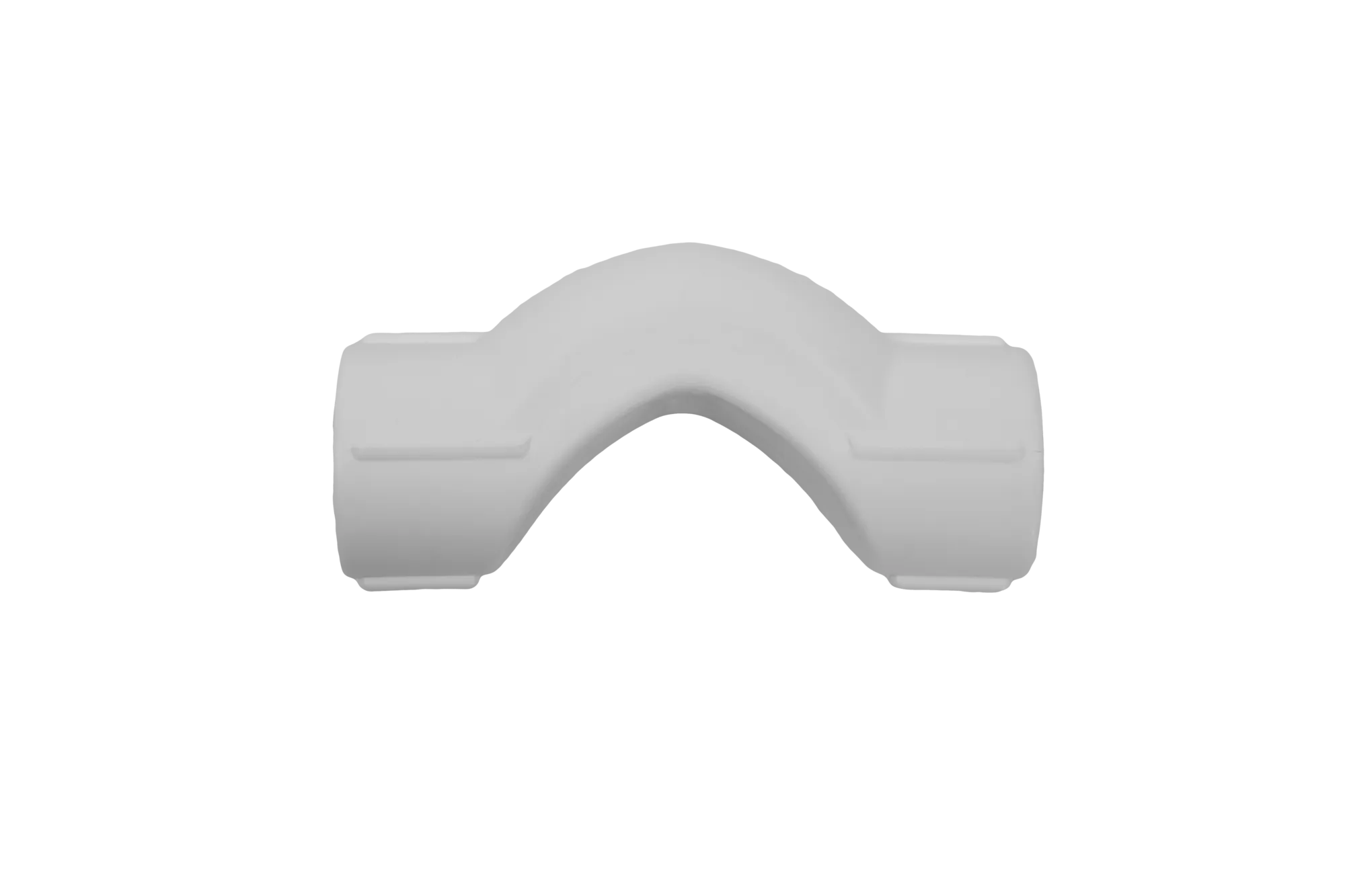

PPR Short Bridge WT 25
| 1 bag | 25 pieces |
|---|---|
| 1 box | 150 pieces |
Product Identifiers
Catalog Code
EAN Number8680099332965
SAP number4047831
| 1 bag | 25 pieces |
|---|---|
| 1 box | 150 pieces |
| Label | Value |
|---|---|
Surface treatment connection 1 | Untreated |
Length of connection 1 | 46mm |
Connection 1 | Welding connection |
With approval for TÜV | No |
Zeta value | 4.3 |
Wall thickness, connection 2 | 6mm |
Bend angle | 0° |
Surface protection connection 2 | Untreated |
Surface protection connection 1 | Untreated |
Wrench width | 0mm |
Bend radius | 0mm |
Surface treatment connection 2 | Untreated |
Wall thickness, connection 1 | 6mm |
Wrench width union nut | 0mm |
Material quality connection 1 | PP-R |
Connection 2 | Welding connection |
DVGW quality mark for water | No |
Outer pipe diameter connection 1 | 37mm |
System-specific | No |
DIN-CERTCO certificate | No |
DVGW quality mark for gas | No |
Length | 92mm |
Shape | Bend |
Material connection 1 | Polypropylene (PP) |
High tensile strength | No |
With sealing rings/gaskets | Yes |
Model | 1-part |
Medium temperature (continuous) | 0 - 75 |
Working length connection 1 | 30mm |
Material quality connection 2 | PP-R |
Outer pipe diameter connection 2 | 37mm |
Reducing | No |
Length of connection 2 | 46mm |
Working length connection 2 | 30mm |
Nominal diameter connection 1 | DN 25 |
Nominal diameter connection 2 | DN 25 |
Standard Dimension Ratio (SDR) | 6 |
Material connection 2 | Polypropylene (PP) |
Main colour fitting | White |
Max. operating pressure at 20 °C | 20bar |
ETIM Classification | EC003024 |
