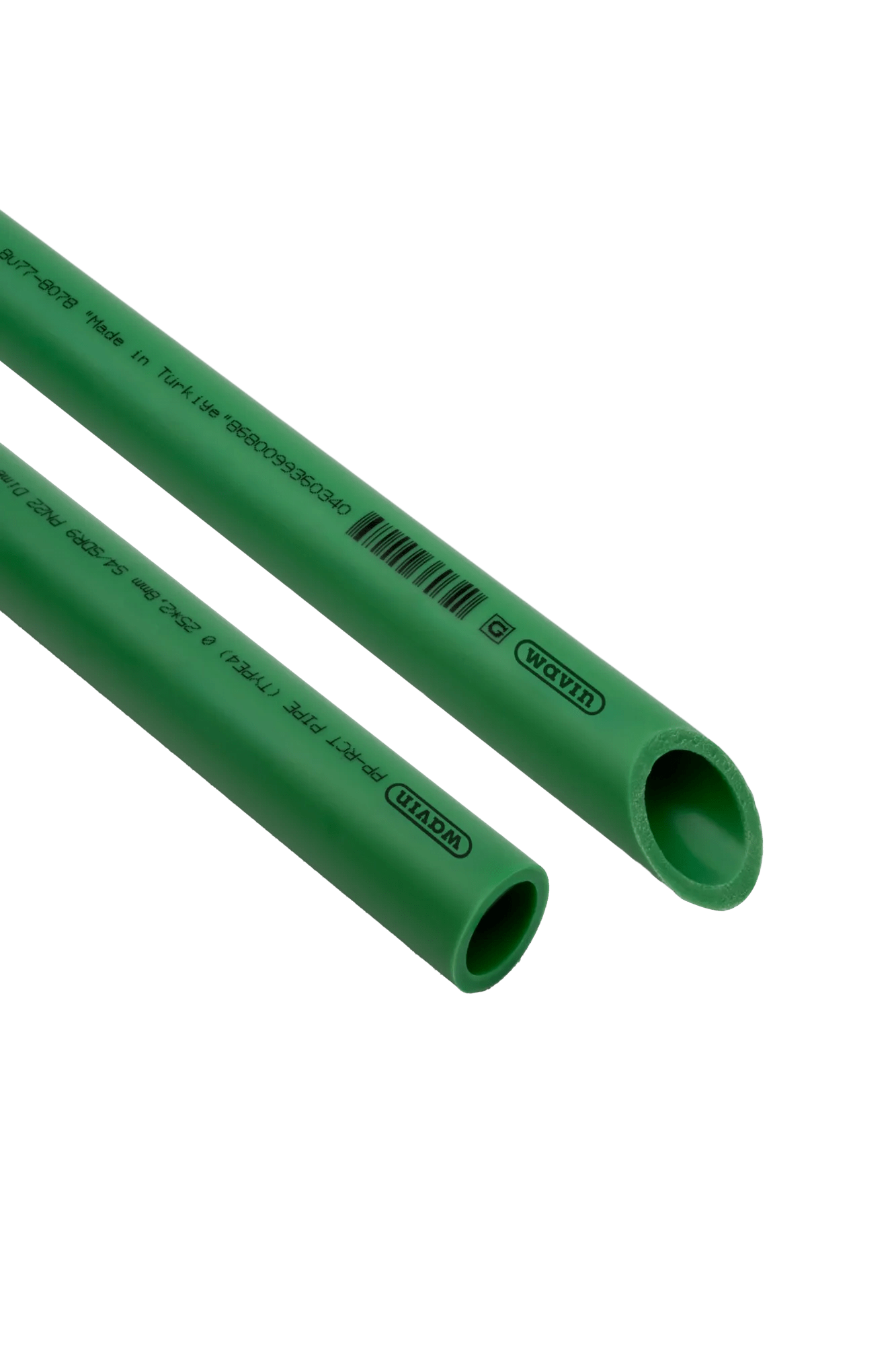

PPRCT Pipe GN 110/22 L=4
| 1 bundle | 1 pieces |
|---|
Product Identifiers
Catalog Code
EAN Number8680099360418
SAP number3065550
| Label | Value |
|---|---|
| ETIM Classification | EC010882 |
| Material quality | Other |
| Nominal diameter | Other |
| Outer pipe diameter | 110mm |
| Wall thickness | 12.3mm |
| Connection 1 | Tube end |
| Connection 2 | Tube end |
| Article compression class | Other |
| Standard Dimension Ratio (SDR) | 9.0000 |
| Capped | No |
| Chamfered | No |
| With mantle pipe | No |
| Outer diameter mantle pipe | 0mm |
| Pipe colour | Green |
| RAL-number pipe | 0.0000 |
| Number of sealing rings, sleeve | 0.0000 |
| Wall roughness | 0mm |
| Expansion coefficient | 0.15mm/(m⋅K) |
| Lambda value | 0.24W/(m⋅K) |
| Flexible | No |
| Min. bending radius | 0mm |
| Medium temperature | 0 |
| With thermal insulation | No |
| Outer diameter thermal insulation | 0mm |
| Thickness of thermal insulation | 0mm |
| With heating cable | No |
| UV resistant | No |
| Type approval according to BBR/EKS | No |
