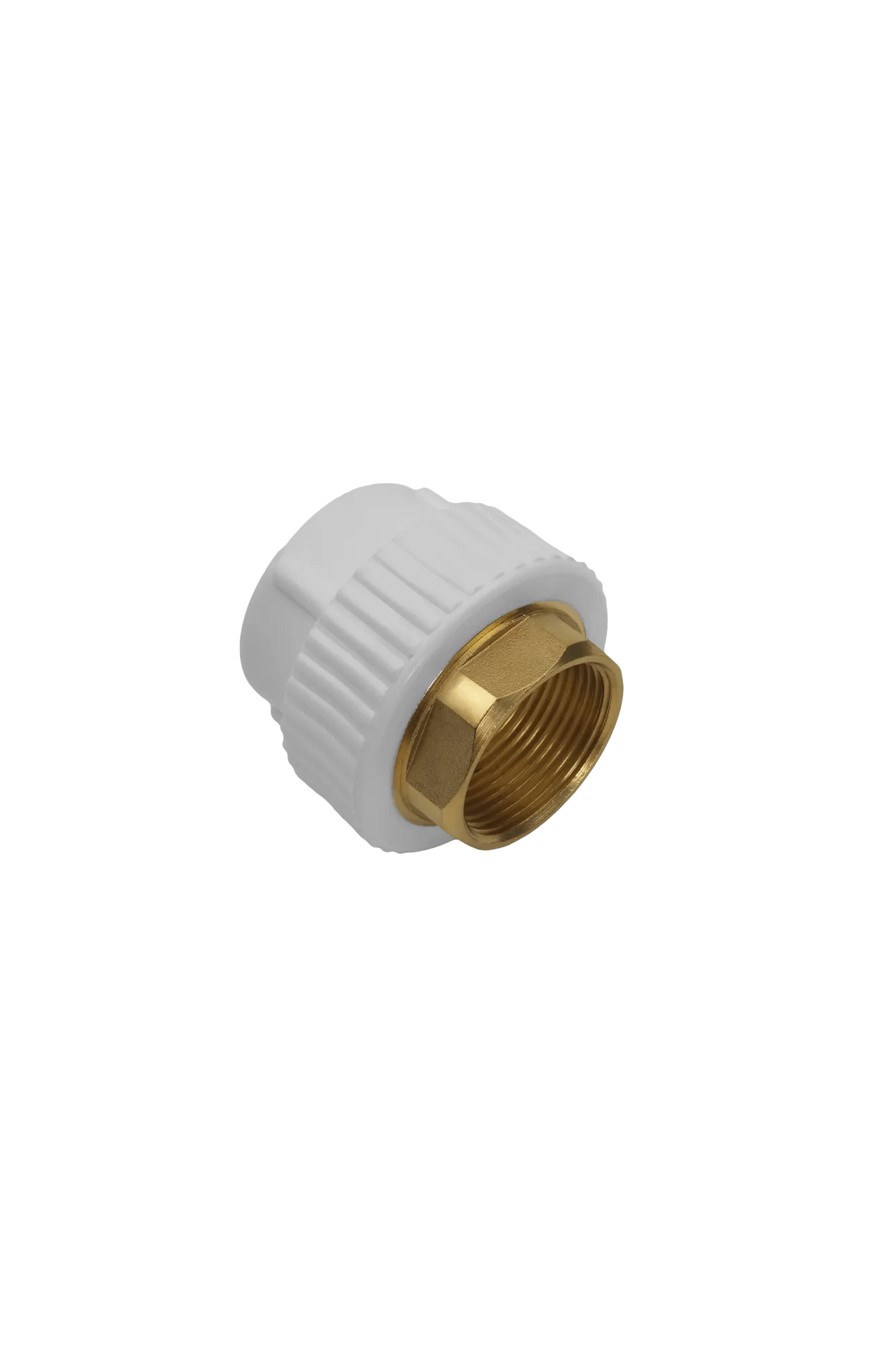

PPR Union M.Metal Th. WT 20x1/2"
| 1 bag | 10 pieces |
|---|---|
| 1 box | 120 pieces |
| 1 pallet | 7200 pieces |
Product Identifiers
Catalog Code
EAN Number8680099039499
SAP number3051158
| 1 bag | 10 pieces |
|---|---|
| 1 box | 120 pieces |
| 1 pallet | 7200 pieces |
| Label | Value |
|---|---|
Length of connection 2 | 30mm |
Max. operating pressure at 20 °C | 20bar |
Material quality connection 2 | Other |
Working length connection 2 | 30mm |
Shape | Straight |
Material connection 2 | Brass |
Connection 2 | External thread metric |
Length | 40mm |
DIN-CERTCO certificate | No |
Nominal diameter connection 2 | 1/2 inch (15) |
Main colour fitting | White |
DVGW quality mark for gas | No |
Bend radius | 0mm |
Material connection 1 | Polypropylene (PP) |
DVGW quality mark for water | No |
Wall thickness, connection 1 | 4.5mm |
Connection 1 | Welding connection |
Surface treatment connection 1 | Untreated |
Zeta value | 8.3 |
Model | 1-part |
Surface protection connection 1 | Untreated |
Outer pipe diameter connection 1 | 29mm |
Wrench width union nut | 0mm |
Surface protection connection 2 | Nickel-plated |
Reducing | No |
Length of connection 1 | 30mm |
Bend angle | 0° |
Outer pipe diameter connection 2 | 21mm |
Surface treatment connection 2 | Untreated |
Medium temperature (continuous) | 0 - 75 |
Working length connection 1 | 15mm |
Wrench width | 0mm |
Material quality connection 1 | PP-R |
Eccentric | No |
With approval for TÜV | No |
Wall thickness, connection 2 | 3mm |
Nominal diameter connection 1 | DN 20 |
Standard Dimension Ratio (SDR) | 6 |
System-specific | No |
High tensile strength | No |
ETIM Classification | EC003024 |
With sealing rings/gaskets | Yes |
