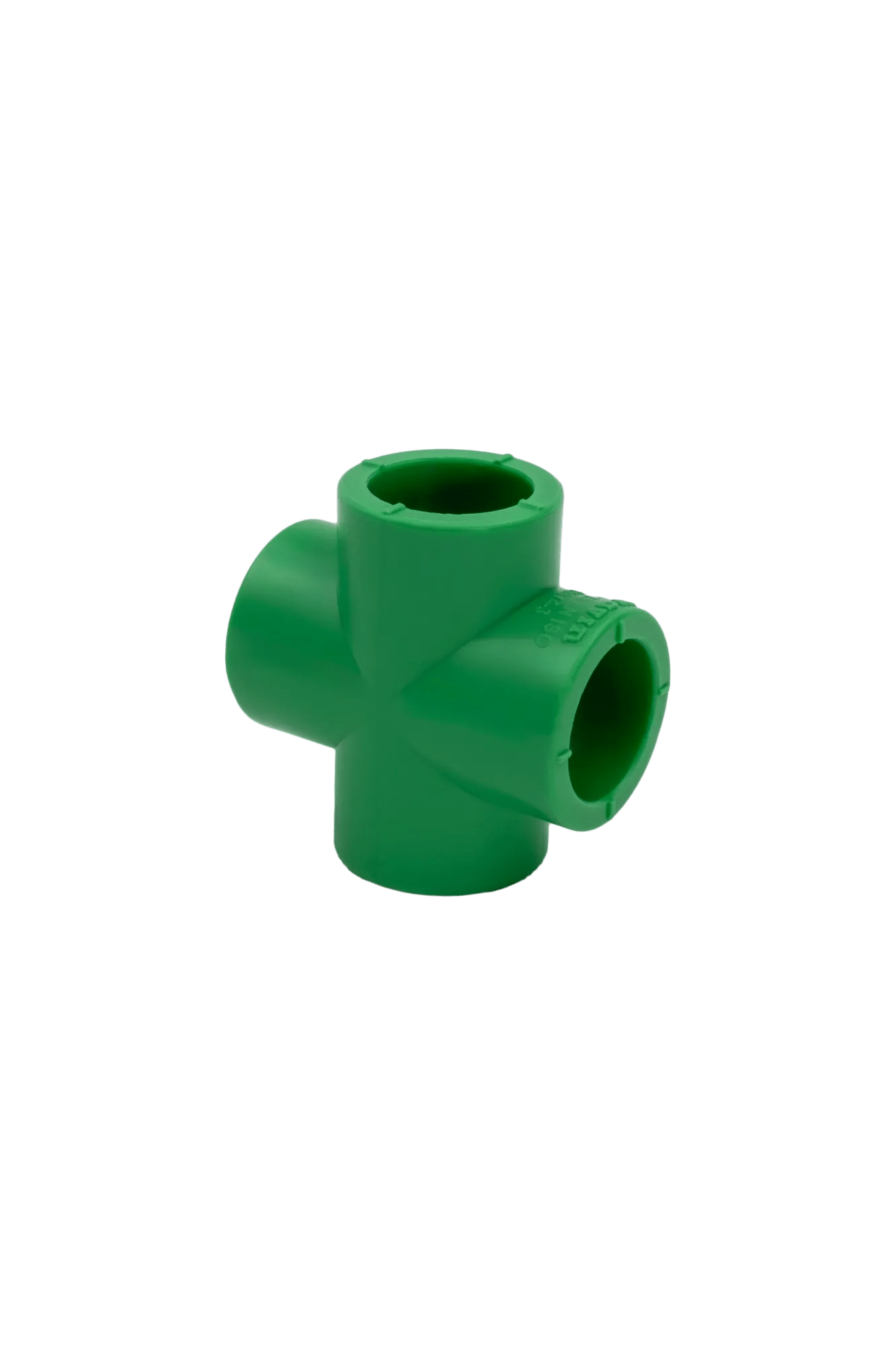

PPR Cross Tee GN 25
| 1 bag | 15 pieces |
|---|---|
| 1 box | 150 pieces |
| 1 pallet | 9000 pieces |
Product Identifiers
Catalog Code541812160021000000
EAN Number8680099049207
SAP number3033320
| 1 bag | 15 pieces |
|---|---|
| 1 box | 150 pieces |
| 1 pallet | 9000 pieces |
| Label | Value |
|---|---|
ETIM Classification | EC003026 |
Material | Polypropylene (PP) |
Material quality | PP-R |
Surface protection | Untreated |
Surface treatment | Untreated |
Model | Cross piece 90° |
Swept entry type (with inner radius) | No |
Reducing | No |
Multi-part | No |
System-specific | No |
Nominal diameter connection 1 | DN 25 |
Outer pipe diameter connection 1 | 33mm |
Wall thickness, connection 1 | 4mm |
Connection 1 | Welding connection |
Nominal diameter connection 2 | DN 25 |
Outer pipe diameter connection 2 | 33mm |
Wall thickness, connection 2 | 4mm |
Connection 2 | Welding connection |
Nominal diameter connection 3 | DN 25 |
Outer pipe diameter connection 3 | 33mm |
Wall thickness, connection 3 | 4mm |
Connection 3 | Welding connection |
Nominal diameter connection 4 | DN 25 |
Outer pipe diameter connection 4 | 33mm |
Wall thickness, connection 4 | 4mm |
Connection 4 | Welding connection |
Contour code | Other |
Flange compression class | Other |
Flange standard | DIN |
Main colour fitting | Green |
Length of connection 1 | 30mm |
Working length connection 1 | 14mm |
Length of connection 2 | 30mm |
Working length connection 2 | 14mm |
Length of connection 3 | 30mm |
Working length connection 3 | 14mm |
Length of connection 4 | 30mm |
Working length connection 4 | 14mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Max. operating pressure at 20 °C | 16bar |
Ring stiffness class | Other |
Standard Dimension Ratio (SDR) | 6.0000 |
With sealing rings/gaskets | Yes |
With buffer stud | No |
Capped | No |
FM quality mark | No |
LPCB quality mark | No |
ULC quality mark | No |
UL quality mark | No |
DVGW quality mark for gas | Yes |
DVGW quality mark for water | Yes |
