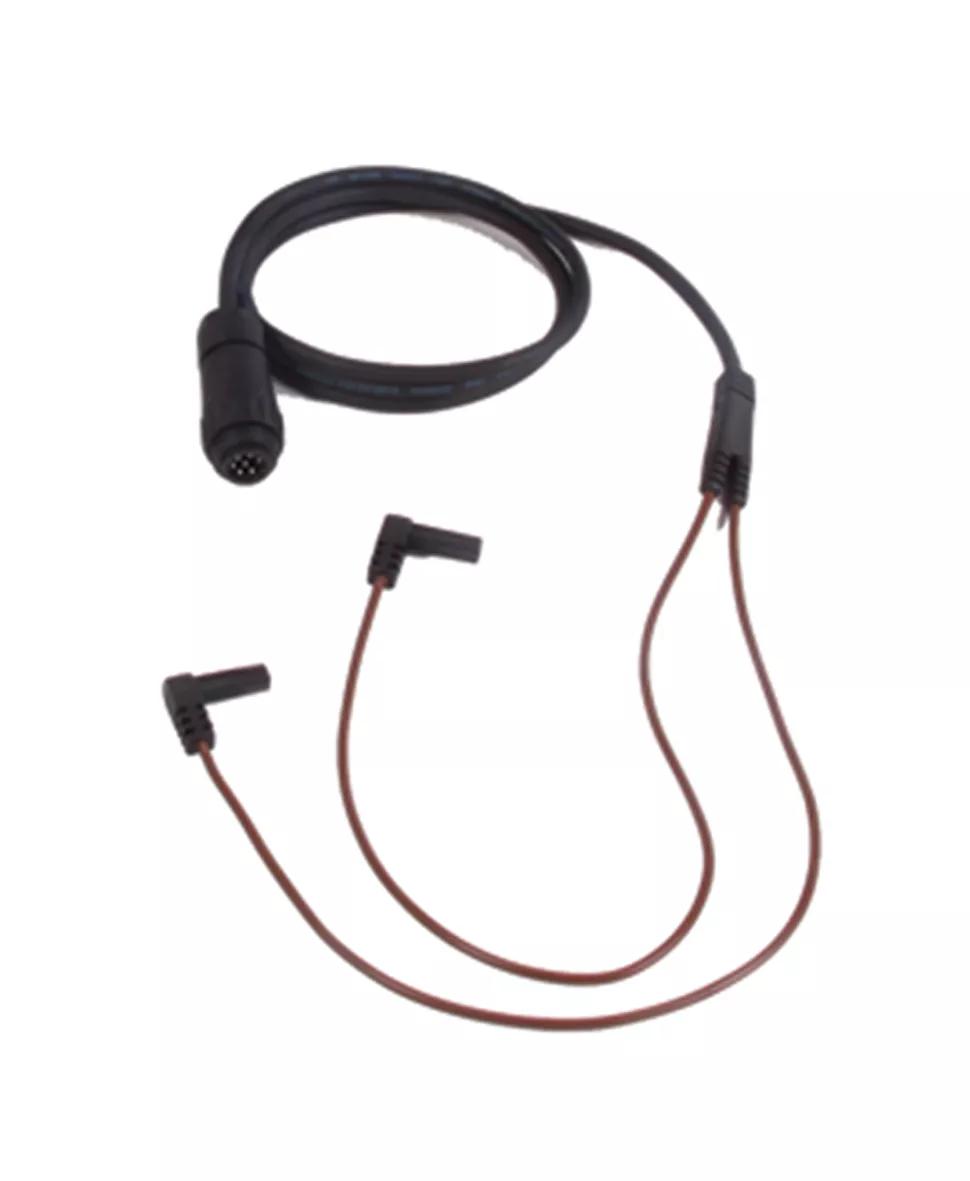

Svetskabel DN200-315, Brun
Specifikationer för artikeln
Katalogkod Wavin4036332
EAN nummer7611704459570
RSK
ENR
Artikelnummer4036332
| Label | Value |
|---|---|
| ETIM Classification | EC003250 |
| Conductor material | Övrigt |
| Conductor surface | Övrigt |
| AWG size | 8 |
| Nominal cross section conductor (AWG) | 8kcmil |
| Nominal cross section conductor | 8mm² |
| Conductor category | Class 1 = solid |
| Conductor resistance at 20 °C | 0.1Ohm/km |
| Number of cores | 1.0000 |
| Screen over stranding element | Övrigt |
| Stranding element | Pairs |
| Screen over stranding | Övrigt |
| Core insulation material | Övrigt |
| Specification core insulation | Övrigt |
| Core identification according to HD 308 S2 | Yes |
| Core identification | Färg |
| With protective conductor | Yes |
| Suspension element | Övrigt |
| Material outer sheath | Övrigt |
| Färg på yttre mantel | Brun |
| Cable geometry | Rund |
| Torsion resistant | No |
| Reaction-to-fire class according to EN 13501-6 | None |
| Smoke development class according to EN 13501-6 | None |
| Euro class flaming droplets/particles according to EN 13501-6 | d0 |
| Euro class acidity according to EN 13501-6 | None |
| Oil resistant according to IEC 60811-404 | No |
| Low temperature resistant (acc. EN 60811-504+505+506) | No |
| Cable width approx. | 4mm |
| Cable height approx. | 200mm |
| Outer diameter approx. | 4mm |
| Min. permitted bending radius, moving application with forced guidance | 0mm |
| Min. permitted bending radius, moving application/free movement | 0mm |
| Min. permitted bending radius, stationary application/permanent installation | 0mm |
| Permitted cable outer temperature during assembling/handling | 0 |
| Permitted cable outer temperature after assembling without vibration | 0 |
| Nominal voltage U0 | 18V |
| Nominal voltage U | 18V |
| Shape of conductor | Rund |
