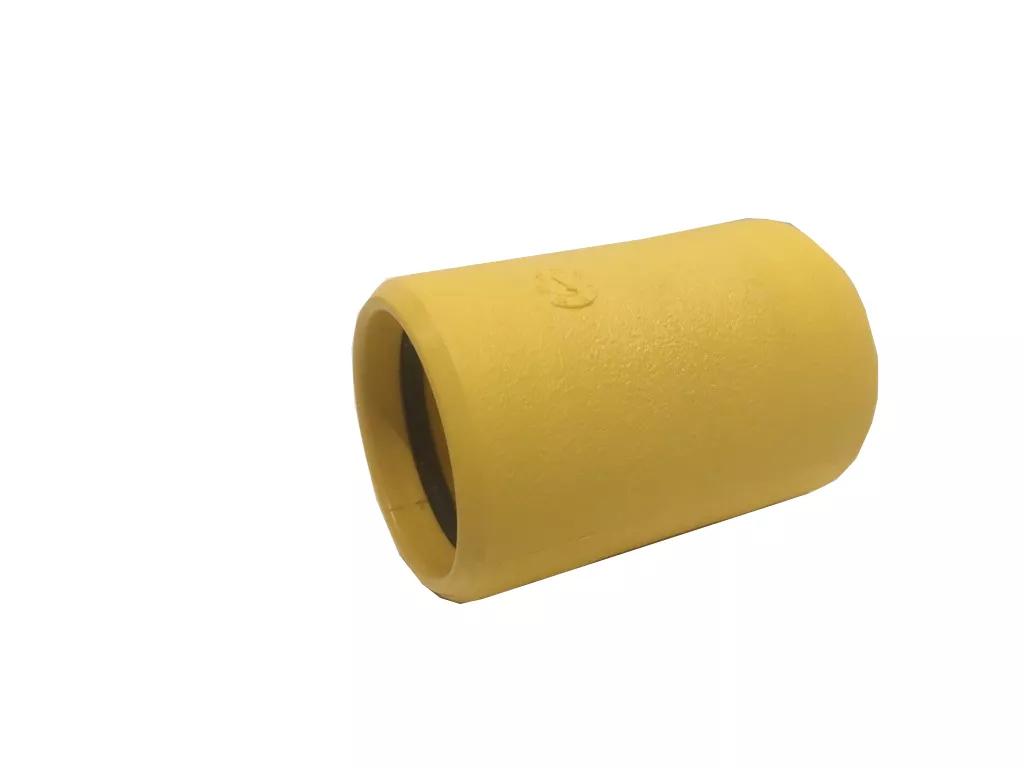

DSM Connector DN40
Product Identifiers
Catalog Code
EAN Number4026294026881
NRF3111137
EL2860015
NOB60496714
SAP number3017506
Commercial
| Label | Value |
|---|---|
| Product Shape | Coupler |
| EL | 2860015 |
| NRF | 3111137 |
| NOB | 60496714 |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polyvinyl chloride (PVC) |
| Material quality connection 1 | PVC-U |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polyvinyl chloride (PVC) |
| Material quality connection 2 | PVC-U |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Model | 1-part |
| Bend angle | 0° |
| Bend radius | 0mm |
| Reducing | No |
| Eccentric | No |
| System-specific | Yes |
| Nominal diameter connection 1 | DN 40 |
| Outer pipe diameter connection 1 | 40mm |
| Wall thickness, connection 1 | 5mm |
| Connection 1 | Slide sleeve |
| Contour code connection 1 | Other |
| Nominal diameter connection 2 | DN 40 |
| Outer pipe diameter connection 2 | 40mm |
| Wall thickness, connection 2 | 5mm |
| Connection 2 | Slide sleeve |
| Contour code connection 2 | Other |
| Main colour fitting | Yellow |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| Zeta value | 0.0000 |
| High tensile strength | No |
| Length | 60mm |
| Length of connection 1 | 30mm |
| Working length connection 1 | 30mm |
| Length of connection 2 | 30mm |
| Working length connection 2 | 30mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 5 - 40 |
| Max. operating pressure at 20 °C | 0bar |
| Max. operating pressure at max. medium temperature | 0bar |
| With thermal insulation | No |
| Ring stiffness class | Other |
| Standard Dimension Ratio (SDR) | 0.0000 |
| Capped | No |
| DIN-CERTCO certificate | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
