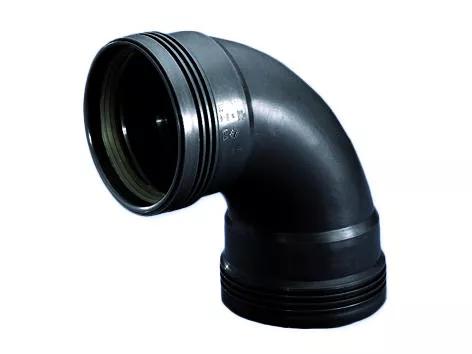

Wafix PP Plus Long Bend 88.5° BK 110
Product Identifiers
Catalog Code
EAN Number5708525396022
NRF2215376
EL
NOB43835241
SAP number3062113
Commercial
| Label | Value |
|---|---|
| Product Shape | Bend |
| NRF | 2215376 |
| NOB | 43835241 |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polypropylene (PP) |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polypropylene (PP) |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Bend |
| Model | 1-part |
| Bend angle | 88.5° |
| Bend radius | 95mm |
| Reducing | No |
| Eccentric | No |
| System-specific | No |
| Nominal diameter connection 1 | DN 110 |
| Outer pipe diameter connection 1 | 110mm |
| Wall thickness, connection 1 | 3.4mm |
| Connection 1 | Slide sleeve |
| Nominal diameter connection 2 | DN 110 |
| Outer pipe diameter connection 2 | 110mm |
| Wall thickness, connection 2 | 3.4mm |
| Connection 2 | Slide sleeve |
| Main colour fitting | Black |
| Material sealing | Thermoplastic elastomer (TPE) |
| With buffer stud | Yes |
| Zeta value | 0.0000 |
| High tensile strength | No |
| Length | 220mm |
| Length of connection 1 | 156mm |
| Working length connection 1 | 96mm |
| Length of connection 2 | 156mm |
| Working length connection 2 | 96mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 1 - 100°C |
| Max. operating pressure at 20 °C | 90bar |
| Max. operating pressure at max. medium temperature | 0.5bar |
| With thermal insulation | No |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | Yes |
| Capped | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
