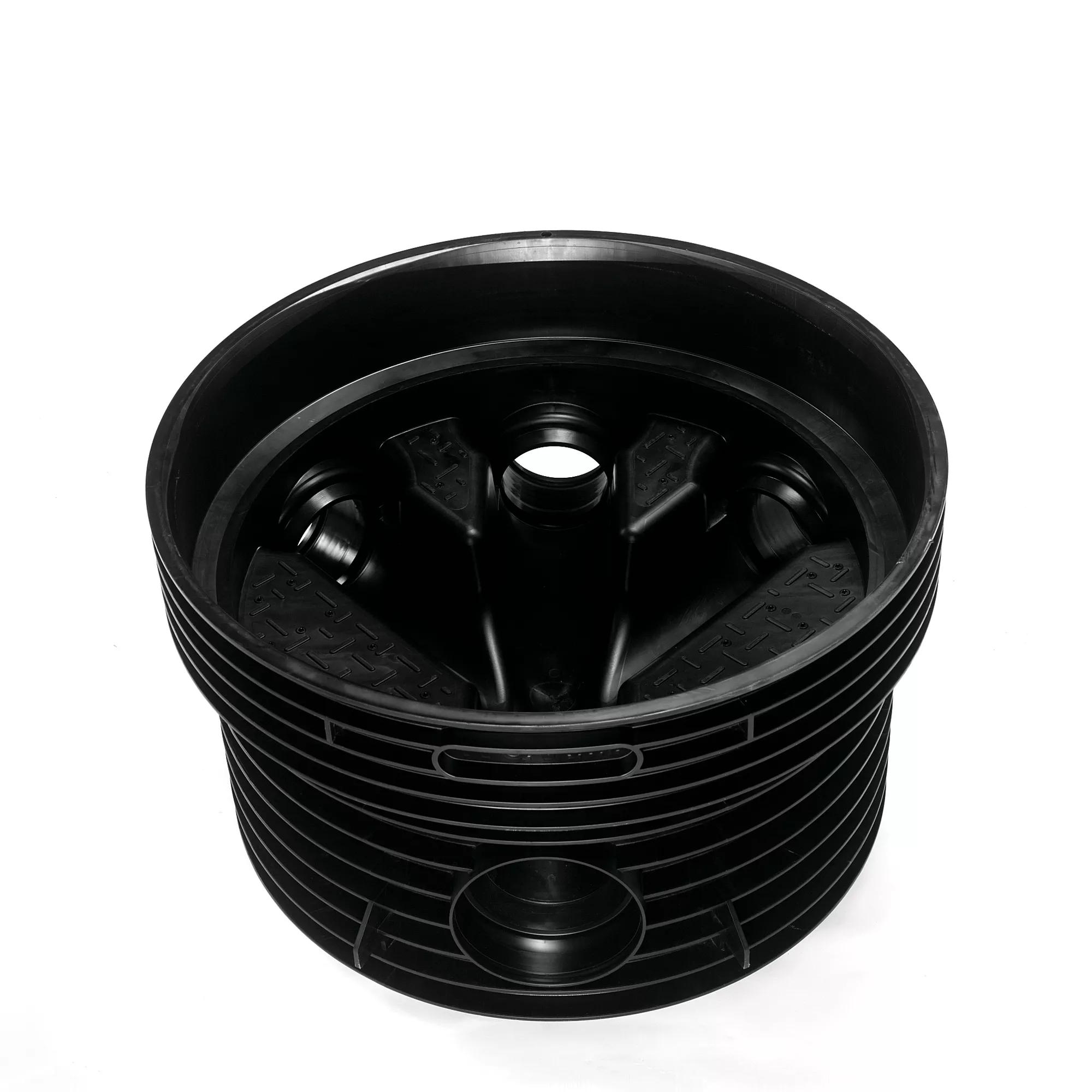

1000x250 G2 Tegra TP2 45° SW BQ 4.5
Product Identifiers
Catalog Code
EAN Number5708525450892
NRF3225472
EL
NOB60566741
SAP number3062929
Commercial
| Label | Value |
|---|---|
| NRF | 3225472 |
| NOB | 60566741 |
| Label | Value |
|---|---|
| ETIM Classification | EC003265 |
| Material | Polypropylene (PP) |
| Height ground level - inner bottom side pipe | 5000mm |
| Nominal diameter shaft | 1000 mm |
| Inner diameter | 1109mm |
| Outer diameter | 1188mm |
| Straight flow profile | Yes |
| Flat bottom | Yes |
| Number of connections | 4.0000 |
| Connection outlet | Sleeve |
| Nominal diameter outlet | Other |
| Direction of outlet | Horizontal |
| Number of extra inlets | 0.0000 |
| Connection inlets | Sleeve |
| Nominal diameter inlet | Other |
| Inlets capped | Yes |
| With solid shaft | No |
| Colour | Black |
