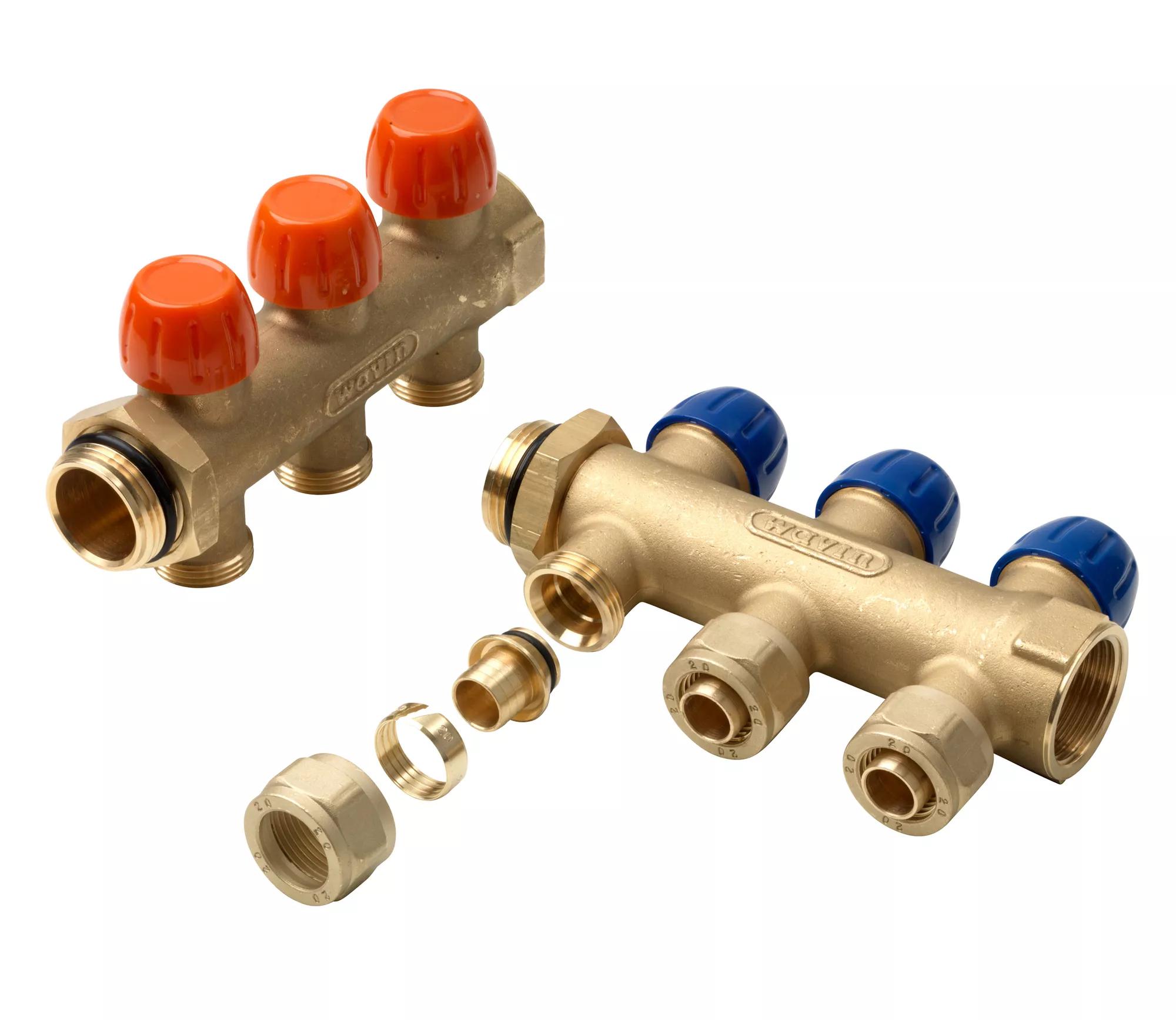

Tempower 2Por Manif. Set 1" EX CON.SET
Product Identifiers
Catalog Code
EAN Number5708525423322
NRF8355574
EL
NOB
SAP number3065461
Commercial
| Label | Value |
|---|---|
NRF | 8355574 |
| Label | Value |
|---|---|
ETIM Classification | EC003885 |
Suitable for tap water | No |
Suitable for central heating water | Yes |
Suitable for cooling water | Yes |
Suitable for compressed air | No |
Suitable for glycol | No |
Mounting method | Surface mounting |
Model | Distributor/collector |
Material | Brass |
Material quality | Other |
Surface protection | Untreated |
Nominal diameter connection 1 | 1 inch (25) |
Shape | Throughflow with straight branches |
Outer pipe diameter connection 1 | 0mm |
Connection 1 | Other |
Nominal diameter connection 2 | 1 inch (25) |
Outer pipe diameter connection 2 | 0mm |
Connection 2 | Other |
Number of branches | 2.0000 |
Number of branching directions | 1.0000 |
Nominal diameter branches | Other |
Outer pipe diameter branches | 0mm |
Distance between offset | 50mm |
Deviant distance between branches | No |
Article compression class | PN 10 |
Max. medium temperature (continuous) | 70°C |
Zeta value | 0.0000 |
System-specific | Yes |
With filling- and draining valve | No |
With shut off valve | Yes |
With de-aeration | No |
With wall-mounting bracket | No |
With mounting material | No |
With legs | No |
With insulation | No |
Width | 114mm |
Height | 0mm |
Depth | 0mm |
Length distributor | 0mm |
Distributor working length | 0mm |
Length of connection 1 | 0mm |
Working length connection 1 | 0mm |
Length of connection 2 | 0mm |
Working length connection 2 | 0mm |
Length of branch | 0mm |
Branch working length | 0mm |
Venturi nozzle | None |
