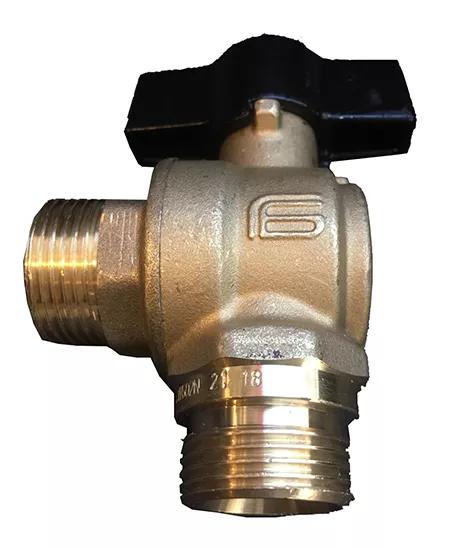

Ball Valve 3/4" M/M 90°
Product Identifiers
Catalog Code
EAN Number5708525530686
NRF5114246
EL
NOB
SAP number4063511
| Label | Value |
|---|---|
| NRF | 5114246 |
| Label | Value |
|---|---|
| ETIM Classification | EC011343 |
| Material quality | Other |
| Material ball seal | Polytetrafluoroethylene (PTFE) |
| Material ball | Brass |
| Material spindle | Brass |
| Material primary spindle seal | Polytetrafluoroethylene (PTFE) |
| Material secondary spindle seal | Ethylene-propylene diene monomer rubber (EPDM) |
| Nominal diameter connection 1 | 3/4 inch (20) |
| Outer pipe diameter connection 1 | 26mm |
| Connection 1 | Other |
| With coupling connection 1 | No |
| Nominal diameter connection 2 | 3/4 inch (20) |
| Outer pipe diameter connection 2 | 26mm |
| Connection 2 | Groove |
| With coupling connection 2 | No |
| Sealing | Polytetrafluoroethylene (PTFE) |
| Article compression class | Other |
| Flange compression class | Other |
| With drain valve | No |
| With drain possibility (connection) | No |
| With non-return valve | No |
| With thermometer | No |
| Model | Other |
| With insulation shell | No |
| FM quality mark | No |
| UL quality mark | No |
| ULC quality mark | No |
| LPCB quality mark | No |
| Fire-safe | Yes |
| Max. pressure difference at 20 °C | 10bar |
| Medium temperature (continuous) | 0 |
| Operation | Lever handle |
| Full bore | Yes |
| Length of connection 1 | 10.5mm |
| Length of connection 2 | 8.2mm |
| Handle height | 28mm |
| Handgrip length | 56mm |
| Angle of the valve | 90° |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
