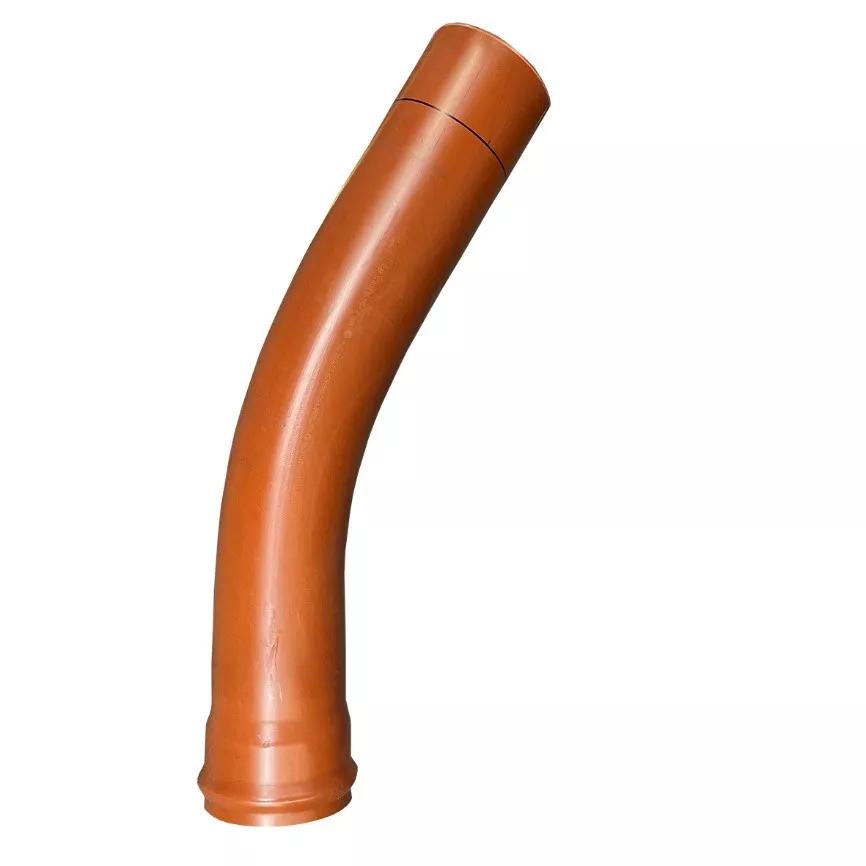

PVC Bend Long Radius 30° RB 160 R=560
Product Identifiers
Catalog Code
EAN Number5708525252618
NRF2230298
EL
NOB60611994
SAP number4056061
| Label | Value |
|---|---|
NOB | 60611994 |
NRF | 2230298 |
| Label | Value |
|---|---|
Eccentric | No |
Material connection 2 | Polyvinyl chloride (PVC) |
FM quality mark | No |
Length of connection 2 | 0mm |
Nominal diameter connection 2 | DN 160 |
Bend radius | 560mm |
Main colour fitting | Orange |
System-specific | No |
Material quality connection 2 | PVC-U |
Shape | Bend |
Material connection 1 | Polyvinyl chloride (PVC) |
Max. operating pressure at 20 °C | 0bar |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
Zeta value | 0 |
Outer pipe diameter connection 2 | 160mm |
With thermal insulation | No |
Reducing | No |
ETIM Classification | EC003024 |
Surface treatment connection 1 | Untreated |
Length | 0mm |
Length of connection 1 | 0mm |
Nominal diameter connection 1 | DN 160 |
Wrench width union nut | 0mm |
Wall thickness, connection 1 | 0mm |
High tensile strength | No |
Connection 2 | Slide end |
Capped | No |
Material quality connection 1 | PVC-U |
Ring stiffness class | SN8 |
Model | 1-part |
Medium temperature (continuous) | 1 - 60 |
With drain valve | No |
Wrench width | 0mm |
Outer pipe diameter connection 1 | 160mm |
Surface protection connection 2 | Untreated |
Surface protection connection 1 | Untreated |
With de-aerator | No |
Wall thickness, connection 2 | 0mm |
Bend angle | 30° |
Surface treatment connection 2 | Untreated |
Standard Dimension Ratio (SDR) | 0 |
Connection 1 | Slide sleeve |
LPCB quality mark | No |
Max. operating pressure at max. medium temperature | 0bar |
Working length connection 1 | 557mm |
Working length connection 2 | 225mm |
