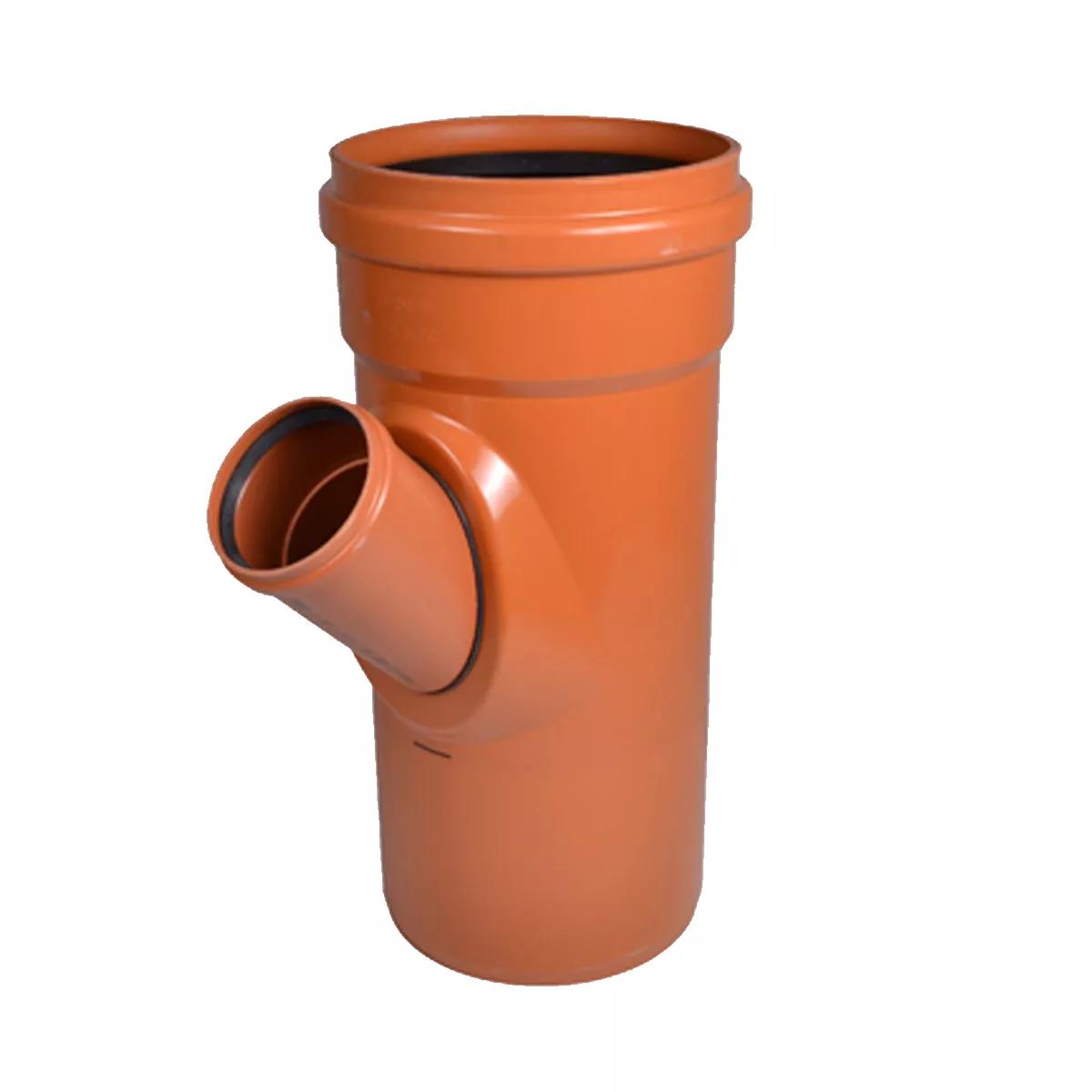

315/160/45° PVC trejgabals ār. kan.
Product Identifiers
EAN numurs4026294147531
SAP numurs3001634
| Label | Value |
|---|---|
| Wavin forma | Branches |
| Label | Value |
|---|---|
| ETIM Classification | EC003025 |
| Material quality connection 1 | PVC-U |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material quality connection 2 | PVC-U |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Material quality connection 3 | PVC-U |
| Surface protection connection 3 | Untreated |
| Surface treatment connection 3 | Untreated |
| Modelis | T-veida detaļa |
| Leņķis | 89° |
| Flow type | No |
| Samazināšana | Yes |
| Multi-part | No |
| Uz sistēmu orientēts | No |
| Nominal inner diameter connection 1 | DN 315 |
| Outer pipe diameter connection 1 | 315mm |
| Sienas biezums, savienojums 1 | 0mm |
| Savienojums 1 | Slide sleeve |
| Savienojuma 2 nominālais iekšējais diametrs | DN 160 |
| Outer pipe diameter connection 2 | 160mm |
| Sienas biezums, savienojums 2 | 0mm |
| Savienojums 2 | Slide sleeve |
| Savienojuma 3 nominālais iekšējais diametrs | DN 315 |
| External tube diameter of connection 3 | 315mm |
| Wall thickness, connection 3 | 0mm |
| Savienojums 3 | Spigot / tube end |
| Seal material | SBR |
| Main colour fitting | Orange |
| Savienojuma 1 garums | 141mm |
| Darba garums 1 | 160mm |
| Auksta stiepes izturība | No |
| Savienojuma 2 garums | 460mm |
| Darba garums 2 | 100mm |
| Savienojuma 3 garums | 485mm |
| Darba garums, savienojums 3 | 160mm |
| Uzgriežņa platums | 0mm |
| Swivel key size | 0mm |
| Max. operating pressure at max. medium temperature | 0.5bar |
| Maksimālais darba spiediens pie 20 C | 0.5bar |
| Ring stiffness class | SN4 |
| Standard Dimension Ratio (SDR) | 41.0000 |
| With packings | Yes |
| Ar drenāžu | No |
| Ar atgaisotāju | No |
| Ar siltumizolāciju | No |
| Ar bufera tapi | No |
| Ar vāku | No |
