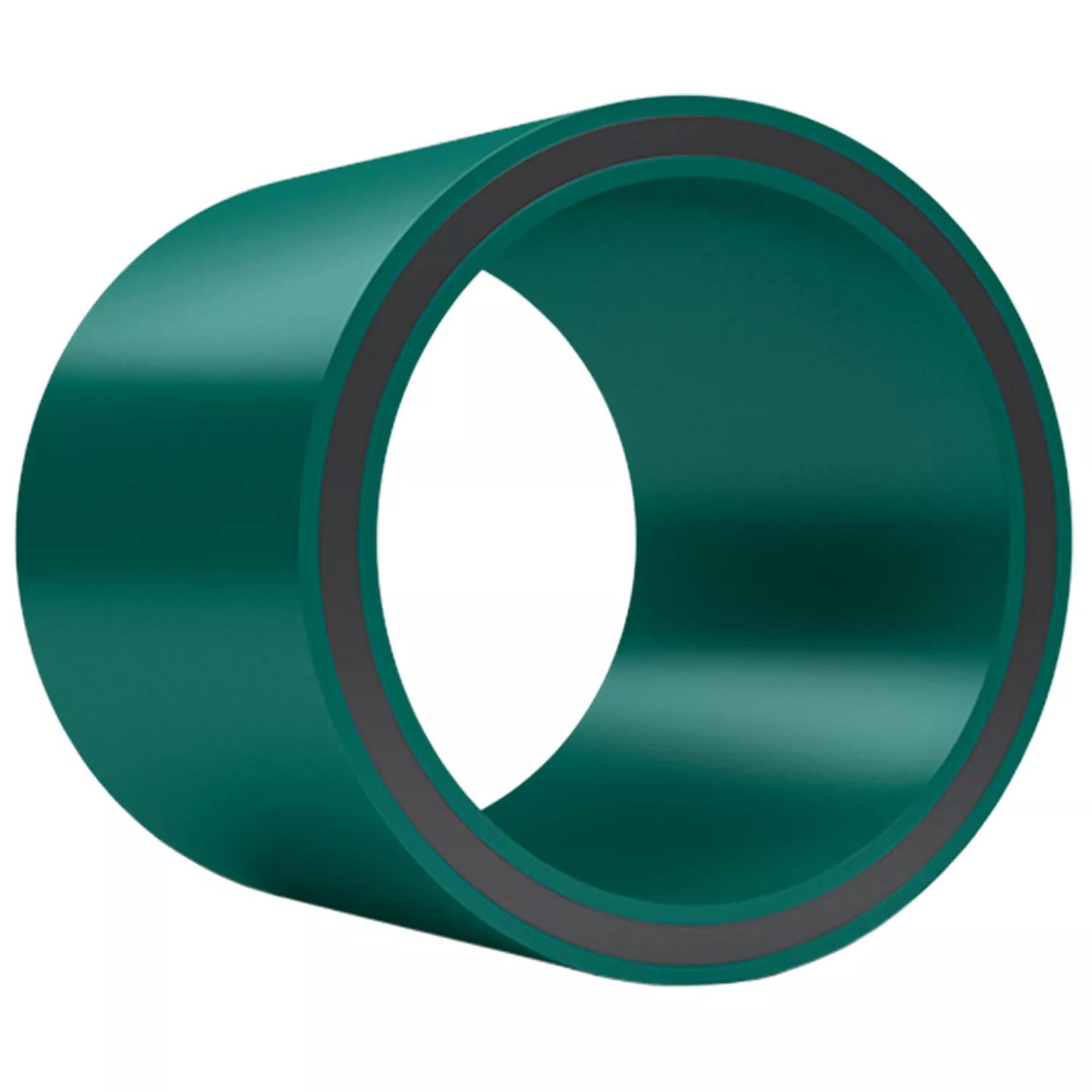

110x6,6 TS SDR17 PN10 kanal. caurule 12m
| 1 paka | 576 m |
|---|---|
| 1 gab | 12 m |
Product Identifiers
Wavin kataloga kods
EAN numurs4026294636356
SAP numurs3024396
| Label | Value |
|---|---|
ETIM Classification | EC010882 |
Material | Polietilēns (PE) |
Material quality | PE-100 |
Diffusion stop | No |
Nominal inner diameter | DN 100 |
Outer pipe diameter | 110mm |
WD | 6.6mm |
Savienojums 1 | Tube end |
Insert length connection 1 | 0mm |
Savienojums 2 | Tube end |
Insert length connection 2 | 0mm |
Article compression class | PN 10 |
Standard Dimension Ratio (SDR) | 17.0000 |
Max. operating pressure at max. medium temperature | 10bar |
Ar vāku | Yes |
Nošķelts | No |
Ar caurules uzmavu | No |
Caurules uzmavas ārējais diametrs | 0mm |
Cauruļu krāsa | Green |
RAL-number pipe | 6005.0000 |
Uzmavas starpliku skaits | 0.0000 |
Wall roughness | 0.007mm |
Izplešanās koeficients | 0.2mm/(m⋅K) |
Medium temperature | 0 - 40 |
Lambda value | 0.23W/(m⋅K) |
Elastīgs | Yes |
Minimālais lieces rādiuss | 0mm |
Min. bending radius without tools | 0mm |
Ar siltumizolāciju | No |
Outer diameter of thermal insulation | 0mm |
Siltumizolācijas biezums | 0mm |
Water content | 7.359l/m |
