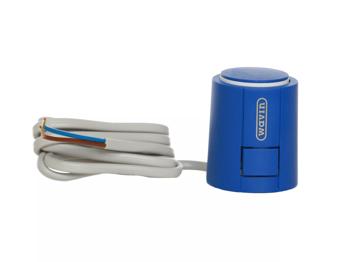

Wavin Actuator 24V NC VA50
Product Identifiers
Catalog Code
EAN Number5708525372293
NRF8371938
EL
NOB
SAP number4054937
| Label | Value |
|---|---|
| NRF | 8371938 |
| Label | Value |
|---|---|
| ETIM Classification | EC010193 |
| Model | Other |
| Connection to stop valve | M30 x 1.5 |
| Supply voltage | 24 V AC/DC |
| Control signal | Other |
| Function | Deactivated when closed NC |
| Automatic travel recognition | No |
| Protected against overvoltage | No |
| Auxiliary contacts | No |
| With end contacts | No |
| First open | Yes |
| With position indicator | Yes |
| Suitable for manual operation | No |
| Cable length | 1.2m |
| Operating time | 240s |
| Stroke length | 4mm |
| Self-adjusting travel length | No |
| Colour | Other |
| Ambient temperature | 60 |
| Nominal power | 0VA |
| Max. electric power input | 0VA |
| Degree of protection (IP) | IP54 |
| Length | 44mm |
| Width | 48mm |
| Height | 52mm |
| Diameter | 0mm |
