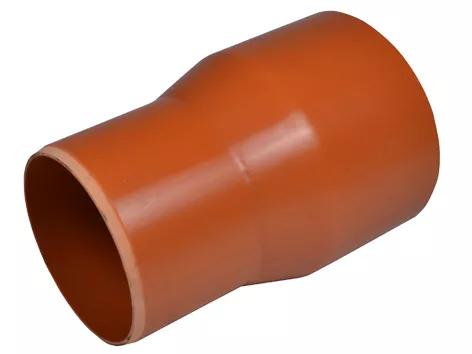

200/200 üleminek PVC/BET
| 1 kast | 8 tk |
|---|---|
| 1 pallet | 48 tk |
Product Identifiers
Wavin kataloogi kood
EAN number5708525026141
SAP number3022155
| 1 kast | 8 tk |
|---|---|
| 1 pallet | 48 tk |
| Label | Value |
|---|---|
Maksimaalne töörõhk 20 °C juures | 0bar |
Süsteemile orienteeritud | No |
Material quality connection 2 | PVC-U |
Ühendus 1 | Slide sleeve |
Outer pipe diameter connection 2 | 293mm |
Ekstsentriline | No |
Material quality connection 1 | PVC-U |
Ühenduse 1 pikkus | 118mm |
Mutri laius | 0mm |
Ühenduse 2 nominaalne sisemine läbimõõt | DN 200 |
Mudel | 1-part |
Zeta väärtus | 0.0000 |
Vähendamine | No |
Angle of bow | 0° |
LPCB kvaliteedimärk | No |
Surface treatment connection 1 | Untreated |
Main colour fitting | Orange |
Töö kestvus 1 | 118mm |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Töö kestvus 2 | 108mm |
Outer pipe diameter connection 1 | 200mm |
Standard Dimension Ratio (SDR) | 0.0000 |
Surface protection connection 1 | Untreated |
Ühenduse 2 pikkus | 157mm |
Kaanega | No |
Swivel key size | 0mm |
ETIM Classification | EC003024 |
Ring stiffness class | SN8 |
Max. operating pressure at max. medium temperature | 0bar |
Length | 280mm |
Ühendus 2 | Slide sleeve |
Õhutajaga | No |
Külm tõmbetugevus | No |
Drenaažiga | No |
FM kvaliteedimärk | No |
Seina paksus, ühendus 1 | 5.1mm |
Soojusisolatsiooniga | No |
Seina paksus ühendus 2 | 5.1mm |
Paindeulatus | 0mm |
Nominal inner diameter connection 1 | DN 200 |
