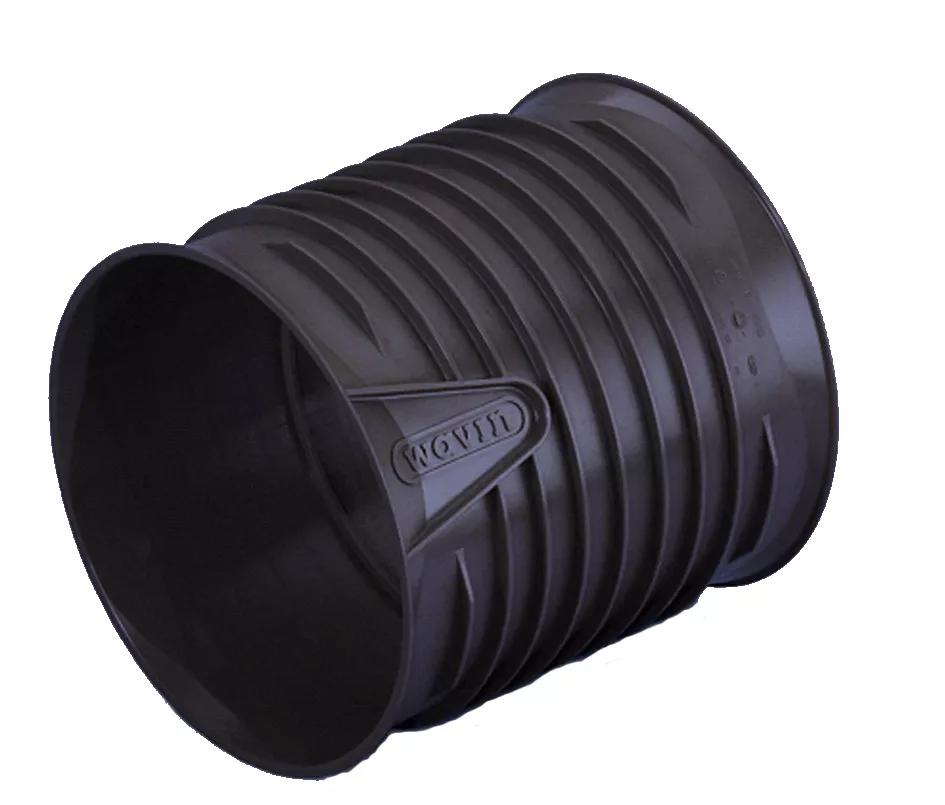

X-Stream PP Dbl.Socket Coupler BK 200
| 1 box | 4 PCE |
|---|---|
| 1 pallet | 32 PCE |
Product Identifiers
Catalog Code2572032
EAN Number5907444865095
VVS nr.198886200
DB nr.1443669
SAP number3065867
| 1 box | 4 PCE |
|---|---|
| 1 pallet | 32 PCE |
| Label | Value |
|---|---|
Medium temperature (continuous) | 1 - 75 |
High tensile strength | No |
Standard Dimension Ratio (SDR) | 0 |
Shape | Straight |
Length of connection 2 | 1mm |
Eccentric | No |
Length | 1mm |
Nominal diameter connection 1 | DN 200 |
Main colour fitting | Black |
System-specific | Yes |
Material quality connection 1 | PP-C |
With drain valve | No |
ULC quality mark | No |
Material connection 1 | Polypropylene (PP) |
Bend radius | 0mm |
With de-aerator | No |
With sealing rings/gaskets | No |
With buffer stud | No |
Model | 1-part |
Material quality connection 2 | PP-C |
Capped | No |
KIWA certified | Yes |
Wrench width | 0mm |
Outer pipe diameter connection 1 | 225mm |
Working length connection 1 | 0mm |
Surface treatment connection 2 | Untreated |
UL quality mark | No |
LPCB quality mark | No |
ETIM Classification | EC003024 |
Surface protection connection 2 | Untreated |
Surface treatment connection 1 | Untreated |
Outer pipe diameter connection 2 | 225mm |
Ring stiffness class | SN8 |
Length of connection 1 | 1mm |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
VdS quality mark | No |
Working length connection 2 | 0mm |
With thermal insulation | No |
Reducing | No |
Surface protection connection 1 | Untreated |
Bend angle | 0° |
Nominal diameter connection 2 | DN 200 |
Max. operating pressure at 20 °C | 0bar |
Wrench width union nut | 0mm |
Wall thickness, connection 2 | 1mm |
FM quality mark | No |
Zeta value | 1.2 |
Wall thickness, connection 1 | 1mm |
Material connection 2 | Polypropylene (PP) |
| Label | Value |
|---|---|
DB nr. | 1443669 |
VVS nr. | 198886200 |
