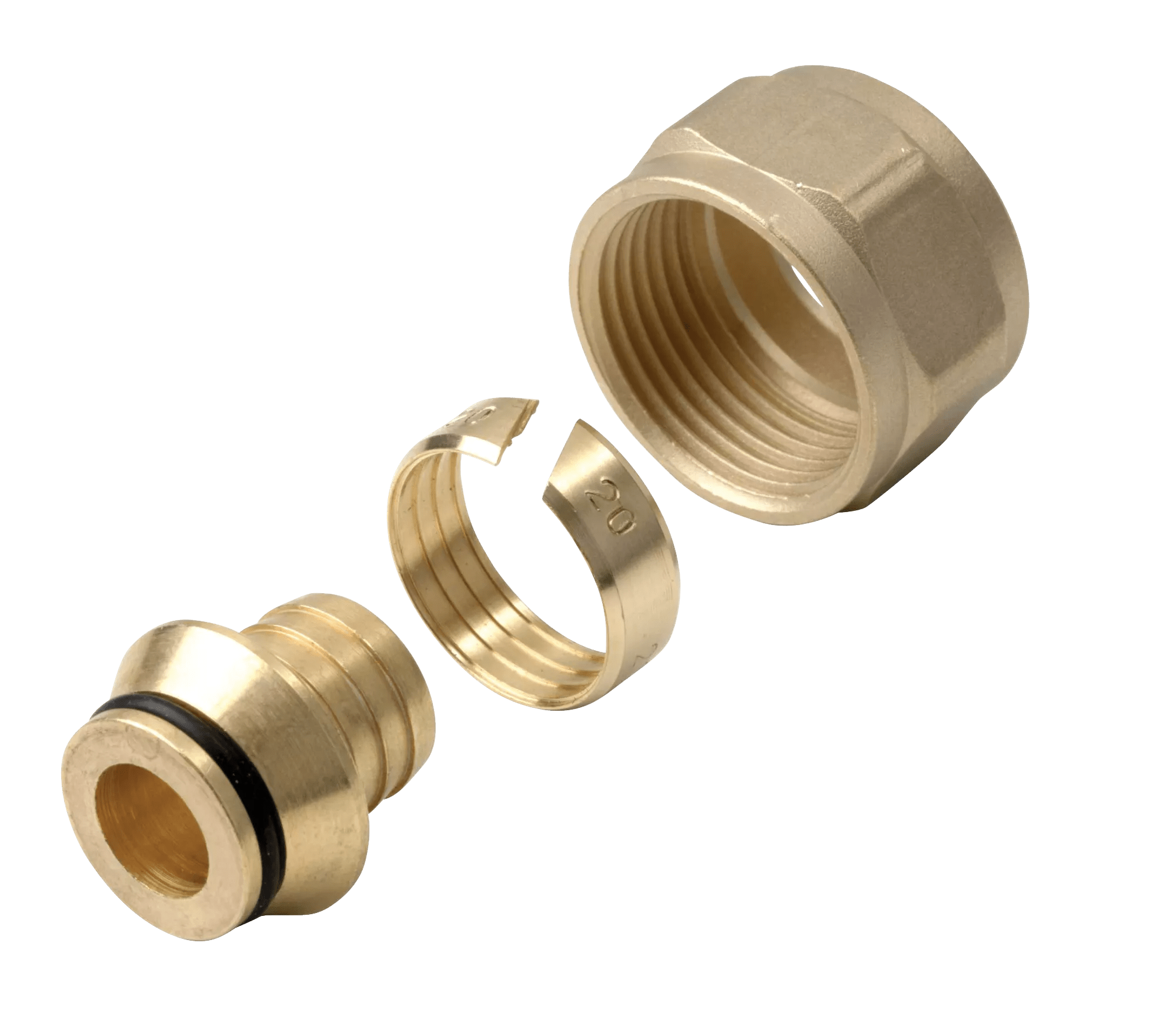

PERT/AL/PERT Connector 3/4" 20x2.25
| 1 box | 20 PCE |
|---|---|
| 1 pallet | 4800 PCE |
Product Identifiers
Catalog Code+0662220
EAN Number5708525408374
VVS nr.045447320
DB nr.
SAP number3059884
| 1 box | 20 PCE |
|---|---|
| 1 pallet | 4800 PCE |
| Label | Value |
|---|---|
VVS nr. | 045447320 |
| Label | Value |
|---|---|
Outer pipe diameter connection 1 | 0mm |
Nominal diameter connection 1 | DN 20 |
Surface treatment connection 2 | Untreated |
Surface protection connection 1 | Untreated |
KIWA certified | No |
Bend angle | 0° |
Material quality connection 2 | PP-R |
Contour code connection 2 | Other |
Outer pipe diameter connection 2 | 0mm |
Nominal diameter connection 2 | Other |
Capped | No |
With de-aerator | No |
With drain valve | No |
Gastec QA mark | No |
FM quality mark | No |
VdS quality mark | No |
Contour code connection 1 | Other |
Connection 2 | Welding connection |
Working length connection 1 | 0mm |
Surface protection connection 2 | Nickel-plated |
Length | 0mm |
Material sealing | Other |
Wrench width | 0mm |
High tensile strength | No |
Shape | Straight |
Medium temperature (continuous) | 0.010 - 70 |
Max. operating pressure at 20 °C | 0bar |
Length of connection 2 | 0mm |
Model | Other |
Length of connection 1 | 0mm |
Flange compression class (PN) | Other |
UL quality mark | No |
Material connection 1 | Polypropylene (PP) |
Material connection 2 | Brass |
System-specific | Yes |
Main colour fitting | Black |
Wall thickness, connection 1 | 0mm |
Bend radius | 0mm |
ETIM Classification | EC003024 |
Working length connection 2 | 0mm |
ULC quality mark | No |
Eccentric | No |
With buffer stud | No |
Reducing | Yes |
Wall thickness, connection 2 | 0mm |
Standard Dimension Ratio (SDR) | 5.0000 |
Wrench width union nut | 0mm |
With thermal insulation | No |
LPCB quality mark | No |
Zeta value | 0.0000 |
Material quality connection 1 | PP-R |
Surface treatment connection 1 | Untreated |
With sealing rings/gaskets | No |
