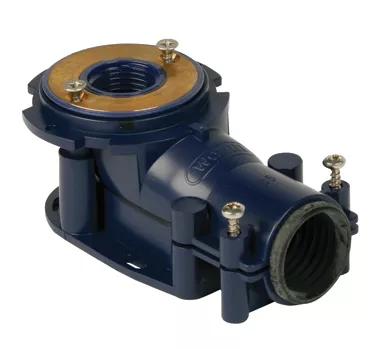

Tigris K5 16x1/2" Alupex Press Wallbox
Product Identifiers
Catalog Code+3085678
EAN Number5708525613914
VVS nr.088169014
SAP number3085678
Commercial
| Label | Value |
|---|---|
| VVS nr. | 088169014 |
| Label | Value |
|---|---|
| ETIM Classification | EC003099 |
| Material quality | Dezincification resistant brass (DZR) |
| Surface protection | Untreated |
| Shape | Right-angled |
| System-specific | Yes |
| Nominal diameter connection 1 | 1/2 inch (15) |
| Outer pipe diameter connection 1 | 0mm |
| Outer pipe diameter connection 2 | 0mm |
| Connection | Press sleeve |
| Thread size tap connection | 1/2 inch |
| Length of connection 1 | 0mm |
| Working length connection 1 | 0mm |
| Length of connection 2 | 0mm |
| Working length connection 2 | 0mm |
| Length from wall plate | 0mm |
| Length of connection 3 | 0mm |
| Working length connection 3 | 0mm |
| Max. operating pressure at 20 °C | 10bar |
| Zeta value | 0.0000 |
| Contour code | U |
| Zeta value branch fluent separation according to DVGW W 575 | 0.0000 |
| Zeta value gangway current separation according to DVGW W 575 | 0.0000 |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | Yes |
| KIWA certified | No |
