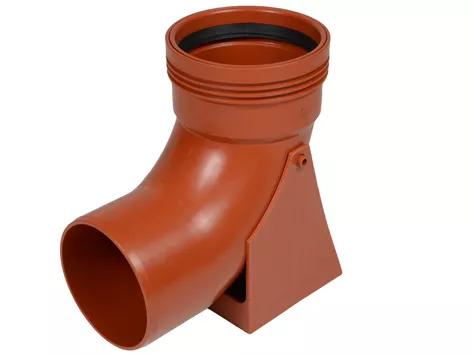

Wafix PP Foot Bend RD 110x88
Product Identifiers
Catalog Code+1553710
EAN Number5708525165277
VVS nr.195093110
DB nr.1574409
SAP number3062213
| Label | Value |
|---|---|
| VVS nr. | 195093110 |
| DB nr. | 1574409 |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polypropylene (PP) |
| Material quality connection 1 | PP-C |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polypropylene (PP) |
| Material quality connection 2 | PP-C |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Bend |
| Model | 1-part |
| Bend angle | 88° |
| Bend radius | 0mm |
| Reducing | No |
| Eccentric | No |
| System-specific | No |
| Nominal diameter connection 1 | DN 110 |
| Outer pipe diameter connection 1 | 110mm |
| Wall thickness, connection 1 | 3.2mm |
| Connection 1 | Slide sleeve |
| Nominal diameter connection 2 | DN 110 |
| Outer pipe diameter connection 2 | 110mm |
| Wall thickness, connection 2 | 3.7mm |
| Connection 2 | Slide sleeve |
| Main colour fitting | Orange |
| Material sealing | Thermoplastic elastomer (TPE) |
| Zeta value | 0.0000 |
| High tensile strength | No |
| Length | 227mm |
| Length of connection 1 | 155mm |
| Working length connection 1 | 92mm |
| Length of connection 2 | 162mm |
| Working length connection 2 | 94mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 0.010 - 90 |
| Max. operating pressure at 20 °C | 0.5bar |
| Max. operating pressure at max. medium temperature | 0.5bar |
| With thermal insulation | No |
| Ring stiffness class | Other |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | Yes |
| Capped | No |
| With drain valve | No |
| FM quality mark | No |
| LPCB quality mark | No |
| DIN-CERTCO certificate | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Gastec QA mark | No |
| Type approval according to BBR/EKS | No |
