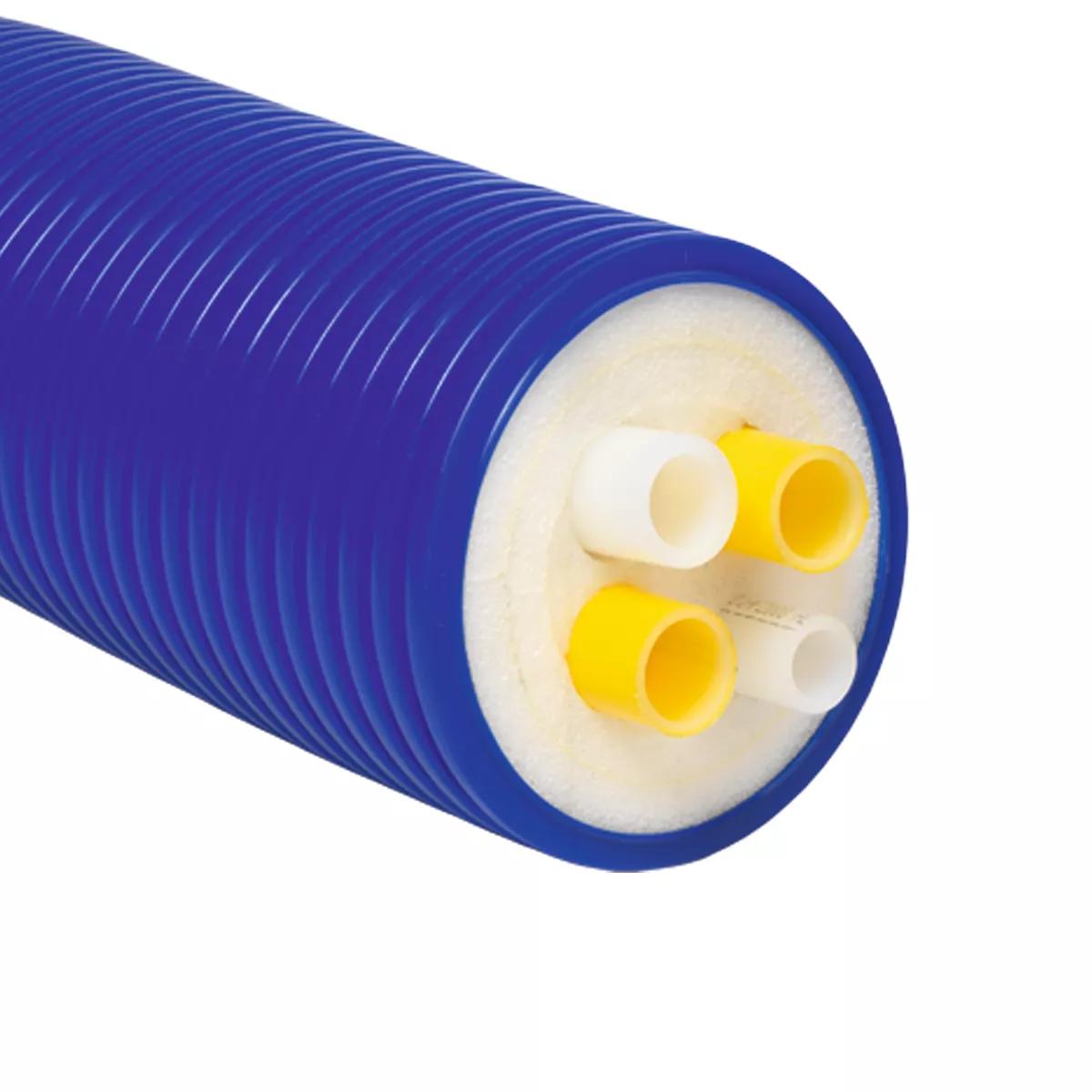

SuperFlex Quadro BL 2x32+32+18x160 L=100
Product Identifiers
Catalog Code+0624219
EAN Number5708525441074
VVS nr.087818732
DB nr.
SAP number4054625
Commercial
| Label | Value |
|---|---|
| VVS nr. | 087818732 |
| Label | Value |
|---|---|
| ETIM Classification | EC011704 |
| Number of inner pipes | 2.0000 |
| Material inner pipe | Other |
| Diffusion-proof | Yes |
| Diameter inner pipe | 32mm |
| Wall thickness inner pipe | 2.9mm |
| Diameter inner pipe 2 | 32mm |
| Wall thickness inner pipe 2 | 2.9mm |
| Diameter inner pipe 3 | 18mm |
| Wall thickness inner pipe 3 | 4.4mm |
| Diameter inner pipe 4 | 18mm |
| Wall thickness inner pipe 4 | 2.5mm |
| Colour inner pipe | Other |
| With mantle pipe | No |
| Outer diameter mantle pipe | 160mm |
| Wall thickness mantle pipe | 0mm |
| Material mantle pipe | HDPE |
| Colour mantle pipe | Blue |
| Insulating material | Polyethylene (PE) |
| Thermal conductivity | 0.235W/(m⋅K) |
| With heating cable | No |
| Standard Dimension Ratio (SDR) | 7.4000 |
| Min. bending radius | 600mm |
| Max. operating pressure at 20 °C | 24bar |
| Max. medium temperature (continuous) | 80°C |
| Max. medium temperature (momentarily) | 95°C |
