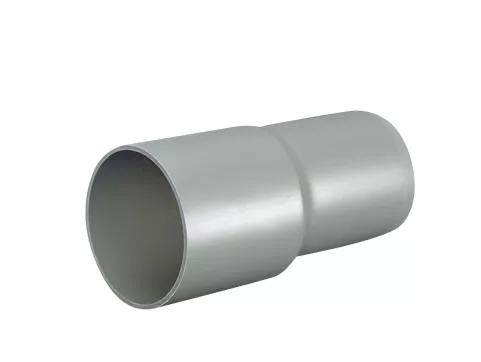

Wafix PP WC Connector 110 Long
| 1 box | 8 PCE |
|---|---|
| 1 pallet | 192 PCE |
Product Identifiers
Catalog Code+1451542
EAN Number5708525151904
VVS nr.186672110
DB nr.5860847
SAP number3062055
Commercial
| Label | Value |
|---|---|
VVS nr. | 186672110 |
DB nr. | 5860847 |
| Label | Value |
|---|---|
ETIM Classification | EC003024 |
Material connection 1 | Polypropylene (PP) |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Polypropylene (PP) |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Straight |
Model | 1-part |
Bend angle | 0° |
Bend radius | 0mm |
Reducing | No |
Eccentric | No |
System-specific | No |
Nominal diameter connection 1 | DN 110 |
Outer pipe diameter connection 1 | 110mm |
Wall thickness, connection 1 | 3.4mm |
Connection 1 | Spigot / tube end |
Nominal diameter connection 2 | DN 110 |
Outer pipe diameter connection 2 | 110mm |
Wall thickness, connection 2 | 3.4mm |
Connection 2 | Slide sleeve |
Main colour fitting | Grey |
Material sealing | Thermoplastic elastomer (TPE) |
With buffer stud | Yes |
Zeta value | 0.0000 |
High tensile strength | No |
Length | 271mm |
Length of connection 1 | 126.7mm |
Working length connection 1 | 126.7mm |
Length of connection 2 | 125.5mm |
Working length connection 2 | 125.5mm |
Wrench width | 0mm |
Wrench width union nut | 0mm |
Medium temperature (continuous) | 1 - 100°C |
Max. operating pressure at 20 °C | 0bar |
Max. operating pressure at max. medium temperature | 0bar |
With thermal insulation | No |
Standard Dimension Ratio (SDR) | 0.0000 |
With sealing rings/gaskets | No |
Capped | No |
With drain valve | No |
With de-aerator | No |
FM quality mark | No |
LPCB quality mark | No |
KIWA certified | No |
