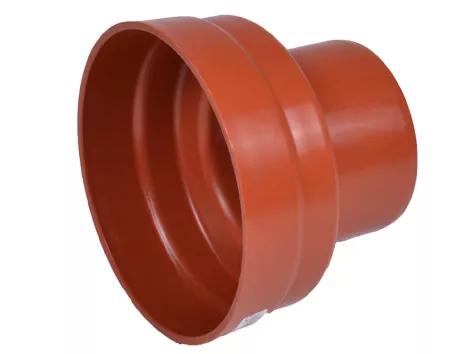

PVCU Adaptor ConcretePipe BR 160
Product Identifiers
Catalog Code+1551403
EAN Number5708525160043
VVS nr.195089160
DB nr.1049238
SAP number3022154
| Label | Value |
|---|---|
| Wavin Shape | Connector |
| VVS nr. | 195089160 |
| DB nr. | 1049238 |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polyvinyl chloride (PVC) |
| Material quality connection 1 | PVC-U |
| Surface protection connection 1 | Other |
| Surface treatment connection 1 | Other |
| Material connection 2 | Polyvinyl chloride (PVC) |
| Material quality connection 2 | PVC-U |
| Surface protection connection 2 | Other |
| Surface treatment connection 2 | Other |
| Shape | Straight |
| Model | 1-part |
| Bend angle | 0° |
| Bend radius | 0mm |
| Reducing | Yes |
| Eccentric | No |
| System-specific | No |
| Nominal diameter connection 1 | Other |
| Outer pipe diameter connection 1 | 225mm |
| Wall thickness, connection 1 | 0mm |
| Connection 1 | Slide sleeve |
| Contour code connection 1 | Other |
| Nominal diameter connection 2 | DN 160 |
| Outer pipe diameter connection 2 | 160mm |
| Wall thickness, connection 2 | 0mm |
| Connection 2 | Slide sleeve |
| Contour code connection 2 | Other |
| Main colour fitting | Black |
| Flange compression class | Other |
| Material sealing | Other |
| With buffer stud | No |
| Zeta value | 0.0000 |
| High tensile strength | No |
| Length | 228mm |
| Length of connection 1 | 49mm |
| Working length connection 1 | 49mm |
| Length of connection 2 | 87mm |
| Working length connection 2 | 87mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Max. operating pressure at 20 °C | 0bar |
| With thermal insulation | No |
| Ring stiffness class | Other |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | Yes |
| Capped | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| KIWA certified | No |
| Gastec QA mark | No |
