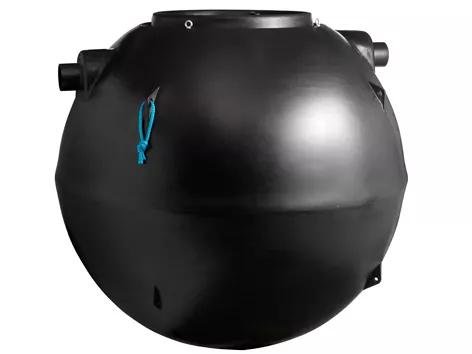

EuroHEK Omega PE Sand sep. 4000/200
Product Identifiers
Catalog Code+8511526
EAN Number5708525323509
VVS nr.223200542
DB nr.1392213
SAP number3065072
Commercial
| Label | Value |
|---|---|
| VVS nr. | 223200542 |
| DB nr. | 1392213 |
| Label | Value |
|---|---|
| ETIM Classification | EC010569 |
| Material pit | Other |
| Material quality pit | Polyethylene (PE) |
| Material cover | Cast iron |
| Cover load | 400kN |
| Suitable for fat (organic) | No |
| Suitable for oil (mineral) | Yes |
| Suitable for heavy metals | Yes |
| Suitable for bath/shower sewage | No |
| Suitable for kitchen sewage | No |
| Suitable for wash sewage | No |
| Suitable for water toilet sewage | No |
| Suitable for indoor installation | No |
| Suitable for outdoor installation | Yes |
| Connections | Slide end |
| Nominal diameter all connections | DN 200 |
| Outer pipe diameter all connections | 200mm |
| Inner cladding | None |
| Outer lining | None |
| With mud trap | Yes |
| Collection capacity, mud trap | 4000l |
| Volume class | 0m³ |
| Wet volume | 4000l |
| Design capacity (number of persons) | 0 |
| Flow-through capacity | 0l/s |
| Number of free openings | 1.0000 |
| Dimension free opening | 600mm |
| With drainage device | No |
| With automatic filling function | No |
| Alarm output | No |
| With sampling probe | No |
| Drain connection height | 1730mm |
| Height, overflow brim | 1650mm |
| Diameter | 2170mm |
| Length | 2170mm |
| Width | 2170mm |
| Height | 2100mm |
| Built-in depth | 2500 |
