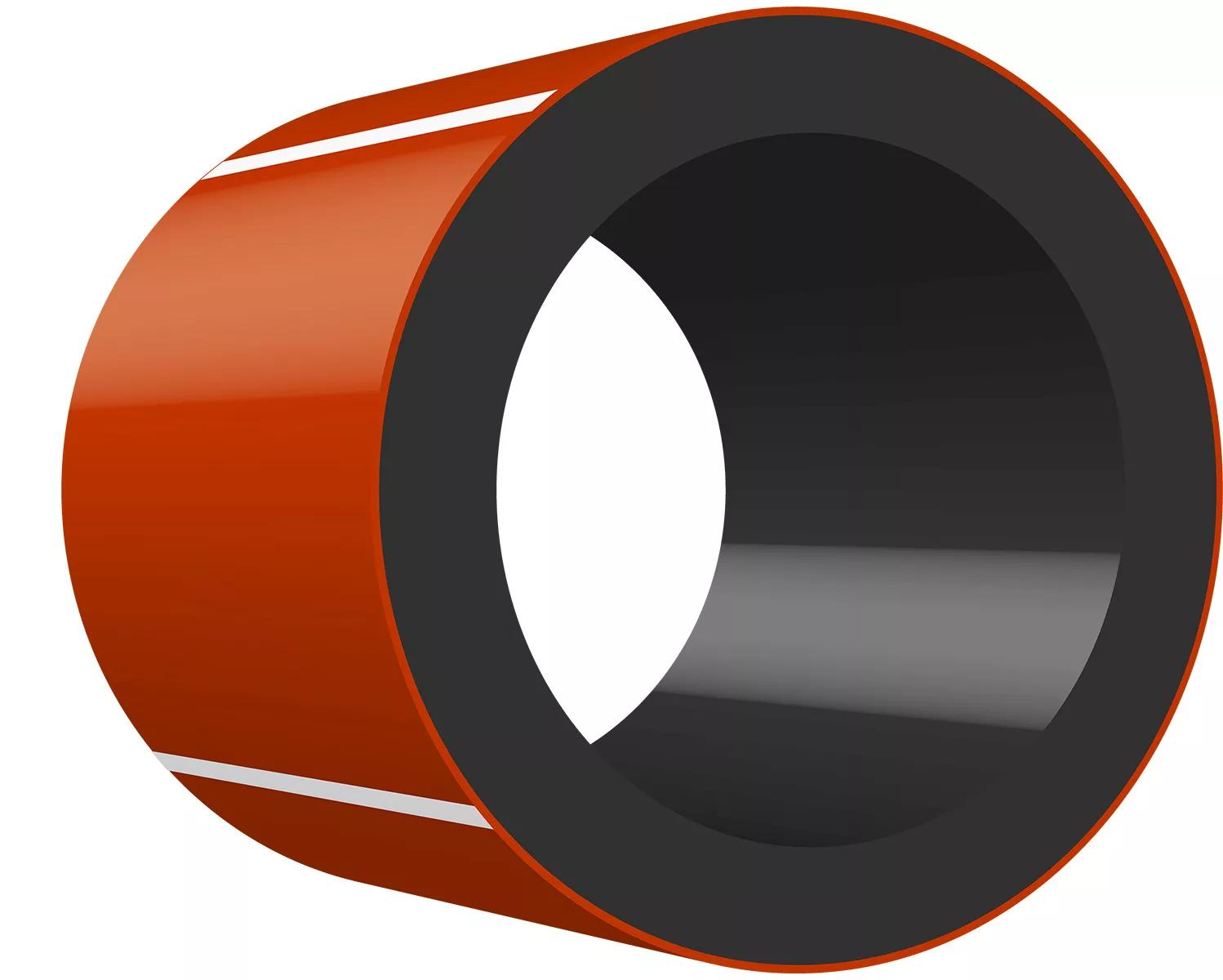

PE100 PLUS RD 90 SDR17 PN10 L=12
Product Identifiers
Catalog Code+2914148
EAN Number5708525462321
VVS nr.071137090
DB nr.1730026
SAP number3063187
Commercial
| Label | Value |
|---|---|
| DB nr. | 1730026 |
| VVS nr. | 071137090 |
| Label | Value |
|---|---|
| ETIM Classification | EC010882 |
| Material | Polyethylene (PE) |
| Material quality | PE-100 |
| Diffusion-proof | No |
| Nominal diameter | Other |
| Outer pipe diameter | 90mm |
| Wall thickness | 5.4mm |
| Connection 1 | Tube end |
| Insert length connection 1 | 0mm |
| Connection 2 | Tube end |
| Insert length connection 2 | 0mm |
| Article compression class | PN 10 |
| Standard Dimension Ratio (SDR) | 17.0000 |
| Capped | Yes |
| Chamfered | No |
| Outer diameter mantle pipe | 0mm |
| Pipe colour | Red |
| RAL-number pipe | 0.0000 |
| Number of sealing rings, sleeve | 0.0000 |
| Wall roughness | 0.007mm |
| Expansion coefficient | 0.2mm/(m⋅K) |
| Lambda value | 0.4W/(m⋅K) |
| Flexible | Yes |
| Min. bending radius | 0mm |
| Min. bending radius without tools | 0mm |
| Medium temperature | 0 - 40 |
| Max. operating pressure at max. medium temperature | 0bar |
| With thermal insulation | No |
| Outer diameter thermal insulation | 0mm |
| Thickness of thermal insulation | 0mm |
| Water content | 4.927l/m |
| With heating cable | No |
